Lamborghini Diablo VT (1993-1998) - Climate Control 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

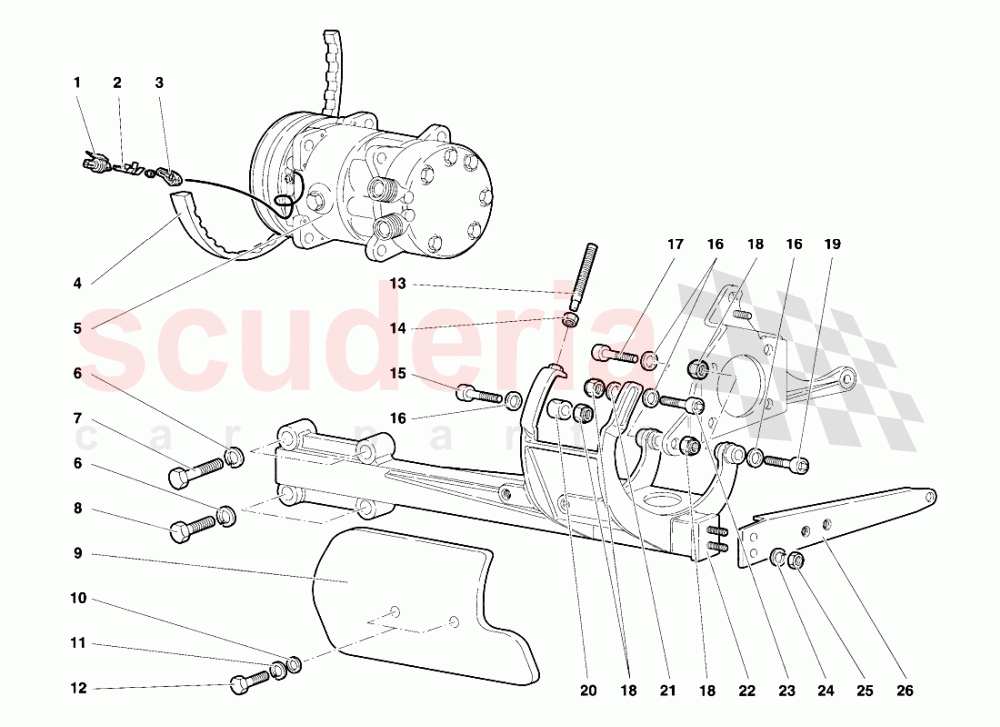

Climate Control 1 of Lamborghini Lamborghini Diablo VT (1993-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6132546
CONNECTION
CONNESSIONE 		$18.05 1
002 6132584
KEY
LINGUETTA 		$7.93 1
003 6133204
CLIP
FERMAGLIO 		$0.68 1
004 4534071
BELT
CINGHIA 		$428.46 1
005 4530198
AIR COMPRESSOR
COMPRESSORE 		$1,592.24 1
006 N0152785
WASHER
RONDELLA 		$0.40 4
007 WHT002952
SCREW M8X1,25X30
VITE 		$4.98 2
008 N01033520
SCREW M8X35
VITE 		$1.55 (78.4% off) 2
009 4532221
SHIELD
PROTEZIONE 		$848.62 1
010 N01152427
WASHER
RONDELLA 		$0.28 2
011 WHT003053
WASHER
RONDELLA 		$3.24 2
012 8100620
Bolt
VITE 		$5.82 (3% off) 2
013 8700841
SCREW
VITE 		$2.23 (5.1% off) 1
014 N01100845
HEXAGON NUT
DADO 		$1.89 1
015 8701020
SCREW
VITE 		$1.55 (78.3% off) 1
016 WHT000768
WASHER 		$1.96 (73.1% off) 4
017 N10667901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
VITE 		$3.05 1
018 8201008
NUT
DADO 		$0.80 (89% off) 4
019 8701014
SCREW
VITE 		$0.34 (95.4% off) 1
020 4529646
SPACER
DISTANZIALE 		$24.78 (1.1% off) 1
021 N0122115
WASHER
RONDELLA 		$0.80 (89% off) 1
022 4529535
SUPPORT - SUPPORTO
O 		$1,308.92 1
023 8701017
SCREW
VITE 		$0.95 (86.9% off) 1
024 N0152785
WASHER
RONDELLA 		$0.40 2
025 N01100845
HEXAGON NUT
DADO 		$1.89 2
026 4529645
TIE ROD
TIRANTE 		$395.79 1
