Engine Oil Breathing System of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

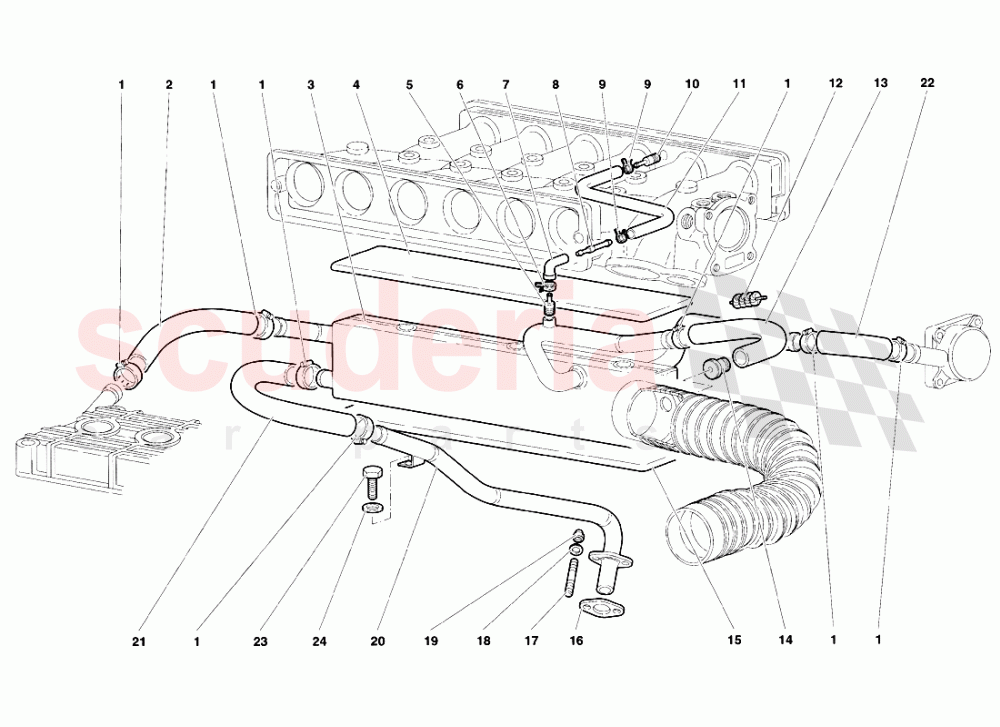

Lamborghini Diablo VT (1993-1998) - Engine Oil Breathing System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$44.10	7
002	1533391	PIPE	1533391 PIPE TUBO	$116.84	1
003	1533385	TANK	1533385 TANK SERBATOIO	$581.90	1
004	1533448	INSULATOR	1533448 INSULATOR ISOLANTE	$36.12	1
005	1333446	CONNECTION	1333446 CONNECTION RACCORDO	$69.12	1
006	8830122	CLAMP	8830122 CLAMP FASCETTA	$0.34 MSRP: ~~7.33~~ (95.4% off)	1
007	7L131756	CONNECTOR	7L131756 CONNECTOR RACCORDO 90 -	$28.32	1
008	1329319	ADAPTER	1329319 ADAPTER RACCORDO	$1.17 MSRP: ~~7.18~~ (83.7% off)	1
009	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	2
010	1333446	CONNECTION	1333446 CONNECTION RACCORDO	$69.12	1
011	1333445	PIPE	1333445 PIPE TUBO	$15.35	1
012	1532768	FLAME TRAP	1532768 FLAME TRAP SPEGNIFIAMMA	$24.51 MSRP: ~~24.80~~ (1.2% off)	1
013	1533775	PIPE	1533775 PIPE TUBO	$121.89	1
014	1333773	CONNECTION	1333773 CONNECTION RACCORDO	$24.13 MSRP: ~~24.40~~ (1.1% off)	1
015	1533447	INSULATOR	1533447 INSULATOR ISOLANTE	$78.52	1
016	1831058	GASKET	1831058 GASKET GUARNIZIONE	$23.09	1
017	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	2
018	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
019	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	2
020	1532643	PIPE	1532643 PIPE TUBO	$73.72	1
021	1532654	PIPE	1532654 PIPE TUBO	$80.65	1
022	1533390	PIPE	1533390 PIPE TUBO	$155.62	1
023	8100601	SCREW	8100601 SCREW VITE	$0.27	1
024	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.24	1
