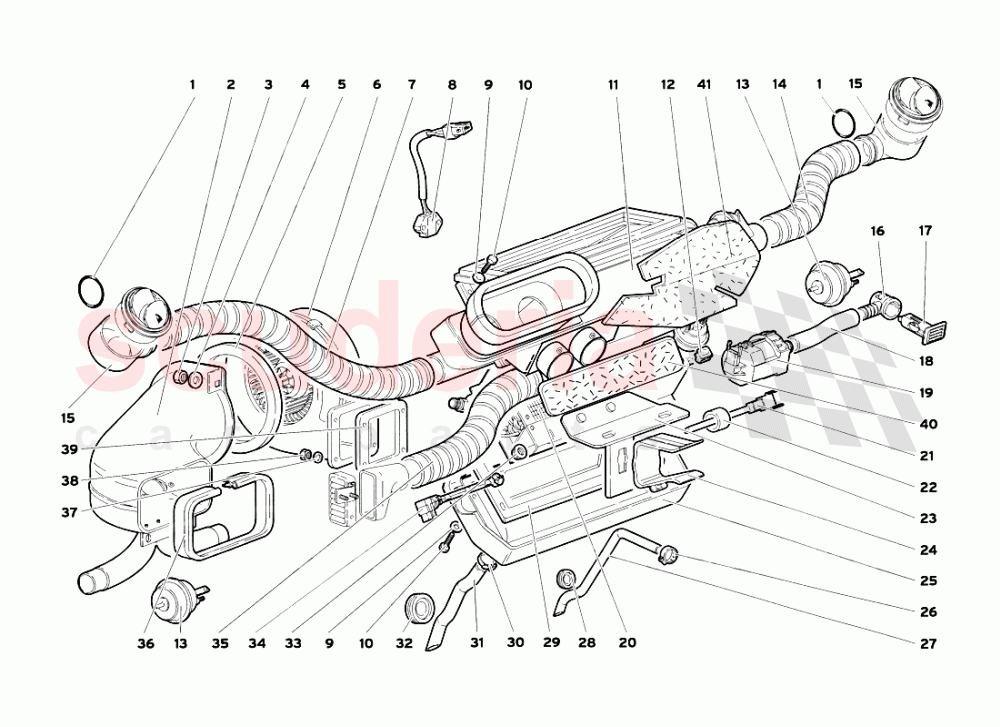

Lamborghini Diablo SV (1999) - Climate Control 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8604401	SEAL	8604401 SEAL ANELLO TENUTA	-	2	Enquire
002	9453182	CONVEYOR	9453182 CONVEYOR CONVOGLIATORE	-	1	Enquire
003	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	3	Enquire
004	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	3	Enquire
005	9490202	GASKET	9490202 GASKET GUARNIZIONE	-	1	Enquire
006	4537176	ELECTROFAN	4537176 ELECTROFAN ELETTROVENTILATORE	-	1	Enquire
007	9414546	PIPE	9414546 PIPE TUBO	-	1	Enquire
008	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMP. ESTERNA	-	1	Enquire
009	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	8	Enquire
010	8100502	SCREW	8100502 SCREW VITE	-	8	Enquire
011	69003353	CONVEYOR	69003353 CONVEYOR CONVOGLIATORE	-	1	Enquire
012	8220503	CLIP	8220503 CLIP MOLLETTA	-	8	Enquire
013	9414548	CONTROL	9414548 CONTROL ATTUATORE	-	6	Enquire
014	9414544	PIPE	9414544 PIPE TUBO	-	1	Enquire
015	7014135	CONNECTION	7014135 CONNECTION RACCORDO	-	2	Enquire
016	4526666	CONNECTION	4526666 CONNECTION RACCORDO	-	1	Enquire
017	4526661	TEMPERATURE SENS.	4526661 TEMPERATURE SENS. SENSORE TEMP. ABITACOLO	-	1	Enquire
018	6032223	PIPE	6032223 PIPE TUBO	-	1	Enquire
019	4526665	ELECTROFAN	4526665 ELECTROFAN ELETTROVENTOLA	-	1	Enquire
020	4535410	EVAPORATOR - EVAPORATORE - RISCALDATORE	4535410 EVAPORATOR - EVAPORATORE - RISCALDATORE E - RISCALDATORE	-	1	Enquire
021	4526663	TEMPERATURE SENS.	4526663 TEMPERATURE SENS. SENSORE TEMPERATURA	-	1	Enquire
022	4532839	PIPE	4532839 PIPE PROTEZIONE	-	1	Enquire
023	5931538	SUPPORT - SUPPORTO	5931538 SUPPORT - SUPPORTO O	-	1	Enquire
024	5931539	SUPPORT - SUPPORTO RADIO	5931539 SUPPORT - SUPPORTO RADIO O RADIO	-	1	Enquire
025	9414505	CONVEYOR	9414505 CONVEYOR CONVOGLIATORE	-	1	Enquire
026	N0245097	CLAMP	N0245097 CLAMP FASCETTA	-	1	Enquire
027	9414537	PIPE	9414537 PIPE TUBO SCARICO	-	1	Enquire
028	8612804	RUBBER RING	8612804 RUBBER RING GUARNIZIONE	-	1	Enquire
029	9490203	GASKET	9490203 GASKET GUARNIZIONE	-	1	Enquire
030	8832806	STRAP	8832806 STRAP FASCETTA	-	1	Enquire
031	9414540	PIPE	9414540 PIPE TUBO SCARICO	-	1	Enquire
032	8611606	GASKET	8611606 GASKET GUARNIZIONE	-	1	Enquire
033	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	2	Enquire
034	4526664	TEMPERATURE SENS.	4526664 TEMPERATURE SENS. SENSORE TEMP. ARIA	-	1	Enquire
035	9414544	PIPE	9414544 PIPE TUBO	-	1	Enquire
036	9490201	GASKET	9490201 GASKET GUARNIZIONE	-	1	Enquire
037	8400401	WASHER	8400401 WASHER RONDELLA	-	4	Enquire
038	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	-	4	Enquire
039	4731661	GASKET	4731661 GASKET GUARNIZIONE	-	1	Enquire
040	69004894	COVERING	69004894 COVERING RIVESTIMENTO	-	1	Enquire
041	69005078	COVERING	69005078 COVERING RIVESTIMENTO	-	1	Enquire
