Water Pump of Lamborghini Lamborghini Diablo SV (1999)

View All

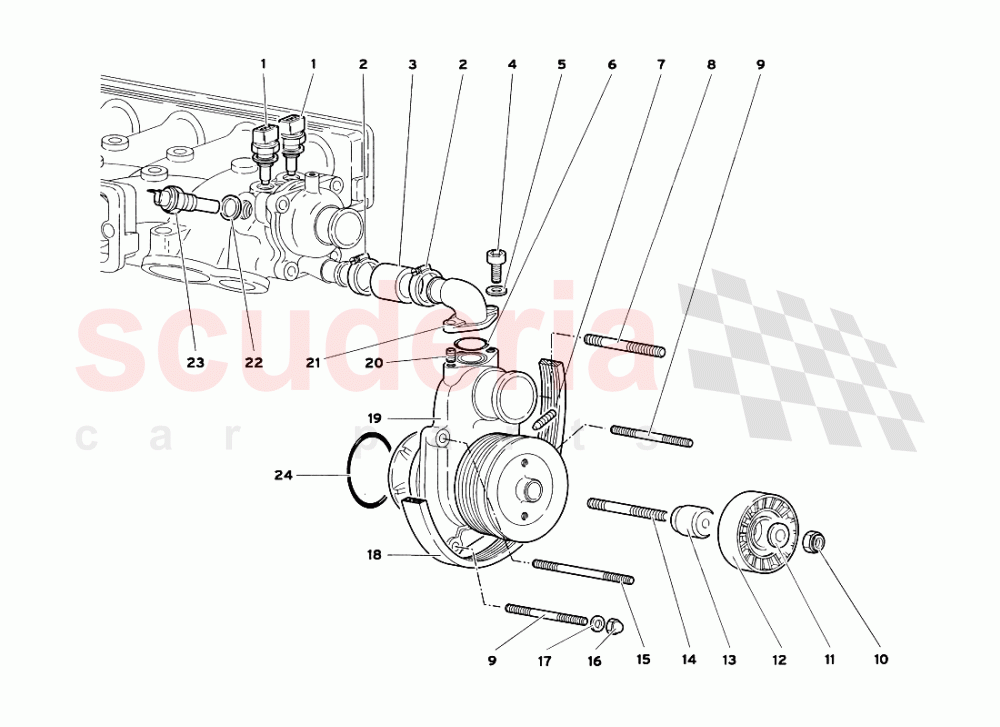

Lamborghini Diablo SV (1999) - Water Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7L919501A	Water Temperature Sensor	7L919501A Water Temperature Sensor SENSORE TEMP. ACQUA	-	2	Enquire
002	8832604	STRAP	8832604 STRAP FASCETTA	-	2	Enquire
003	1732811	PIPE	1732811 PIPE TUBO	-	1	Enquire
004	8700617	SCREW	8700617 SCREW VITE	-	2	Enquire
005	8410602	WASHER	8410602 WASHER RONDELLA	-	2	Enquire
006	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	-	1	Enquire
007	8700650	SCREW	8700650 SCREW VITE	-	1	Enquire
008	8301034	STUD	8301034 STUD PRIGIONIERO	-	1	Enquire
009	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	2	Enquire
010	8201008	NUT	8201008 NUT DADO	-	1	Enquire
011	N0122094	WASHER	N0122094 WASHER RONDELLA	-	1	Enquire
012	7M109565	PULLEY	7M109565 PULLEY PULEGGIA	-	1	Enquire
013	1237082	BUSHING	1237082 BUSHING BUSSOLA	-	1	Enquire
014	8301034	STUD	8301034 STUD PRIGIONIERO	-	1	Enquire
015	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	-	1	Enquire
016	8200809	NUT	8200809 NUT DADO	-	3	Enquire
017	N0122094	WASHER	N0122094 WASHER RONDELLA	-	3	Enquire
018	1736516	TRANS BELT	1736516 TRANS BELT WATER PUMP, ALTERNATOR & POWER STEERING	-	1	Enquire
019	17001862	WATER PUMP	17001862 WATER PUMP POMPA ACQUA	-	1	Enquire
020	8840601	HELI-COIL	8840601 HELI-COIL	-	2	Enquire
021	1732803	CONNECTION	1732803 CONNECTION RACCORDO	-	1	Enquire
022	8401408	WASHER	8401408 WASHER RONDELLA	-	1	Enquire
023	1724221	THERMOCOUPLE	1724221 THERMOCOUPLE TERMOCOPPIA	-	1	Enquire
024	WHT003018	SEAL RING	WHT003018 SEAL RING ANELLO Dl TENUTA	-	1	Enquire
