Radiators and Electro-Fans of Lamborghini Lamborghini Diablo SV (1999)

View All

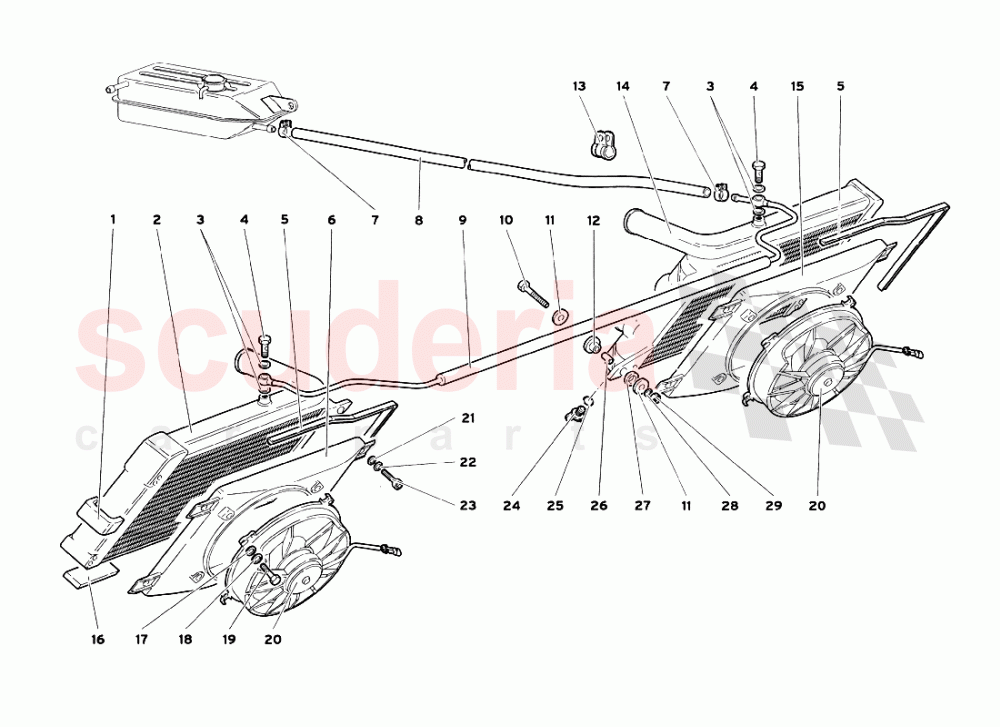

Lamborghini Diablo SV (1999) - Radiators and Electro-Fans

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1733004	GASKET	1733004 GASKET PROTEZIONE	$21.65 MSRP: ~~22.55~~ (4% off)	4
002	1735035	LH RADIATOR	1735035 LH RADIATOR	$3,133.78	1
003	8400818	WASHER	8400818 WASHER RONDELLA	-	4	Enquire
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$24.66	2
005	410121539	GASKET	410121539 GASKET GUARNIZIONE	$57.85	2
006	410121333	LEFT CONVEYOR	410121333 LEFT CONVEYOR CONVOGLIATORE SX	$443.55	1
007	8830817	CLAMP	8830817 CLAMP FASCETTA	$2.20	2
008	1735264	PIPE	1735264 PIPE TUBO	$16.70 MSRP: ~~16.90~~ (1.2% off)	1
009	1738038	VENT PIPE	1738038 VENT PIPE TUBO Dl SFIATO	-	1	Enquire
010	8100824	SCREW	8100824 SCREW VITE	$1.38 MSRP: ~~7.13~~ (80.6% off)	4
011	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.30	8
012	1733266	RUBBER BUSHING	1733266 RUBBER BUSHING BOCCOLA COMMA	$7.25	4
013	8831515	CLAMP	8831515 CLAMP FASCETTA	$10.01	1
014	1735034	RH RADIATOR	1735034 RH RADIATOR	$3,133.78	1
015	410121334A	RH CONVEYOR	410121334A RH CONVEYOR CONVOGLIATORE DX	$1,599.47	1
016	1731451	GASKET	1731451 GASKET PROTEZIONE	$14.65 MSRP: ~~14.85~~ (1.3% off)	2
017	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
018	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	8
019	8100502	SCREW IN STOCK	8100502 SCREW VITE IN STOCK	$0.16	8
020	17017063	ELECTROFAN	17017063 ELECTROFAN ELETTROVENTILATORE	$1,074.44	2
021	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	8
022	WHT003213	WASHER	WHT003213 WASHER RONDELLA	$1.34 MSRP: ~~7.15~~ (81.3% off)	8
023	8700644	SCREW	8700644 SCREW VITE	$0.37 MSRP: ~~7.34~~ (95% off)	8
024	410121299	PLUG	410121299 PLUG TAPPO	$231.85	2
025	8600905	SEAL RING	8600905 SEAL RING ANELLO TENUTA	$9.49 MSRP: ~~9.85~~ (3.7% off)	2
026	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE BOCCOLA	$10.37	4
027	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$6.27	4
028	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
029	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
