Engine Oil System of Lamborghini Lamborghini Diablo SV (1999)

View All

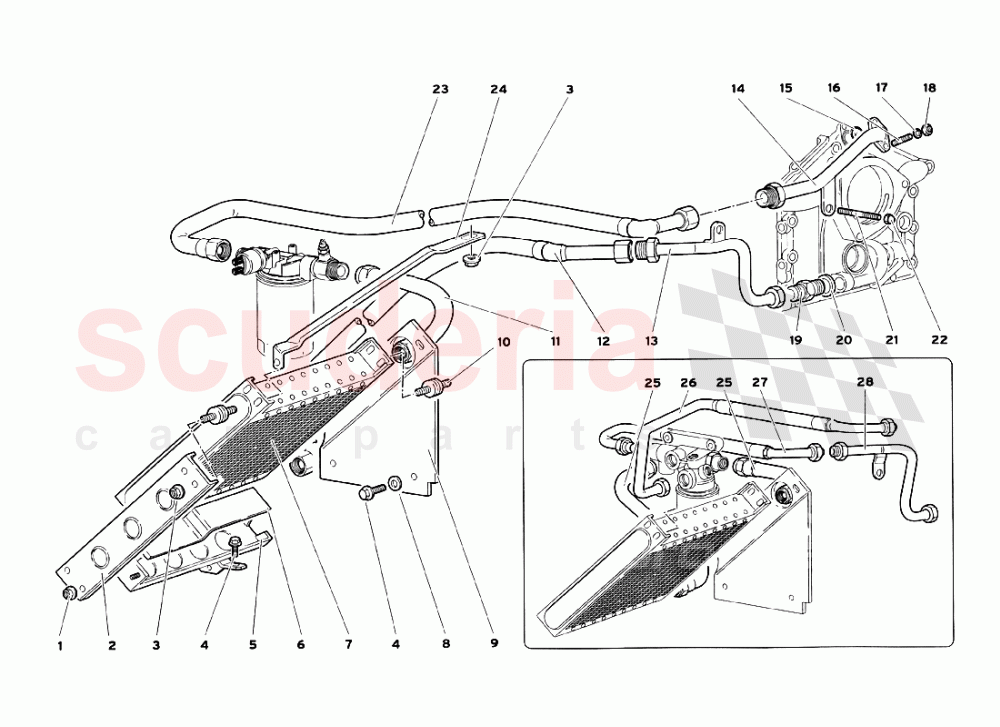

Lamborghini Diablo SV (1999) - Engine Oil System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	2
002	4138030	BRACKET	4138030 BRACKET STAFFA	$29.03	1
003	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	5
004	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$1.89	5
005	4138033	SUPPORT - SUPPORTO	4138033 SUPPORT - SUPPORTO O	$204.82	1
006	410813585	RUBBER WEATHER-	410813585 RUBBER WEATHER- PROFILATO COMMA	$13.97	1
007	7M117021	OIL RADIATOR	7M117021 OIL RADIATOR RADIATORE OLIO	$4,334.67	1
008	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	2
009	4138040	SUPPORT - SUPPORTO	4138040 SUPPORT - SUPPORTO O	$68.05	1
010	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICOi	$14.65	2
011	15001970	FLEX. HOSE	15001970 FLEX. HOSE TUBO FLESSIBILE	$881.52	1
012	1535076	FLEX. HOSE	1535076 FLEX. HOSE TUBO FLESSIBILE	$949.55	1
013	1537686	PIPE	1537686 PIPE TUBO	$98.13	1
014	1535967	PIPE	1535967 PIPE TUBO	$125.92	1
015	WHT003062	SEAL RING IN STOCK	WHT003062 SEAL RING ANELLO TENUTA IN STOCK	$6.61	1
016	8300828	STUD	8300828 STUD PRIGIONIERO	-	2	Enquire
017	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.19	2
018	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	2
019	400115707	CONNECTOR	400115707 CONNECTOR RACCORDO	$34.14	1
020	8403007	WASHER	8403007 WASHER RONDELLA	$1.10	1
021	8300905	STUD	8300905 STUD PRIGIONIERO	$18.60 MSRP: ~~19.45~~ (4.4% off)	1
022	8200816	NUT	8200816 NUT DADO	$5.14	1
023	1535078	PIPE	1535078 PIPE TUBO	$629.66	1
024	4138028	TIE ROD	4138028 TIE ROD TIRANTE	$97.14	1
025	15001970	FLEX. HOSE	15001970 FLEX. HOSE (Valid for CANADA - July 1999)TUBO FLESSIBILE	$881.52	2
025	15001970	FLEX. HOSE	15001970 FLEX. HOSE (Valid for USA - July 1999) TUBO FLESSIBILE	$881.52	2
026	1535966	PIPE	1535966 PIPE (Valid for USA - July 1999) TUBO	$269.23	1
026	1535966	PIPE	1535966 PIPE (Valid for CANADA - July 1999) TUBO	$269.23	1
027	1535965	PIPE	1535965 PIPE (Valid for USA - July 1999) TUBO	$508.06	1
027	1535965	PIPE	1535965 PIPE (Valid for CANADA - July 1999) TUBO	$508.06	1
028	1537292	PIPE	1537292 PIPE (Valid for USA - July 1999) TUBO	$385.88 MSRP: ~~402.00~~ (4% off)	1
028	1537292	PIPE	1537292 PIPE (Valid for CANADA - July 1999) TUBO	$385.88 MSRP: ~~402.00~~ (4% off)	1
