Engine Oil Filter and Thermostat (Valid for USA and Canada - July 1999) of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Engine Oil Filter and Thermostat (Valid for USA and Canada - July 1999)

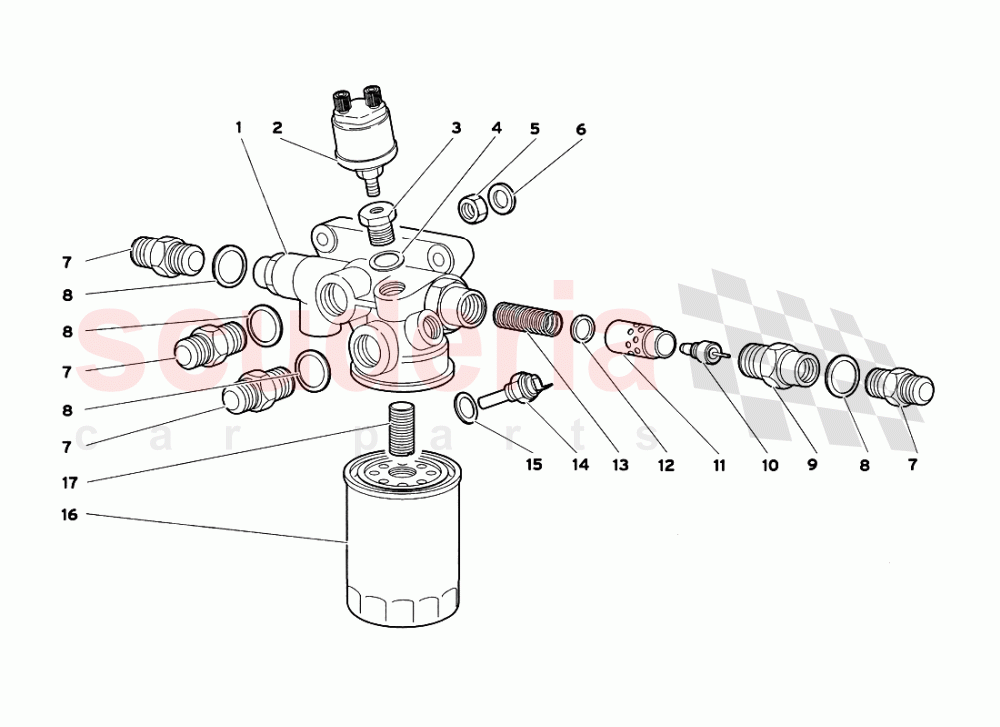

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1529644	VALVE HOUSING	1529644 VALVE HOUSING (Valid for USA and CANADA - July 1999) CORPO VALVOLA TERMOSTATICA	$454.10	1
002	1530303	OIL PRESSURE SENS.	1530303 OIL PRESSURE SENS. (Valid for USA and CANADA - July 1999) SENSORE PRESSIONE OLIO	$378.42	1
003	1530309	CONNECTION	1530309 CONNECTION (Valid for USA and CANADA - July 1999) RIDUZIONE	$38.15	1
004	8402202	WASHER IN STOCK	8402202 WASHER (Valid for USA and CANADA - July 1999) RONDELLA IN STOCK	$4.29 MSRP: ~~4.45~~ (3.6% off)	1
005	8200804	NUT M8 IN STOCK	8200804 NUT M8 (Valid for USA and CANADA - July 1999) DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	3
006	8400801	WASHER	8400801 WASHER (Valid for USA and CANADA - July 1999) RONDELLA	$0.68	3
007	400115707	CONNECTOR	400115707 CONNECTOR (Valid for USA and CANADA - July 1999) RACCORDO	$34.14	4
008	8403007	WASHER	8403007 WASHER (Valid for USA and CANADA - July 1999) RONDELLA	$1.10	4
009	1530040	CONNECTION	1530040 CONNECTION (Valid for USA and CANADA - July 1999) RACCORDO	$160.67 MSRP: ~~163.00~~ (1.4% off)	1
010	1536755	TEMPERATURE SENS.	1536755 TEMPERATURE SENS. (Valid for USA and CANADA - July 1999) SENSORE TEMPERATURA	$466.52 MSRP: ~~473.00~~ (1.4% off)	1
011	1530037	THERMOSTATIC VALVE	1530037 THERMOSTATIC VALVE (Valid for USA and CANADA - July 1999) VALVOLA TERMOSTATICA	$240.08	1
012	1530761	WASHER	1530761 WASHER (Valid for USA and CANADA - July 1999) RONDELLA	$32.60	1
013	1530038	SPRING	1530038 SPRING (Valid for USA and CANADA - July 1999) MOLLA VALVOLA TERMOSTATICA	$19.67 MSRP: ~~19.90~~ (1.2% off)	1
014	1530301	TEMPERATURE SENS.	1530301 TEMPERATURE SENS. (Valid for USA and CANADA - July 1999) SENSORE TEMPERATURA OLIO	$87.09	1
015	8401425	WASHER	8401425 WASHER (Valid for USA and CANADA - July 1999) RONDELLA	-	1	Enquire
016	1505914	Oil Filter IN STOCK	1505914 Oil Filter (UFI) IN STOCK	$89.71	1
017	1523587	THREADED BUSHING	1523587 THREADED BUSHING (Valid for USA and CANADA - July 1999) BOCCOLA FILETTATA	$32.14	1
