Steering 3

Lamborghini Diablo SV (1995-1997)

Find Your Part

Lamborghini Diablo SV (1995-1997) - Steering 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

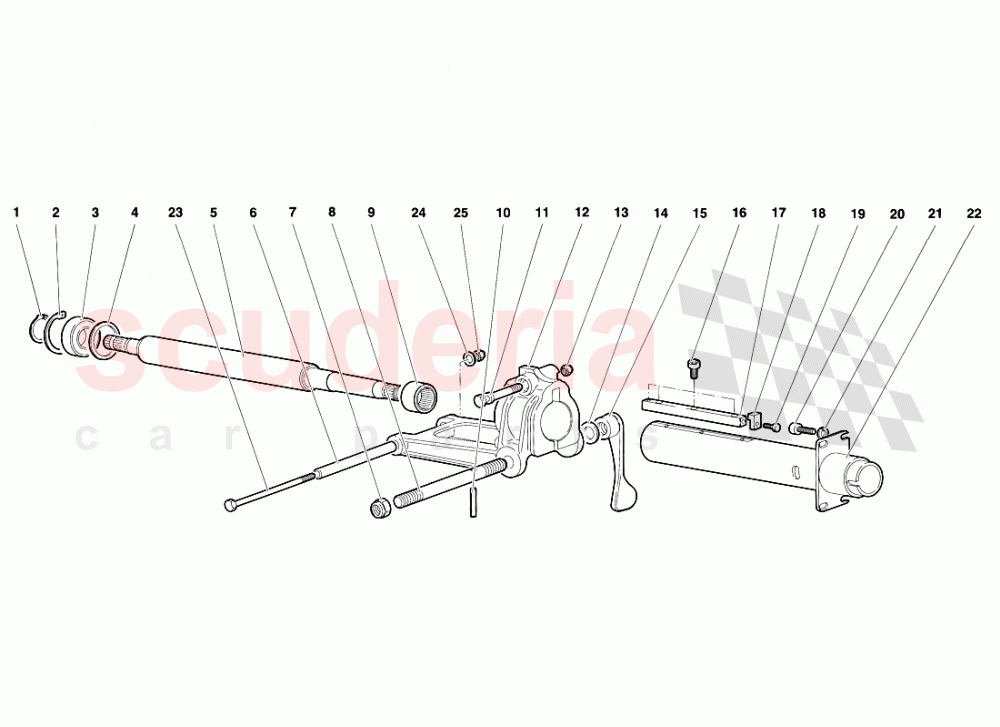

Steering 3 of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8581501
RETAINER RING 		$0.36 1
002 7M109381
RETAINING RING
IN STOCK 		$1.68 (76.5% off) 1
003 8501703
BEARING
RETAINER RING 		- 1 Enquire
004 4330714
SHIM
RETAINER RING 		$3.34 1
004 4330715
SHIM
BEARING 		$4.13 1
004 4330716
SHIM
SHIM 		$9.87 1
005 4319324
STEERING COLUMN
SHIM 		$653.86 1
006 4309824
PIN
SHIM 		$74.08 1
007 8201416
NUT
STEERING COLUMN 		$1.74 1
008 4331627
PIN
PIN 		$15.82 1
009 8522002
BEARING
NUT 		$10.55 1
010 8900401
PIN
PIN
IN STOCK 		$0.25 (96.6% off) 1
011 8100852
SCREW
BEARING 		$25.69 1
012 4327449
SUPPORT - SUPPORTO CANOTTO
PIN 		$629.66 1
013 8200804
NUT M8
SCREW
IN STOCK 		$1.16 (84.1% off) 1
014 8401427
WASHER
SUPPORT 		$2.81 1
015 4331626
LEVER
NUT 		$124.68 1
016 N10648502
SCREW M5X10
WASHER
IN STOCK 		$1.32 (81.6% off) 4
017 4310698
GUIDE
LEVER 		$482.63 1
018 4330628
LOCK KEY
SCREW 		$94.05 1
019 8100401
SCREW
GUIDE 		$0.48 (93.4% off) 1
020 8700611
SCREW UNI 5931 6X14
LOCK KEY 		$0.49 4
021 WHT003052
WASHER 4,3
SCREW
IN STOCK 		$3.77 (48.9% off) 4
022 4330288
PIPE
SCREW 		$985.10 1
023 8100815
SCREW
WASHER 		$9.61 1
024 8400801
WASHER
PIPE 		$0.68 1
025 8200804
NUT M8
SCREW
IN STOCK 		$1.16 (84.1% off) 1
