Steering 5 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Steering 5

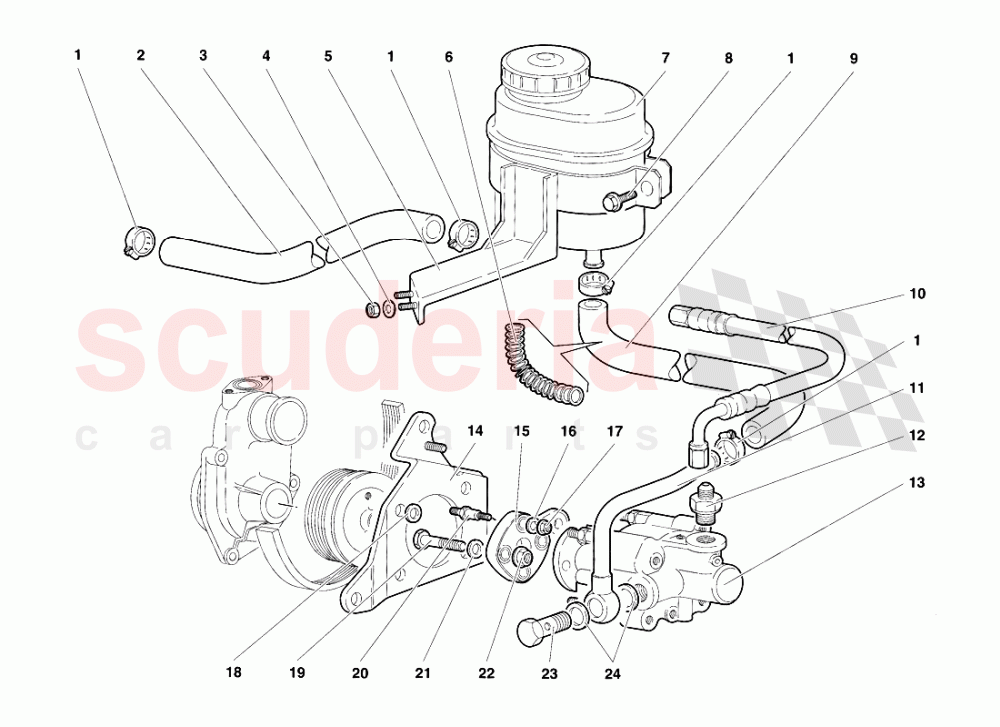

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8831524	STRAP	8831524 STRAP FASCETTA	-	4	Enquire
002	4033461	PIPE	4033461 PIPE TUBO	$12.52	1
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	2
004	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
005	4034058	SUPPORT - SUPPORTO	4034058 SUPPORT - SUPPORTO O	$140.21	1
006	410201212	SPRIMG	410201212 SPRIMG MOLLA	$40.41	1
007	4033456	OIL RESERVOIR	4033456 OIL RESERVOIR SERBATOIO OLIO	$476.45	1
008	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$1.89	1
009	4033457	PIPE	4033457 PIPE TUBO	$55.22	1
010	4033465	PIPE	4033465 PIPE TUBO	$506.62	1
011	4033467	CONNECTION	4033467 CONNECTION RACCORDO	$93.54 MSRP: ~~97.80~~ (4.4% off)	1
012	4033472	CONNECTION	4033472 CONNECTION RACCORDO	$17.00 MSRP: ~~17.20~~ (1.2% off)	1
013	4036816	OIL PUMP	4036816 OIL PUMP POMPA OLIO	$4,668.10	1
014	4037040	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4037040 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO O	$120.36	1
015	1737220	FLEXIBLE JOINT	1737220 FLEXIBLE JOINT GIUNTO ELASTICO	$311.95	1
016	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	2
017	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	2
018	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	4
019	4037039	SCREW	4037039 SCREW VITE	$48.23	2
020	1737044	PIN	1737044 PIN PERNO	$186.73	2
021	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	2
022	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING DADO	$2.29 MSRP: ~~7.22~~ (68.3% off)	2
023	4009760	SCREW	4009760 SCREW VITE FORATA	-	1	Enquire
024	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 RONDELLA IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	2
