Front Suspension of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

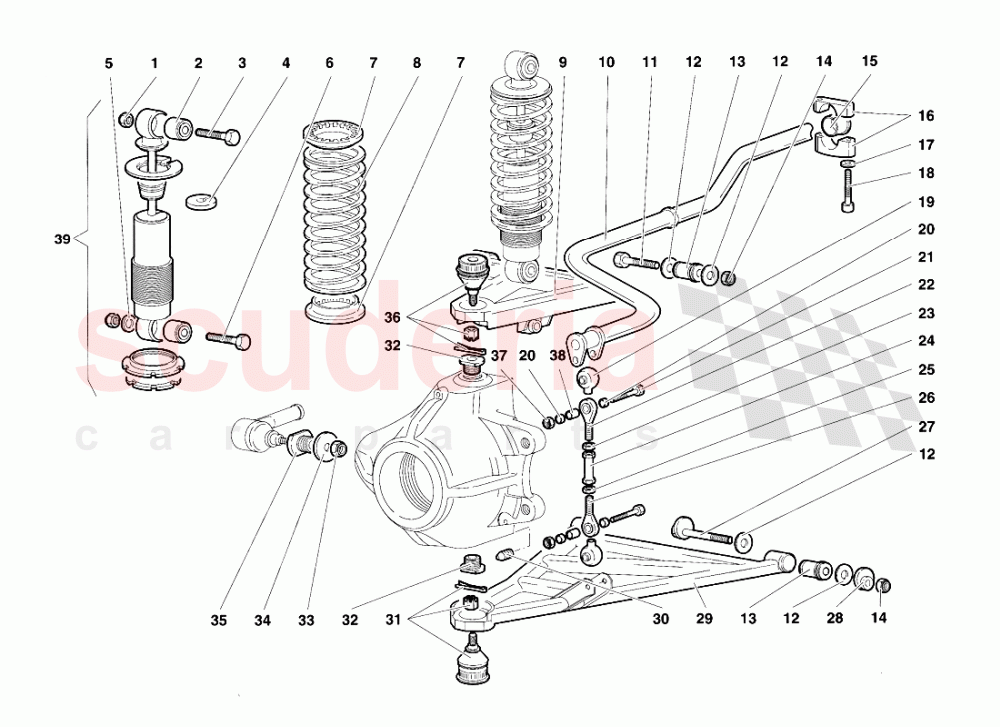

Lamborghini Diablo SV (1995-1997) - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$21.86	4
002	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$587.37	4
003	8101269	SCREW	8101269 SCREW VITE	$5.14	2
004	5133967	SPACER	5133967 SPACER DISTANZIALE	-	2	Enquire
005	8401234	WASHER	8401234 WASHER RONDELLA	$1.68 MSRP: ~~7.11~~ (76.4% off)	12
006	5133229	SCREW	5133229 SCREW VITE	$110.91	2
007	410512385	RUBBER RING IN STOCK	410512385 RUBBER RING IN STOCK	$53.43	4
008	5133618	SPRING	5133618 SPRING MOLLA	$199.13 MSRP: ~~206.50~~ (3.6% off)	2
009	5133345	ARM	5133345 ARM BRACCIO SUPERIORE SX	$1,758.70	1
009	5133344	ARM	5133344 ARM BRACCIO SUPERIORE DX	$1,679.09	1
010	5134057	TORSION BAR	5134057 TORSION BAR BARRA TORSIONE	$442.94	1
011	8101269	SCREW	8101269 SCREW VITE	$5.14	4
012	410407295D	WASHER	410407295D WASHER DISTANZIALE 3 MM	$29.71	1
012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM DISTANZIALE 1 MM	$4.52	1
012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM DISTANZIALE 2,5 MM	$7.32	1
012	5133488	SHIM	5133488 SHIM DISTANZIALE 1,5 MM	$3.25	1
012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM DISTANZIALE 2 MM	$6.66	1
013	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$50.31	8
014	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$21.86	8
015	5230804	BUSHING	5230804 BUSHING BOCCOLA	-	2	Enquire
016	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$311.40	2
017	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
018	WHT002960	SCREW IN STOCK	WHT002960 SCREW VITE IN STOCK	$9.03	4
019	5109714	BOOT	5109714 BOOT CUFFIA	$26.25	4
020	5227297	BUSHING	5227297 BUSHING BOCCOLA	$32.36	8
021	8100807	SCREW	8100807 SCREW VITE	$0.83 MSRP: ~~7.27~~ (88.6% off)	4
022	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$264.79	2
023	8201035	NUT	8201035 NUT DADO	$1.32 MSRP: ~~7.13~~ (81.5% off)	2
024	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$114.15	2
025	8201034	NUT	8201034 NUT DADO	$1.68 MSRP: ~~7.10~~ (76.3% off)	2
026	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$152.72	2
027	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,318.56	4
028	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,318.56	4
029	5133039	ARM	5133039 ARM BRACCIO INFERIORE SX	$1,305.64	1
029	5133038	ARM	5133038 ARM BRACCIO INFERIORE DX	$1,305.64	1
030	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10 VITE	$0.97 MSRP: ~~7.24~~ (86.6% off)	4
031	410407361B	COUPLING	410407361B COUPLING TESTA A SNODO	$1,260.75	2
032	410407171C	BUSH	410407171C BUSH BUSSOLA	$1,465.06	4
033	8201003	NUT	8201003 NUT DADO	$3.48	2
034	WHT000919	WASHER	WHT000919 WASHER	$14.99	2
035	5129541	BUSHING	5129541 BUSHING BUSSOLA	$47.35	2
036	410407365	Coupling	410407365 Coupling TESTA A SNODO	$262.75	2
037	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
038	5227298	BUSHING	5227298 BUSHING BOCCOLA	$17.62	4
039	5129802	SHOCK ABSORBER	5129802 SHOCK ABSORBER AMMORTIZZATORE	$1,162.32	2
