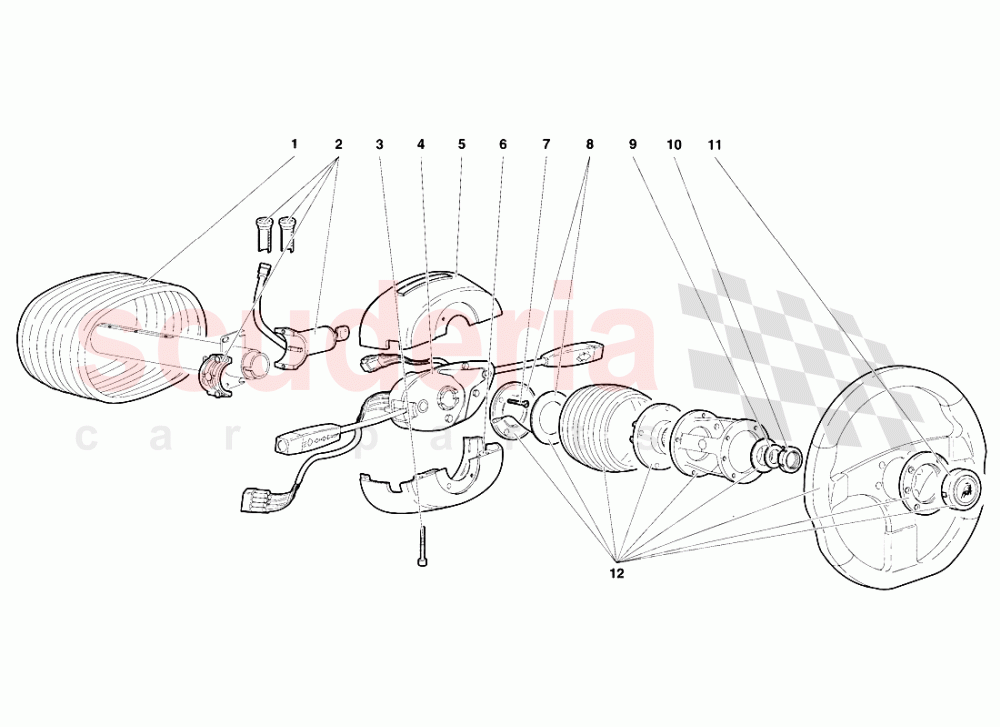

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414206	COVERING	9414206 COVERING RIVESTIMENTO PIANTONE	$259.13	1
002	6031202	IGNITION SWITCH IN STOCK	6031202 IGNITION SWITCH KIT COMMUTATORE ACCENSIONE IN STOCK	$442.56	1
003	8700442	SCREW	8700442 SCREW VITE	$0.33	2
004	4320773	LEVER ASSY	4320773 LEVER ASSY KIT LEVE	$1,527.07	1
005	9414319	UPPER COVER	9414319 UPPER COVER COPERCHIO SUPERIORE	-	1	Enquire
006	9414320	LOWER COVER	9414320 LOWER COVER COPERCHIO INFERIORE	-	1	Enquire
007	WHT002756	SCREW	WHT002756 SCREW	-	2	Enquire
008	4330673	CONTACT PLATE	4330673 CONTACT PLATE CONTATTO STRISCIANTE	$249.69	1
009	8401417	WASHER	8401417 WASHER RONDELLA	$2.99	1
010	WHT003099	RING NUT	WHT003099 RING NUT GHIERA	$16.60	1
011	4337592	ORNAMENT	4337592 ORNAMENT EMBLEMA	-	1	Enquire
012	4337591	STEERING WHEEL	4337591 STEERING WHEEL	$1,569.49	1
