Lamborghini Diablo SV (1995-1997) - Bumpers (Valid for Canada - March 1997)

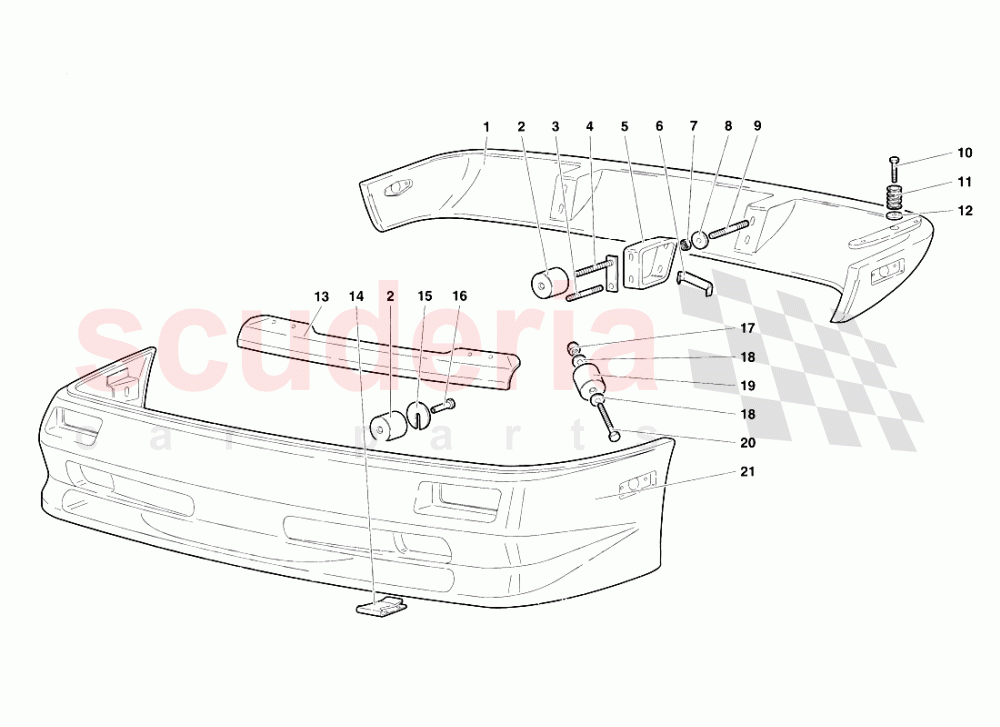

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9463007	REAR BUMPER BAR	9463007 REAR BUMPER BAR (Valid for CANADA - March 1997) PARAURTI POSTERIORE	-	1	Enquire
002	9463125	RUBBER PAD	9463125 RUBBER PAD (Valid for CANADA - March 1997) TAMPONE GOMMA	-	8	Enquire
003	8300912	STUD	8300912 STUD (Valid for CANADA - March 1997) PRIGIONIERO	-	2	Enquire
004	9463215	PLATE	9463215 PLATE (Valid for CANADA - March 1997) PIASTRA	-	2	Enquire
005	9463213	SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO	9463213 SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO (Valid for CANADA - March 1997) O	-	2	Enquire
006	9463216	CLIP	9463216 CLIP (Valid for CANADA - March 1997) MOLLETTA	-	2	Enquire
007	8200804	NUT M8	8200804 NUT M8 (Valid for CANADA - March 1997) DADO	-	4	Enquire
008	8400801	WASHER	8400801 WASHER (Valid for CANADA - March 1997) RONDELLA	-	4	Enquire
009	8300840	STUD	8300840 STUD (Valid for CANADA - March 1997) PRIGIONIERO	-	4	Enquire
010	8100842	SCREW	8100842 SCREW (Valid for CANADA - March 1997) VITE	-	2	Enquire
011	9463217	SPRING	9463217 SPRING (Valid for CANADA - March 1997) MOLLA	-	2	Enquire
012	7063142	WASHER	7063142 WASHER (Valid for CANADA - March 1997) RONDELLA	-	4	Enquire
013	9463126	SHIELD	9463126 SHIELD (Valid for CANADA - March 1997) PROTEZIONE	-	1	Enquire
014	410807794	SPRING	410807794 SPRING (Valid for CANADA - March 1997) MOLLETTA	-	11	Enquire
015	7063145	SHIM	7063145 SHIM use : 410807567	-	1	Enquire
016	9463117	SCREW	9463117 SCREW (Valid for CANADA - March 1997) VITE	-	2	Enquire
017	8200804	NUT M8	8200804 NUT M8 (Valid for CANADA - March 1997) DADO	-	2	Enquire
018	8400801	WASHER	8400801 WASHER (Valid for CANADA - March 1997) RONDELLA	-	4	Enquire
019	9463125	RUBBER PAD	9463125 RUBBER PAD (Valid for CANADA - March 1997) TAMPONE GOMMA	-	2	Enquire
020	8100861	SCREW M8X90	8100861 SCREW M8X90 (Valid for CANADA - March 1997) VITE	-	2	Enquire
021	9463013	FRONT BUMPER BAR	9463013 FRONT BUMPER BAR (Valid for CANADA - March 1997) PARAURTI ANTERIORE	-	1	Enquire
