Windscreen Wiper and Headlamp Washers of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

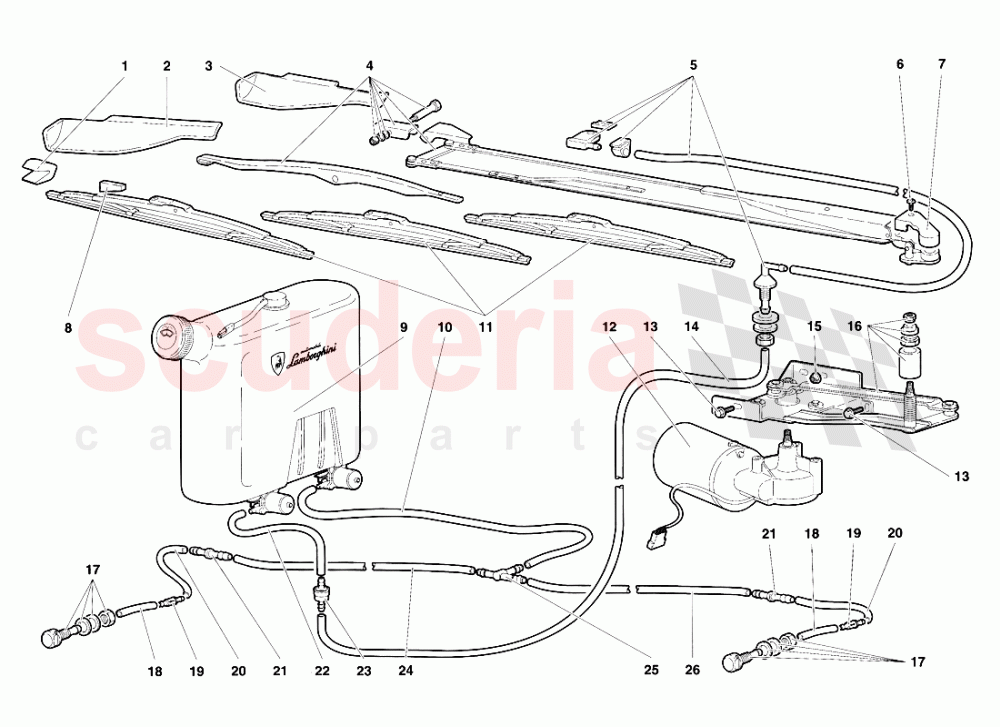

Lamborghini Diablo SV (1995-1997) - Windscreen Wiper and Headlamp Washers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9420129	RUBBER BUMPER	9420129 RUBBER BUMPER PARACOLPI GOMMA	$34.54	1
002	9420128	FIN	9420128 FIN ALETTA ESTERNA	$2,258.06	1
003	9420127	FIN	9420127 FIN ALETTA INTERNA	$1,166.68	1
004	9420125	WIPER ARM	9420125 WIPER ARM BRACCIO TERGITORE	-	1	Enquire
006	WHT003302	SCREW M4X6 IN STOCK	WHT003302 SCREW M4X6 IN STOCK	$1.81 MSRP: ~~7.10~~ (74.5% off)	1
007	9420137	SHIELD	9420137 SHIELD VITE	-	1	Enquire
008	9420136	RUBBER	9420136 RUBBER GOMMA	$102.22 MSRP: ~~103.50~~ (1.2% off)	1
009	9420219	WATER RESERVOIR	9420219 WATER RESERVOIR SERBATOIO ACQUA	$822.56	1
010	9420230	PIPE	9420230 PIPE TUBO	-	1	Enquire
011	9420126	BRUSH	9420126 BRUSH SPAZZOLA	$31.26 MSRP: ~~31.60~~ (1.1% off)	3
012	9420112	ELECT MOTOR	9420112 ELECT MOTOR MOTORING TERGI	$602.99 MSRP: ~~629.00~~ (4.1% off)	1
013	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	2
014	9420211	PIPE	9420211 PIPE TUBO	$7.31	1
015	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	2
016	9420111	LEVER ASSEMBLY	9420111 LEVER ASSEMBLY MOTORING TERGI	$1,594.30	1
017	400955985	NOZZLE	400955985 NOZZLE UGELLO LAVAFARO	$5.79	2
018	9420228	PIPE	9420228 PIPE TUBO	-	2	Enquire
019	9420227	VALVE	9420227 VALVE VALVOLA Dl NON RITORNO	$4.71	2
020	9420229	PIPE	9420229 PIPE TUBO	-	2	Enquire
021	9420208	CONNECTION	9420208 CONNECTION RACCORDO	$1.50	2
022	9420201	PIPE	9420201 PIPE TUBO	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
023	9420210	VALVE	9420210 VALVE VALVOLA Dl NON RITORNO	$6.45	1
024	9420213	PIPE	9420213 PIPE TUBO	$6.28	1
025	9420209	3 WAY CONNECTION	9420209 3 WAY CONNECTION RACCORDO A TRE VIE	$2.61	1
026	9420214	PIPE	9420214 PIPE TUBO	$21.36	1
