Lights of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Lights

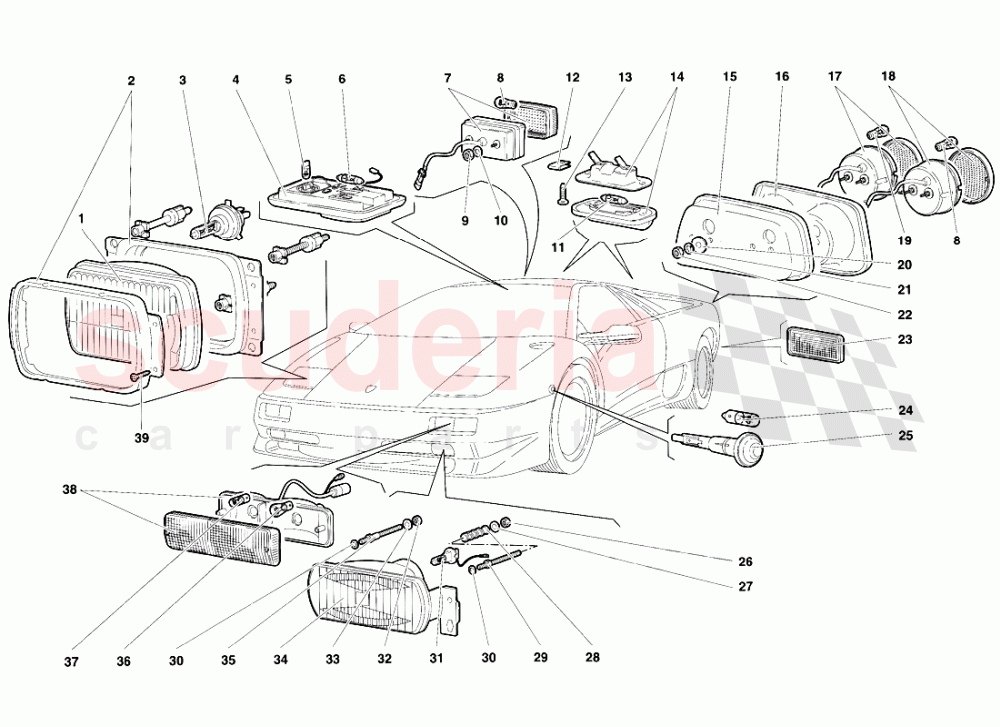

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6331753	HEADLAMP	6331753 HEADLAMP PROIETTORE	$206.28	2
002	6331631	FRAME	6331631 FRAME CORNICE	$98.76	2
003	6329694	BULB	6329694 BULB LAMPADA	$54.72	2
004	6334454	CEILING LAMP	6334454 CEILING LAMP PLAFONIERA	$2,373.85	1
005	N0177522	LAMP 12V/3W IN STOCK	N0177522 LAMP 12V/3W LAMPADA IN STOCK	$1.96 MSRP: ~~7.09~~ (72.4% off)	1
006	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W LAMPADA	$9.55	1
007	6337097	REAR FOG LIGHT	6337097 REAR FOG LIGHT RETRONEBBIA	$118.28	1
007	6337098	REVERSE LAMP	6337098 REVERSE LAMP FANALE RETROMARCIA	-	1	Enquire
008	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W LAMPADA	$8.50	4
009	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	4
010	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	4
011	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W LAMPADA	$9.55	2
012	WHT003424	CLIP IN STOCK	WHT003424 CLIP MOLLETTA IN STOCK	$0.89 MSRP: ~~7.25~~ (87.7% off)	4
013	8700445	SCREW	8700445 SCREW VITE	$0.68 MSRP: ~~7.38~~ (90.8% off)	4
014	6328344	LICENCE PLATE LAMP	6328344 LICENCE PLATE LAMP FANALE TARGA	$45.48	2
015	9911300	RIGHT PANEL	9911300 RIGHT PANEL PANNELLO DX	$1,006.20	1
015	9911301	LEFT PANEL	9911301 LEFT PANEL PANNELLO SX	$1,006.20	1
016	9444005VSN	RIGHT FRAME	9444005VSN RIGHT FRAME CORNICE DX	$430.52	1
016	9444006VSN	LEFT FRAME	9444006VSN LEFT FRAME CORNICE SX	$428.04	1
017	6329828	TAIL LAMP / BRAKE L.	6329828 TAIL LAMP / BRAKE L. FANALE POST. (POSIZIONE E STOP)	$86.74	2
018	6329829	TURNING LIGHT	6329829 TURNING LIGHT INDICATORE Dl DIREZIONE	$76.93	2
019	6617091	LAMP 15D 32220 5/21W	6617091 LAMP 15D 32220 5/21W LAMPADA	$11.66	2
020	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	8
021	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	8
022	N01100632	NUT M6	N01100632 NUT M6 DADO	$4.52 MSRP: ~~7.33~~ (38.3% off)	8
023	6319022	REFLEX/REFLECTOR	6319022 REFLEX/REFLECTOR CATADIOTTRO	$167.21	2
024	6329897	BULB IN STOCK	6329897 BULB LAMPADA IN STOCK	$2.56	2
025	R1050004	KIT 2 DIRECTION INDICATORS	R1050004 KIT 2 DIRECTION INDICATORS use (0R1050004 - sets of 2 pieces)	$174.96 MSRP: ~~182.00~~ (3.9% off)	2
026	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	6
027	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	6
028	2403369	SPRING	2403369 SPRING MOLLA	$33.01	4
029	6337296	STUD	6337296 STUD COLONNETTA	$16.31	6
030	8410508	WASHER	8410508 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	6
031	6329695	BULB	6329695 BULB LAMPADA	$16.61 MSRP: ~~16.80~~ (1.1% off)	2
032	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	6
033	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
034	6336822	LEFT FLASH LIGHT	6336822 LEFT FLASH LIGHT FLASH DIURNO SX	$427.00	1
034	6336821	RIGHT FLASH LIGHT	6336821 RIGHT FLASH LIGHT FLASH DIURNO DX	$427.00	1
035	6337297	STUD	6337297 STUD STUD	$16.31	6
036	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W BULB	$8.50	2
037	6329696	BULB	6329696 BULB BULB	$2.85 MSRP: ~~2.95~~ (3.4% off)	2
038	6331780	RIGHT FRONT LAMP	6331780 RIGHT FRONT LAMP RIGHT FRONT LAMP	$107.11	1
038	6331779	LEFT FRONT LAMP	6331779 LEFT FRONT LAMP LEFT FRONT LAMP	$107.11	1
039	8700304	SCREW	8700304 SCREW SCREW	$0.06 MSRP: ~~7.39~~ (99.2% off)	8
