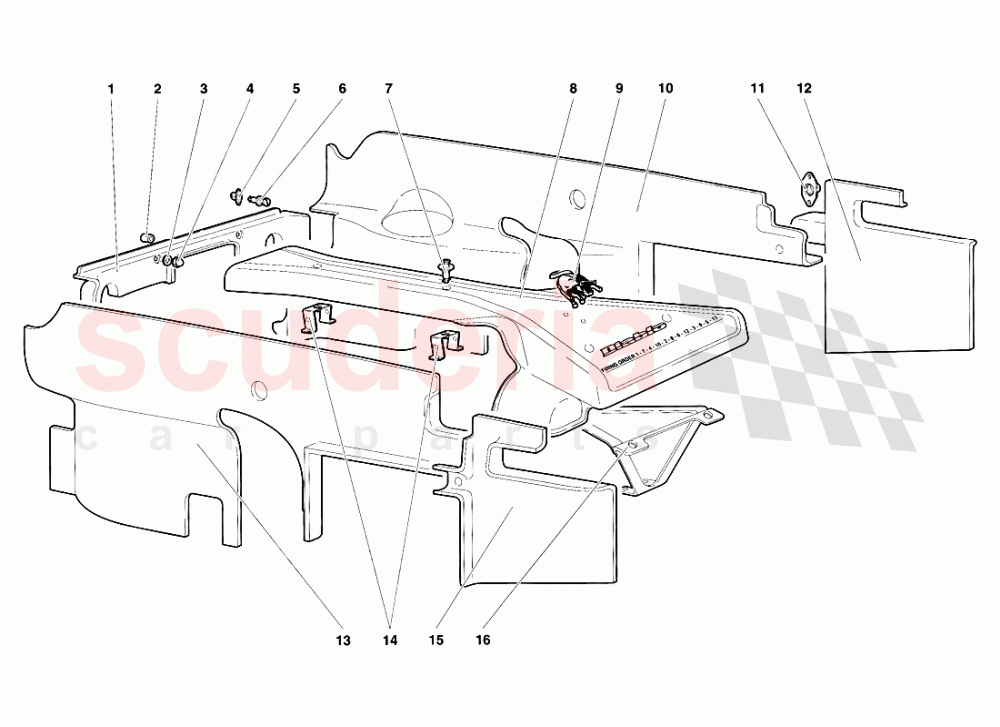

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9411644	SHIELD	9411644 SHIELD PROTEZIONE	$641.44	1
002	1331681	SPACER	1331681 SPACER DISTANZIALE	$19.00	2
003	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	2
004	8200620	NUT	8200620 NUT DADO	$7.93 MSRP: ~~8.25~~ (3.9% off)	2
005	9411618	CLIP	9411618 CLIP FERMAGLIO	$9.20 MSRP: ~~9.30~~ (1.1% off)	1
006	9411617	SCREW	9411617 SCREW VITE	$22.82 MSRP: ~~23.80~~ (4.1% off)	1
007	9411614	SCREW	9411614 SCREW VITE	$64.41	6
008	9411606	PANEL	9411606 PANEL PANNELLO	$2,847.39	1
009	6121271	BLACK BULL	6121271 BLACK BULL FREGIO (TORO) For Silver use part number : 006128588	$196.65 MSRP: ~~199.00~~ (1.2% off)	1
010	9411645	RIGHT PANEL	9411645 RIGHT PANEL PANNELLO DX	$919.36	1
011	9411615	CLIP	9411615 CLIP FERMAGLIO	$33.93	2
012	9411647	RIGHT REAR PANEL	9411647 RIGHT REAR PANEL PANNELLO POST. DX	$349.88	1
013	9411646	LEFT PANEL	9411646 LEFT PANEL PANNELLO SX	$838.71	1
014	1637846	BRACKET	1637846 BRACKET STAFFA	$73.45	2
015	9411648	LEFT REAR PANEL	9411648 LEFT REAR PANEL PANNELLO POST. SX	$349.88	1
016	1637847	SUPPORT - SUPPORTO	1637847 SUPPORT - SUPPORTO O	$128.41	1
