Bumpers of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

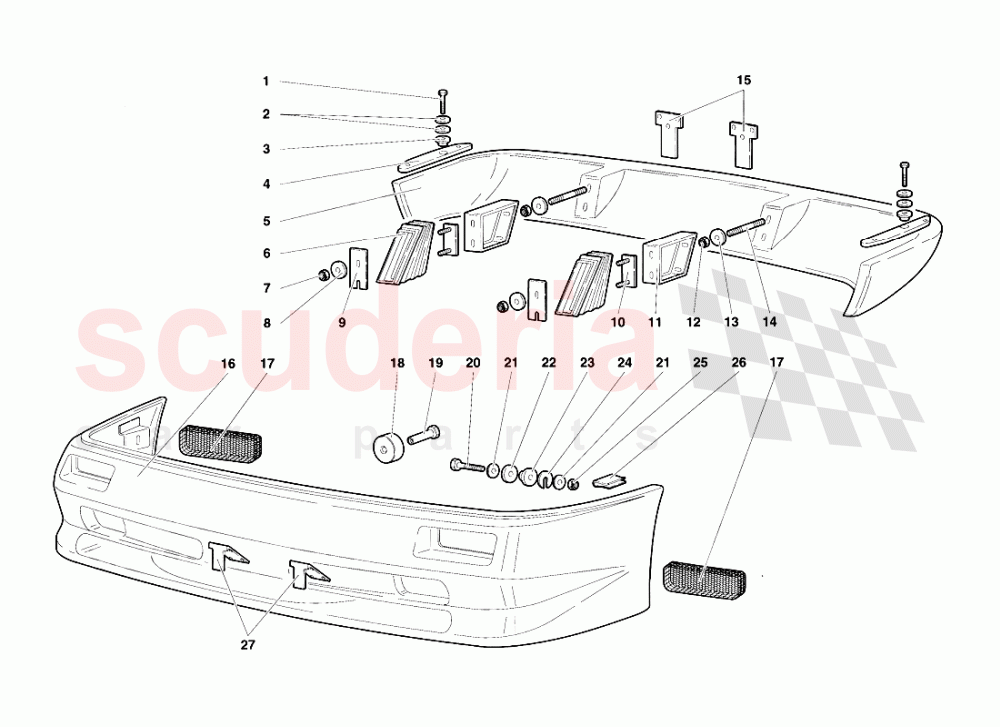

Lamborghini Diablo SV (1995-1997) - Bumpers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8100831	SCREW	8100831 SCREW VITE	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
002	WHT001942	WASHER	WHT001942 WASHER RONDELLA	$3.30	4
003	9463240	WASHER	9463240 WASHER RONDELLA	$58.06	2
004	9463207	SPACER	9463207 SPACER DISTANZIALE	$122.94	2
005	600946307	REAR BUMPER BAR	600946307 REAR BUMPER BAR PARAURTI POSTERIORE	$6,352.34	1
006	9463204	SHIELD	9463204 SHIELD PROTEZIONE	$243.19	2
007	8200804	NUT M8	8200804 NUT M8 DADO	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
008	WHT001942	WASHER	WHT001942 WASHER RONDELLA	$3.30	4
009	9463229	PLATE	9463229 PLATE PIASTRA	$51.12 MSRP: ~~53.50~~ (4.4% off)	2
010	9463209	PLATE	9463209 PLATE PIASTRA	$11.31 MSRP: ~~11.45~~ (1.2% off)	2
011	9463208	SUPPORT - SUPPORTO	9463208 SUPPORT - SUPPORTO O	$244.64	2
012	8200804	NUT M8	8200804 NUT M8 DADO	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
013	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
014	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.30	4
015	9466112	BRACKET	9466112 BRACKET STAFFA	$227.27	2
016	9463012	FRONT BUMPER BAR	9463012 FRONT BUMPER BAR PARAURTI ANTERIORE	$12,093.65	1
017	9430142	NET	9430142 NET RETE	$363.55	2
018	9463155	RUBBER PAD	9463155 RUBBER PAD TAMPONE GOMMA	$8.57	4
019	9463117	SCREW	9463117 SCREW VITE	$46.59	4
020	8100810	SCREW	8100810 SCREW VITE	-	2	Enquire
021	WHT001942	WASHER	WHT001942 WASHER RONDELLA	$3.30	4
022	7063142	WASHER	7063142 WASHER RONDELLA	$17.56 MSRP: ~~18.30~~ (4% off)	2
023	9463240	WASHER	9463240 WASHER RONDELLA	$58.06	2
024	9463110	SPACER	9463110 SPACER DISTANZIALE	$15.21	1
024	9463111	SPACER	9463111 SPACER DISTANZIALE	$28.47 MSRP: ~~28.80~~ (1.1% off)	1
025	8200804	NUT M8	8200804 NUT M8 DADO	$1.16 MSRP: ~~7.28~~ (84.1% off)	2
026	8220506	CLIP	8220506 CLIP MOLLETTA	$42.51	14
027	9466111	BRACKET	9466111 BRACKET STAFFA	$179.48	2
