Gear Transmission End (Valid for Canada - March 1997) of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

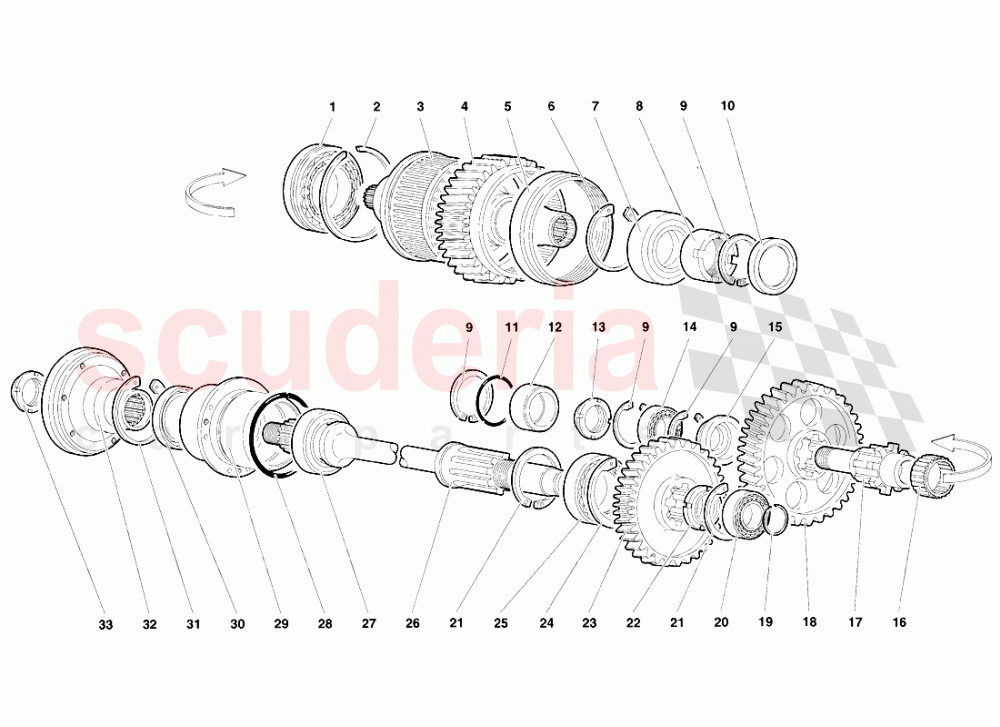

Lamborghini Diablo SV (1995-1997) - Gear Transmission End (Valid for Canada - March 1997)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8525013	BEARING	8525013 BEARING (Valid for CANADA - March 1997) CUSCINETTO	-	1	Enquire
002	8589001	RETAINER RING	8589001 RETAINER RING (Valid for CANADA - March 1997) ANELLO RITEGNO	-	1	Enquire
003	2437746	VISCOUS COUPLING	2437746 VISCOUS COUPLING (Valid for CANADA - March 1997) GIUNTO VISCOSO	-	1	Enquire
004	2434502	GEAR	2434502 GEAR (Valid for CANADA - March 1997) INGRANAGGIO	-	1	Enquire
005	2437744	PLUG	2437744 PLUG (Valid for CANADA - March 1997) GHIERA	-	1	Enquire
006	8578001	RETAINER RING	8578001 RETAINER RING (Valid for CANADA - March 1997) ANELLO RITEGNO	-	1	Enquire
007	8514001	BEARING	8514001 BEARING (Valid for CANADA - March 1997) CUSCINETTO	-	1	Enquire
008	8254004	PLUG	8254004 PLUG (Valid for CANADA - March 1997) GHIERA	-	1	Enquire
009	8575201	RETAINING RING	8575201 RETAINING RING (Valid for CANADA - March 1997) ANELLO RITEGNO	-	4	Enquire
010	86311819	SEAL RING	86311819 SEAL RING	-	1	Enquire
011	8605002	SEAL	8605002 SEAL (Valid for CANADA - March 1997) ANELLO TENUTA	-	1	Enquire
012	2436927	COVER	2436927 COVER (Valid for CANADA - March 1997) COPERCHIO	-	1	Enquire
013	8252502	PLUG	8252502 PLUG (Valid for CANADA - March 1997) GHIERA	-	1	Enquire
014	8512500	BEARING	8512500 BEARING (Valid for CANADA - March 1997)	-	1	Enquire
015	2430936	SPACER	2430936 SPACER (Valid for CANADA - March 1997) DISTANZIALE	-	1	Enquire
016	8523517	ROLLER CAGE	8523517 ROLLER CAGE (Valid for CANADA - March 1997) CUSCINETTO	-	1	Enquire
017	2431869	SMALL SHAFT	2431869 SMALL SHAFT (Valid for CANADA - March 1997) ALBERINO	-	1	Enquire
018	2433672	GEAR	2433672 GEAR (Valid for CANADA - March 1997) INGRANAGGIO	-	1	Enquire
019	8582501	RETAINER RING	8582501 RETAINER RING (Valid for CANADA - March 1997) ANELLO RITEGNO	-	1	Enquire
020	8522509	BEARING	8522509 BEARING (Valid for CANADA - March 1997) CUSCINETTO	-	1	Enquire
021	8576601	RETAINER RING	8576601 RETAINER RING (Valid for CANADA - March 1997) ANELLO RITEGNO	-	2	Enquire
022	8253005	PLUG	8253005 PLUG (Valid for CANADA - March 1997) GHIERA	-	1	Enquire
023	2433673	GEAR	2433673 GEAR (Valid for CANADA - March 1997) INGRANAGGIO	-	1	Enquire
024	8577601	RETAINER RING	8577601 RETAINER RING (Valid for CANADA - March 1997) ANELLO RITEGNO	-	1	Enquire
025	8523516	BEARING	8523516 BEARING (Valid for CANADA - March 1997) CUSCINETTO	-	1	Enquire
026	2434628	PROPELLER SHAFT	2434628 PROPELLER SHAFT (Valid for CANADA - March 1997) ALBERO TRASMISSIONE	-	1	Enquire
027	8513000	BEARING	8513000 BEARING (Valid for CANADA - March 1997) CUSCINETTO	-	1	Enquire
028	8606502	SEAL	8606502 SEAL (Valid for CANADA - March 1997) ANELLO TENUTA	-	1	Enquire
029	2434637	FLANGE	2434637 FLANGE (Valid for CANADA - March 1997) FLANGIA	-	1	Enquire
030	8614211	SEAL	8614211 SEAL (Valid for CANADA - March 1997) ANELLO TENUTA	-	1	Enquire
031	8575501	RETAINING RING	8575501 RETAINING RING (Valid for CANADA - March 1997) ANELLO RITEGNO	-	1	Enquire
032	2434627	FLANGE	2434627 FLANGE (Valid for CANADA - March 1997) FLANGIA	-	1	Enquire
033	8252505	PLUG	8252505 PLUG (Valid for CANADA - March 1997) GHIERA	-	1	Enquire
