Find Your Part

Clutch of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Clutch

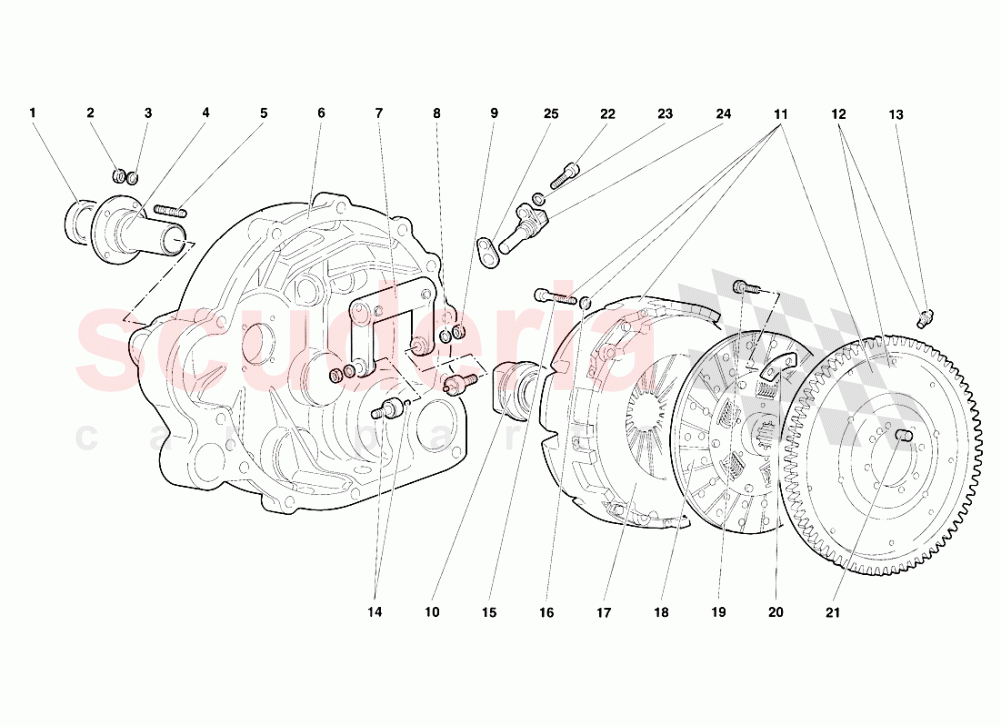

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8613206	SEAL	8613206 SEAL ANELLO TENUTA	-	1	Enquire
002	N01100637	NUT M6	N01100637 NUT M6 DADO	-	4	Enquire
003	WHT003213	WASHER	WHT003213 WASHER RONDELLA	-	4	Enquire
004	2435495	SUPPORT - SUPPORTO REGGISPINTA	2435495 SUPPORT - SUPPORTO REGGISPINTA O REGGISPINTA	-	1	Enquire
005	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	-	4	Enquire
006	2437018	CLUTCH BELL HOUS.	2437018 CLUTCH BELL HOUS. CAMPANA FRIZIONE	-	1	Enquire
007	2129843	FORK	2129843 FORK FORCELLA COMANDO FRIZIONE	-	1	Enquire
008	N0152785	WASHER	N0152785 WASHER RONDELLA	-	2	Enquire
009	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	2	Enquire
010	2135367	SLEEVE T/OBEARING	2135367 SLEEVE T/OBEARING MANICOTTO DISINNESTO	-	1	Enquire
011	2137138	PRES. PLATE - FLYWH.	2137138 PRES. PLATE - FLYWH. SPINGIDISCO - VOLANO	-	1	Enquire
012	2134891	FLYWHEEL WITH PINS	2134891 FLYWHEEL WITH PINS VOLANO MOTORE CON PIOLI	-	1	Enquire
013	7M105357	PIN	7M105357 PIN	-	6	Enquire
014	2130016	PAWL	2130016 PAWL NOTTOLINO	-	2	Enquire
015	WHT002960	SCREW	WHT002960 SCREW VITE	-	9	Enquire
016	8410602	WASHER	8410602 WASHER RONDELLA	-	9	Enquire
017	2135365	PRESSURE PLATE	2135365 PRESSURE PLATE	-	1	Enquire
018	7M141031A	Clutch Disc	7M141031A Clutch Disc (Valeo)	-	1	Enquire
019	WHT002951	Hexagon Head Bolt M8x1.25x23	WHT002951 Hexagon Head Bolt M8x1.25x23 VITE	-	8	Enquire
020	410141179	Retaining Plate	410141179 Retaining Plate	-	4	Enquire
021	8850806	DOWEL	8850806 DOWEL GRAND	-	1	Enquire
022	8700670	SCREW	8700670 SCREW VITE	-	1	Enquire
023	8410603	WASHER	8410603 WASHER RONDELLA	-	1	Enquire
024	86927321	TIMING SENSOR	86927321 TIMING SENSOR TRASMETTITORE	-	1	Enquire
025	2437780	SHIM	2437780 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
