Clutch Control Levers of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

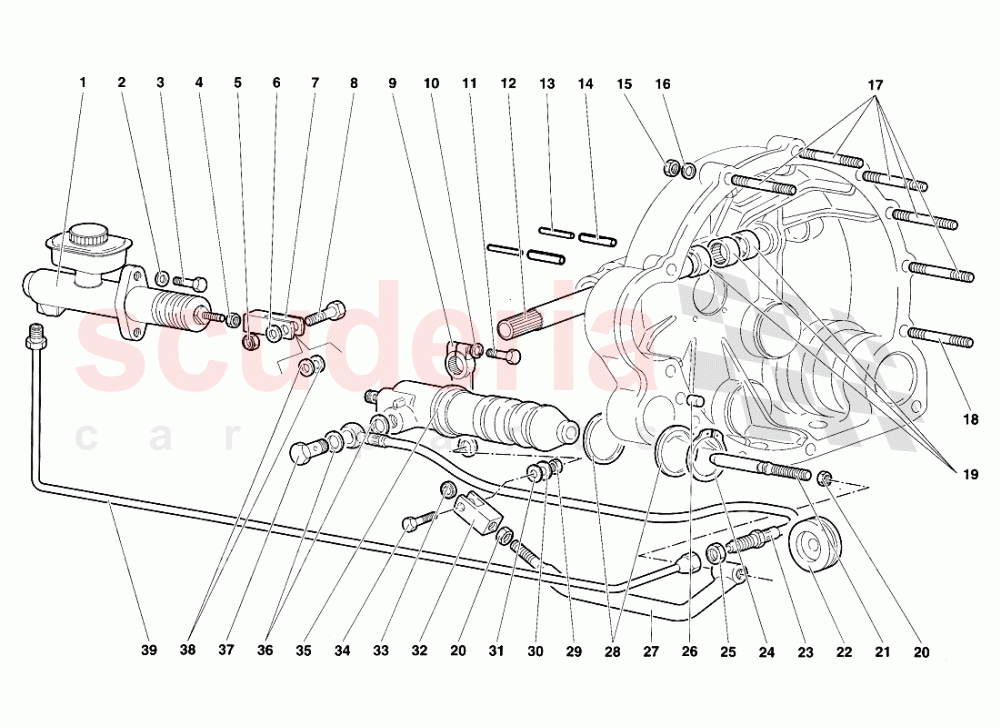

Lamborghini Diablo SV (1995-1997) - Clutch Control Levers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4219984	CLUTCH PUMP	4219984 CLUTCH PUMP POMPA FRIZIONE	-	1	Enquire
002	N0152785	WASHER	N0152785 WASHER RONDELLA	-	2	Enquire
003	8100830	SCREW	8100830 SCREW VITE	-	2	Enquire
004	8200811	NUT	8200811 NUT DADO	-	1	Enquire
005	8200804	NUT M8	8200804 NUT M8 DADO	-	1	Enquire
006	8400801	WASHER	8400801 WASHER RONDELLA	-	1	Enquire
007	4219591	FORK	4219591 FORK FORCELLA	-	1	Enquire
008	2129460	JOURNAL	2129460 JOURNAL PERNO	-	1	Enquire
009	2129457	LEVER	2129457 LEVER LEVA	-	1	Enquire
010	8410819	WASHER	8410819 WASHER RONDELLA	-	1	Enquire
011	8100841	SCREW	8100841 SCREW VITE	-	1	Enquire
012	2134759	SHAFT	2134759 SHAFT ALBERO	-	1	Enquire
013	8900505	PIN - SPINA	8900505 PIN - SPINA SA	-	2	Enquire
014	8900804	PIN - SPINA	8900804 PIN - SPINA SA	-	2	Enquire
015	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	11	Enquire
016	WHT001514	WASHER	WHT001514 WASHER RONDELLA	-	11	Enquire
017	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	-	5	Enquire
018	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	1	Enquire
018	WHT003028	THREADED PIN	WHT003028 THREADED PIN	-	1	Enquire
019	8522204	ROLLER CAGE	8522204 ROLLER CAGE CUSCINETTO	-	3	Enquire
020	N10155210	NUT	N10155210 NUT DADO	-	2	Enquire
021	2134687	ROD	2134687 ROD PUNTALE	-	1	Enquire
022	8612804	RUBBER RING	8612804 RUBBER RING ANELLO GOMMA	-	1	Enquire
023	2134962	FLEX. HOSE	2134962 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
024	8583701	RETAINER RING	8583701 RETAINER RING ANELLO RITEGNO	-	1	Enquire
025	8201216	NUT	8201216 NUT DADO	-	1	Enquire
026	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
027	2134956	IDLE LEVER	2134956 IDLE LEVER RINVIOALEVA	-	1	Enquire
028	2129128	SPACER	2129128 SPACER DISTANZIALE	-	2	Enquire
029	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	1	Enquire
030	N0152785	WASHER	N0152785 WASHER RONDELLA	-	1	Enquire
031	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 RONDELLA	-	1	Enquire
032	2134957	FORK	2134957 FORK FORCELLA	-	1	Enquire
033	4225225	COUPLING	4225225 COUPLING TESTA A SNODO	-	1	Enquire
034	8100841	SCREW	8100841 SCREW VITE	-	1	Enquire
035	2136948	PUMP CYLINDER	2136948 PUMP CYLINDER CILINDRO POMPA	-	1	Enquire
036	WHT003544	WASHER	WHT003544 WASHER RONDELLA	-	2	Enquire
037	2134973	SCREW	2134973 SCREW VITE FORATA	-	1	Enquire
038	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	-	2	Enquire
039	2133546	PIPE	2133546 PIPE TUBO	-	1	Enquire
