Lamborghini Diablo SV (1995-1997) - Pedals

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

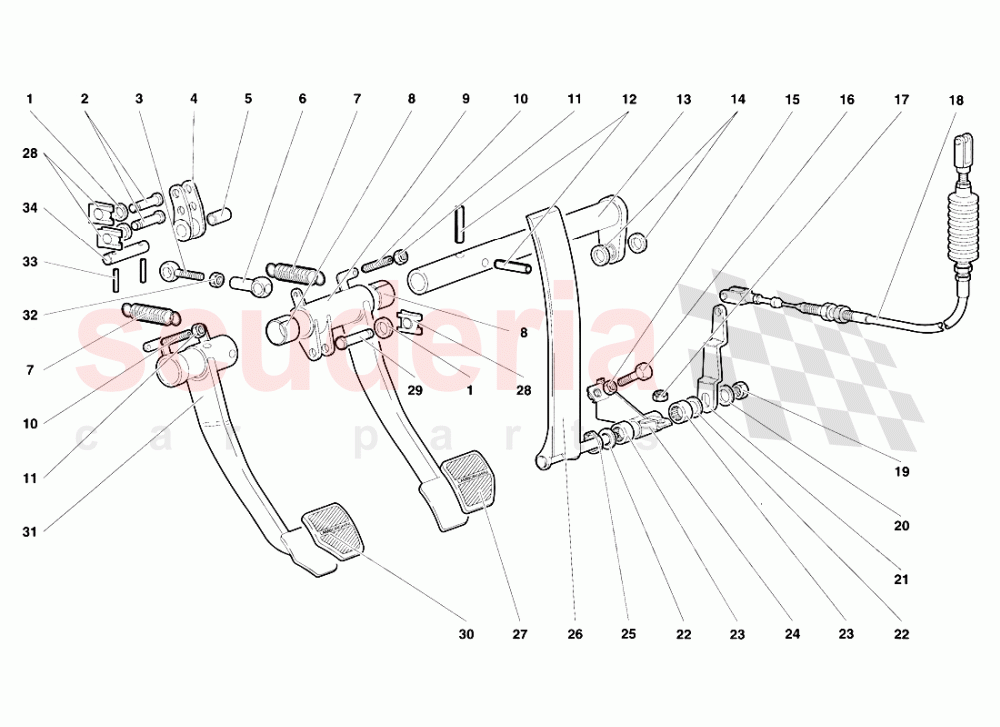

Pedals of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8401007
WASHER
RONDELLA 		$0.09 (98.8% off) 3
002 4232621
PIN
PERNO 		$37.65 (4.2% off) 2
003 4225062
TIE ROD
TIRANTE 		$65.51 (4.4% off) 1
004 4225060
ROCKER
BILANCIERE 		$75.31 (4.2% off) 1
005 8801209
BUSHING
BOCCOLA 		$9.55 (3.5% off) 1
006 4225061
COUPLING
TESTA A SNODO 		$68.25 (4.4% off) 1
007 1321270
SPRING
MOLLA 		$8.66 2
008 8802501
BUSHING
BOCCOLA 		$21.91 (4.3% off) 2
009 4234374
BRAKE PEDAL
PEDALE FRENO 		$462.79 1
010 4210834
ADJUSTING SLEEVE
TESTA REGISTRO 		$4.55 (3.2% off) 2
011 N01100637
NUT M6
DADO 		$0.33 (95.5% off) 2
012 8900803
PIN
SA 		$0.95 (86.8% off) 2
013 4225064
SHAFT
ALBERO 		- 1 Enquire
014 8400819
WASHER 8X12X1
RONDELLA 		$0.58 (92% off) 2
015 N01100845
HEXAGON NUT
DADO 		$1.89 1
016 8100828
SCREW
VITE 		$0.62 (91.5% off) 1
017 8200804
NUT M8
DADO 		$1.16 (84.1% off) 2
018 4230089
GAS CABLE
CAVO ACCELERATORE 		$1,146.41 1
019 8200804
NUT M8
DADO 		$1.16 (84.1% off) 1
020 8400801
WASHER
RONDELLA 		$0.68 1
021 4238042
LEVER
LEVA 		$34.07 (4.3% off) 1
022 8401220
WASHER
RONDELLA 		$5.99 (2.6% off) 2
023 8521205
BEARING
CUSCINETTO 		$11.04 (3.6% off) 2
024 4231811
SUPPORT - SUPPORTO
O 		$251.24 (4.1% off) 1
025 8581101
RETAINER RING
ANELLO RITEGNO 		$5.82 (3% off) 1
026 4230143
GAS PEDAL
E ACCELERATORE 		$547.15 (4.2% off) 1
027 4228351
PEDAL PAD
COPRIPEDALE GOMMA 		$74.41 1
028 8581004
CLIP
MOLLETTA 		$9.38 (3.3% off) 3
029 4232622
PIN
PERNO 		$26.58 1
030 4228349
PEDAL PAD
COPRIPEDALE GOMMA 		$47.19 1
031 4235355
CLUTCH PEDAL
PEDALE FRIZIONE 		$390.81 (4.2% off) 1
032 N10155210
NUT
DADO 		$1.96 (72.9% off) 1
