Differential of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

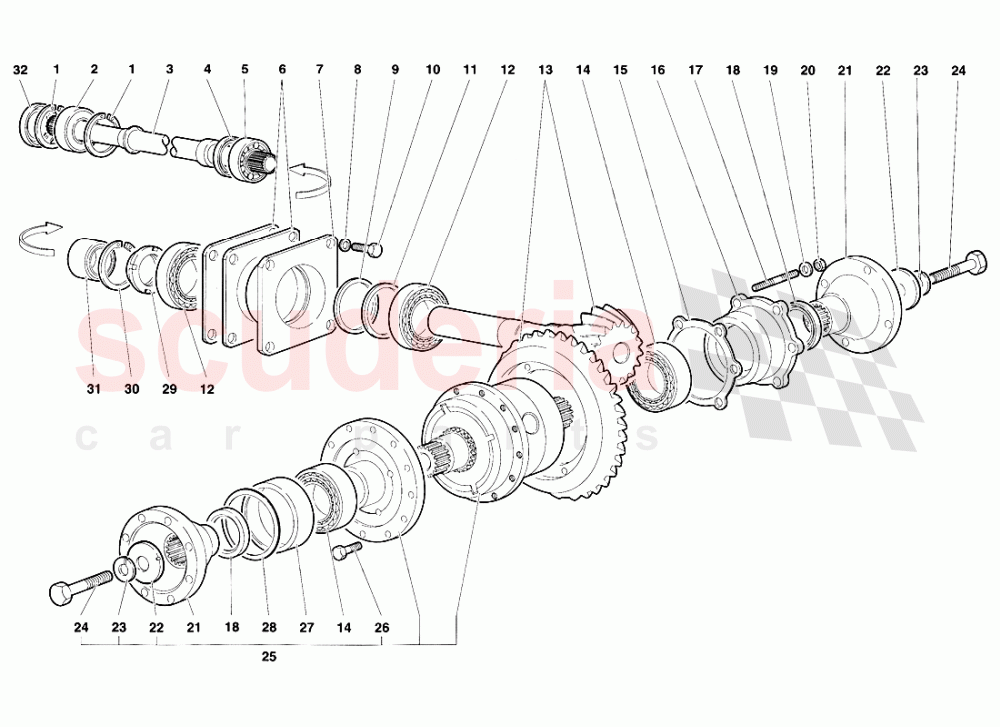

Lamborghini Diablo SV (1995-1997) - Differential

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8575501	RETAINING RING	8575501 RETAINING RING ANELLO RITEGNO	-	2	Enquire
002	410103520	BEARING	410103520 BEARING CUSCINETTO	-	1	Enquire
003	2330969	SHAFT	2330969 SHAFT ALBERO TRASMISSIONE	-	1	Enquire
004	8613508	SEAL	8613508 SEAL ANELLO TENUTA	-	1	Enquire
005	8503010	BEARING	8503010 BEARING CUSCINETTO	-	1	Enquire
006	2324939	SHIM	2324939 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
007	2324938	FLANGE	2324938 FLANGE FLANGIA	-	1	Enquire
008	8410815	WASHER	8410815 WASHER RONDELLA	-	4	Enquire
009	2330697	SHIM	2330697 SHIM SPESSORE Dl REGISTRO 0,15 MM	-	1	Enquire
009	2330695	SHIM	2330695 SHIM SPESSORE Dl REGISTRO 0,25 MM	-	1	Enquire
009	2330696	SHIM	2330696 SHIM SPESSORE Dl REGISTRO 0,2 MM	-	1	Enquire
009	2330693	SHIM	2330693 SHIM SPESSORE Dl REGISTRO 0,5 MM	-	1	Enquire
009	2330694	SHIM	2330694 SHIM SPESSORE Dl REGISTRO 0,3 MM	-	1	Enquire
010	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 VITE	-	4	Enquire
011	2328764	SPACER	2328764 SPACER DISTANZIALE	-	1	Enquire
012	8545004	BEARING	8545004 BEARING CUSCINETTO	-	2	Enquire
013	2335310	BEVEL SET	2335310 BEVEL SET COPPIACONICA	-	1	Enquire
014	8545002	BEARING	8545002 BEARING CUSCINETTO	-	2	Enquire
015	2324942	SHIM	2324942 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
016	2324452	FLANGE	2324452 FLANGE FLANGIA PORTACUSCINETTO	-	1	Enquire
017	8301022	STUD	8301022 STUD PRIGIONIERO	-	6	Enquire
018	8614507	SEAL	8614507 SEAL ANELLO TENUTA	-	2	Enquire
019	WHT000768	WASHER	WHT000768 WASHER	-	6	Enquire
020	N10155210	NUT	N10155210 NUT DADO	-	6	Enquire
021	2333623	FLANGE	2333623 FLANGE FLANGIA PORTA SEMIASSE	-	2	Enquire
022	2332653	WASHER	2332653 WASHER RONDELLA	-	2	Enquire
023	2332652	WASHER	2332652 WASHER RONDELLA	-	2	Enquire
024	2332651	SCREW	2332651 SCREW VITE	-	2	Enquire
025	2332210	KIT DIFFERENTIAL	2332210 KIT DIFFERENTIAL KIT DIFFERENZIALE	-	1	Enquire
026	2332650	SCREW	2332650 SCREW VITE	-	12	Enquire
027	2324940	BEARING CASE	2324940 BEARING CASE ANELLO PORTACUSCINETTO	-	1	Enquire
028	2331918	SHIM	2331918 SHIM SPESSORE Dl REGISTRO 0,3 MM	-	1	Enquire
028	2331917	SHIM	2331917 SHIM SPESSORE Dl REGISTRO 0,5 MM	-	1	Enquire
028	2331920	SHIM	2331920 SHIM SPESSORE Dl REGISTRO 0,2 MM	-	1	Enquire
028	2331919	SHIM	2331919 SHIM SPESSORE Dl REGISTRO 0,25 MM	-	1	Enquire
028	2331921	SHIM	2331921 SHIM SPESSORE Dl REGISTRO 0,15 MM	-	1	Enquire
029	8254503	PLUG	8254503 PLUG GHIERA	-	1	Enquire
030	8575002	RETAINER RING	8575002 RETAINER RING ANELLO RITEGNO	-	1	Enquire
031	8524014	BEARING	8524014 BEARING CUSCINETTO	-	1	Enquire
032	86311819	SEAL RING	86311819 SEAL RING	-	1	Enquire
