Lamborghini Diablo SV (1995-1997) - Climate Control 2

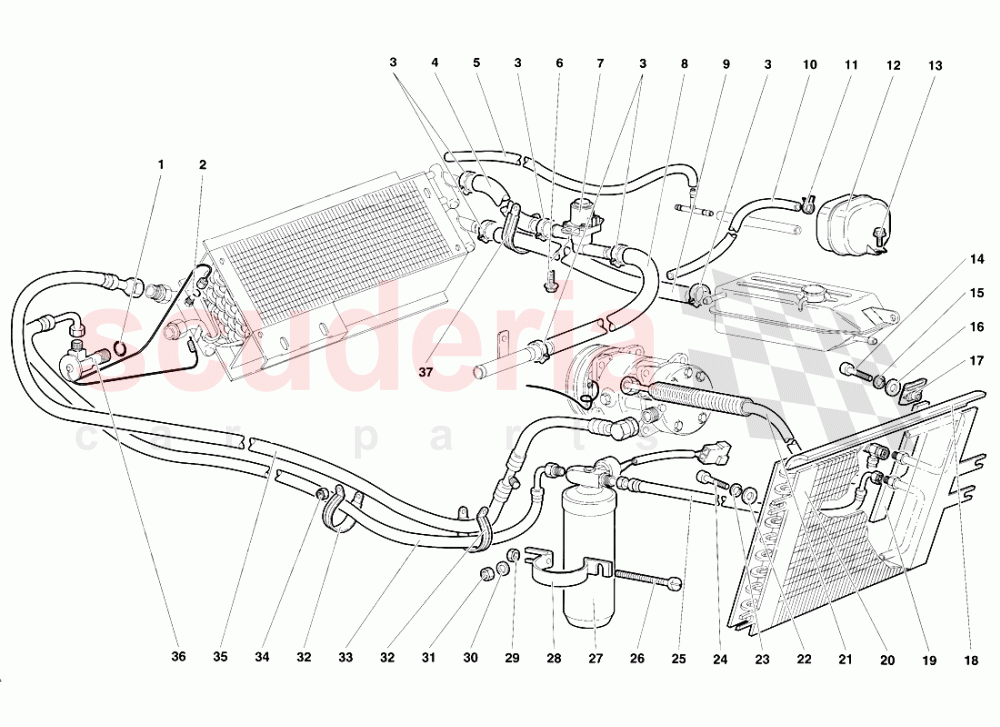

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4535912	SEAL	4535912 SEAL ANELLO TENUTA	-	1	Enquire
002	4535915	SEAL	4535915 SEAL ANELLO TENUTA	-	1	Enquire
003	8832003	CLAMP	8832003 CLAMP FASCETTA	-	6	Enquire
004	4734346	PIPE	4734346 PIPE TUBO	-	1	Enquire
005	9414600	PIPE	9414600 PIPE TUBO	-	1	Enquire
006	N90319404	SCREW	N90319404 SCREW VITE	-	2	Enquire
007	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	-	1	Enquire
008	4734347	PIPE	4734347 PIPE TUBO	-	1	Enquire
009	1734332	PIPE	1734332 PIPE TUBO	-	1	Enquire
010	6237078	PIPE	6237078 PIPE TUBO	-	1	Enquire
011	8830128	CLAMP	8830128 CLAMP FASCETTA	-	2	Enquire
012	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO VUOTO	-	1	Enquire
013	N90319404	SCREW	N90319404 SCREW VITE	-	2	Enquire
014	8700614	SCREW	8700614 SCREW VITE	-	2	Enquire
015	8410611	WASHER	8410611 WASHER RONDELLA	-	2	Enquire
016	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	2	Enquire
017	N90327506	SPEED NUT	N90327506 SPEED NUT MOLLETTA	-	2	Enquire
018	4531592	GASKET	4531592 GASKET GUARNIZIONE	-	2	Enquire
019	4531591	GASKET	4531591 GASKET GUARNIZIONE	-	2	Enquire
020	4531594	A/C CONDENSER	4531594 A/C CONDENSER CONDENSATORE CONDIZIONATORE	-	1	Enquire
021	4535413	PIPE	4535413 PIPE TUBO	-	1	Enquire
022	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	4	Enquire
023	8410611	WASHER	8410611 WASHER RONDELLA	-	4	Enquire
024	8700614	SCREW	8700614 SCREW VITE	-	4	Enquire
025	4535414	PIPE	4535414 PIPE TUBO	-	1	Enquire
026	8700542	SCREW	8700542 SCREW VITE	-	1	Enquire
027	4535411	FILTER	4535411 FILTER FILTRO DEIDRATORE	-	1	Enquire
028	4531395	STRAP	4531395 STRAP FASCETTA	-	1	Enquire
029	N0211963	NUT	N0211963 NUT DADO	-	1	Enquire
030	8400801	WASHER	8400801 WASHER RONDELLA	-	2	Enquire
031	8200804	NUT M8	8200804 NUT M8 DADO	-	2	Enquire
032	8834401	CLAMP	8834401 CLAMP FASCETTA	-	6	Enquire
033	4535415	PIPE	4535415 PIPE TUBO	-	1	Enquire
034	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	8	Enquire
035	4535416	PIPE	4535416 PIPE TUBO	-	1	Enquire
036	4535412	VALVE	4535412 VALVE VALVOLA Dl ESPANSIONE	-	1	Enquire
037	8834401	CLAMP	8834401 CLAMP FASCETTA	-	2	Enquire
