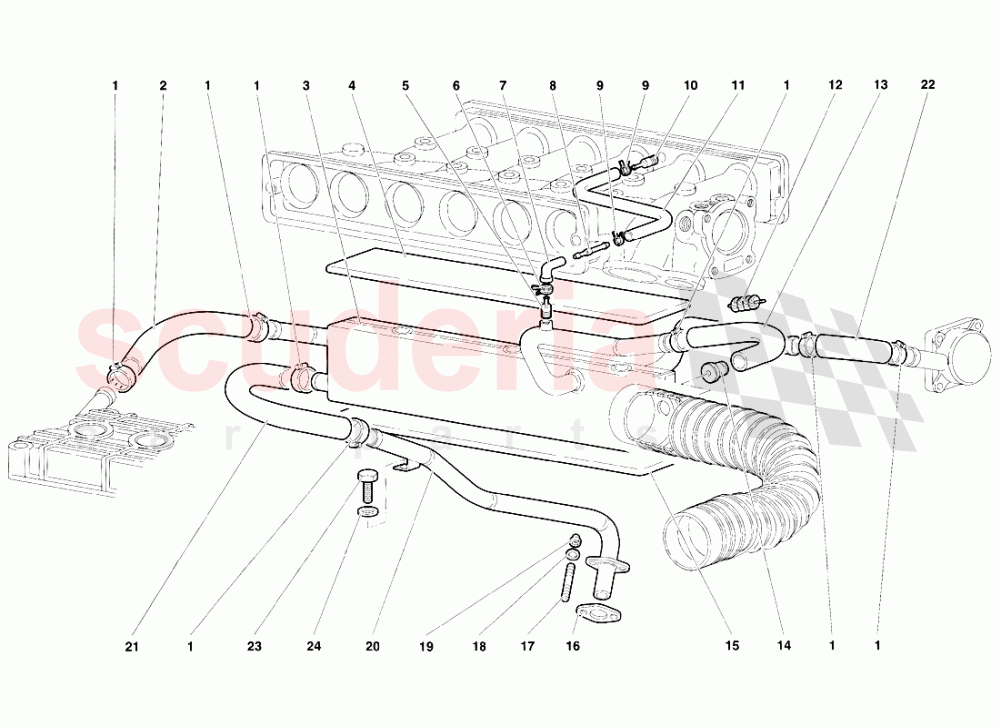

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8832003	CLAMP	8832003 CLAMP FASCETTA	-	7	Enquire
002	1533391	PIPE	1533391 PIPE TUBO	-	1	Enquire
003	1533385	TANK	1533385 TANK SERBATOIO	-	1	Enquire
004	1533448	INSULATOR	1533448 INSULATOR ISOLANTE	-	1	Enquire
005	1328721	CONNECTION	1328721 CONNECTION RACCORDO	-	1	Enquire
006	8830122	CLAMP	8830122 CLAMP FASCETTA	-	1	Enquire
007	7L131756	CONNECTOR	7L131756 CONNECTOR RACCORDO 90 -	-	1	Enquire
008	1329319	ADAPTER	1329319 ADAPTER RACCORDO	-	1	Enquire
009	8830128	CLAMP	8830128 CLAMP FASCETTA	-	2	Enquire
010	1328721	CONNECTION	1328721 CONNECTION RACCORDO	-	1	Enquire
011	1333445	PIPE	1333445 PIPE TUBO	-	1	Enquire
012	1532768	FLAME TRAP	1532768 FLAME TRAP SPEGNIFIAMMA	-	1	Enquire
013	1533775	PIPE	1533775 PIPE TUBO	-	1	Enquire
014	1333773	CONNECTION	1333773 CONNECTION RACCORDO	-	1	Enquire
015	1533447	INSULATOR	1533447 INSULATOR ISOLANTE	-	1	Enquire
016	1831058	GASKET	1831058 GASKET GUARNIZIONE	-	1	Enquire
017	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	-	2	Enquire
018	8400606	WASHER	8400606 WASHER RONDELLA	-	2	Enquire
019	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
020	1532643	PIPE	1532643 PIPE TUBO	-	1	Enquire
021	1532654	PIPE	1532654 PIPE TUBO	-	1	Enquire
022	1533390	PIPE	1533390 PIPE TUBO	-	1	Enquire
023	8100601	SCREW	8100601 SCREW VITE	-	1	Enquire
024	8410603	WASHER	8410603 WASHER RONDELLA	-	1	Enquire
