Climate Control 1

Lamborghini Diablo SV (1995-1997)

Find Your Part

Lamborghini Diablo SV (1995-1997) - Climate Control 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

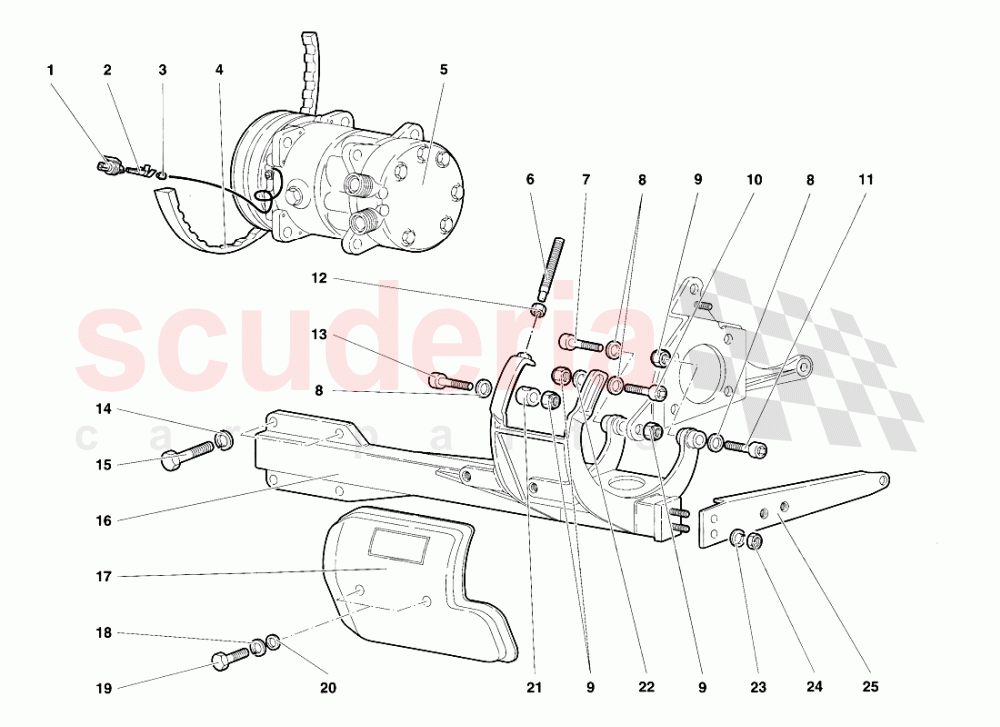

Climate Control 1 of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6136453
CONNECTION
CONNESSIONE 		- 1 Enquire
002 6136454
KEY
LINGUETTA 		- 1 Enquire
003 6136447
RUBBER
GOMMA 		- 1 Enquire
004 4534071
BELT
CINGHIA 		$428.46 1
005 4535409
AIR COMPRESSOR
COMPRESSORE 		$1,433.00 1
006 8700841
SCREW
VITE
IN STOCK 		$2.23 (5.1% off) 1
007 N10667901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
VITE
IN STOCK 		$3.05 1
008 WHT000768
WASHER
IN STOCK 		$1.96 (73.1% off) 4
009 8201008
NUT
DADO
IN STOCK 		$0.80 (89% off) 4
010 8701017
SCREW
VITE 		$0.95 (86.9% off) 1
011 8701014
SCREW
VITE 		$0.34 (95.4% off) 1
012 N01100845
HEXAGON NUT
DADO
IN STOCK 		$1.89 1
013 8701020
SCREW
VITE 		$1.55 (78.3% off) 1
014 WHT000771
WASHER
RONDELLA
IN STOCK 		$1.19 4
015 N0124032
SCREW
VITE 		- 4 Enquire
016 4535242
SUPPORT - SUPPORTO
O 		$547.15 (1.1% off) 1
017 4535934
SHIELD
PROTEZIONE 		$349.88 (1.2% off) 1
018 8410602
WASHER
RONDELLA
IN STOCK 		$44.87 2
019 8100601
SCREW
VITE 		$0.27 2
020 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 2
021 4529646
SPACER
DISTANZIALE 		$24.78 (1.1% off) 1
022 N0122115
WASHER
RONDELLA
IN STOCK 		$0.80 (89% off) 1
023 WHT000771
WASHER
RONDELLA
IN STOCK 		$1.19 2
024 N01100845
HEXAGON NUT
DADO
IN STOCK 		$1.89 2
025 4529645
TIE ROD
TIRANTE 		$395.79 1
