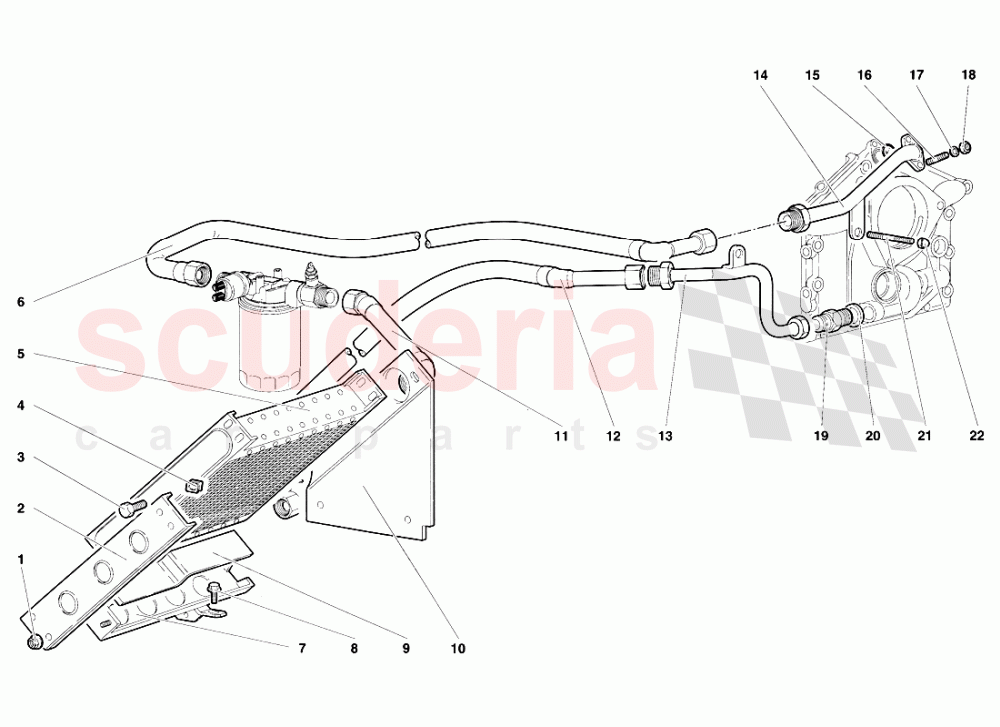

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	2	Enquire
002	4135992	BRACKET	4135992 BRACKET STAFFA	-	1	Enquire
003	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
004	N90327506	SPEED NUT	N90327506 SPEED NUT	-	2	Enquire
005	7M117021	OIL RADIATOR	7M117021 OIL RADIATOR	-	1	Enquire
006	1535078	PIPE	1535078 PIPE TUBO	-	1	Enquire
007	4135987	SUPPORT - SUPPORTO	4135987 SUPPORT - SUPPORTO O	-	1	Enquire
008	N90319404	SCREW	N90319404 SCREW VITE	-	2	Enquire
009	410813585	RUBBER WEATHER-	410813585 RUBBER WEATHER- ISOLANTE	-	1	Enquire
010	4133295	SUPPORT - SUPPORTO	4133295 SUPPORT - SUPPORTO PANNELLO - SUPPORTO	-	1	Enquire
011	1535077	FLEX. HOSE	1535077 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
012	1535076	FLEX. HOSE	1535076 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
013	1537686	PIPE	1537686 PIPE TUBO	-	1	Enquire
014	1535967	PIPE	1535967 PIPE TUBO	-	1	Enquire
015	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	-	1	Enquire
016	8300828	STUD	8300828 STUD PRIGIONIERO	-	2	Enquire
017	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	2	Enquire
018	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	2	Enquire
019	1529610	CONNECTION	1529610 CONNECTION RACCORDO	-	1	Enquire
020	8403006	WASHER	8403006 WASHER RONDELLA	-	1	Enquire
021	8300905	STUD	8300905 STUD PRIGIONIERO	-	1	Enquire
022	8200816	NUT	8200816 NUT DADO	-	1	Enquire
