Lamborghini Diablo SE30 (1993-1995) - Electrical System (Valid for USA - January 1995) 2

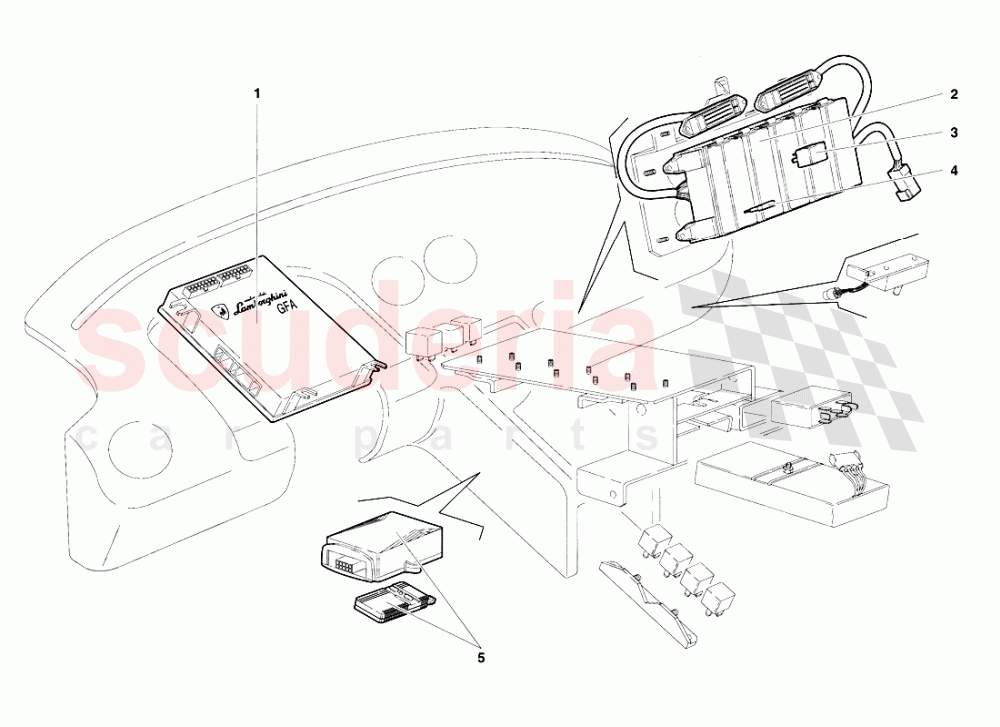

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6034073	GFA E.C.U.	6034073 GFA E.C.U. (Valid for USA - January 1995) CENTRALINA GFA	-	1	Enquire
002	6135136	RELAY CASE	6135136 RELAY CASE (Valid for USA - January 1995) SCATOLA RELAY	-	1	Enquire
003	6034961	RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112	6034961 RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112 (Valid for USA - January 1995) BOSCH 0.332.014.112	-	2	Enquire
003	6036297	RELAY	6036297 RELAY (Valid for USA - January 1995) ITALAMEC 064	-	3	Enquire
003	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 (Valid for USA - January 1995) BOSCH 0.332.015.006	-	1	Enquire
003	6033965	DIODES ASSEMBLY	6033965 DIODES ASSEMBLY (Valid for USA - January 1995) ITALAMEC 454.10	-	1	Enquire
003	6036296	RELAY	6036296 RELAY (Valid for USA - January 1995) ITALAMEC 160	-	4	Enquire
004	1626192	FUSE	1626192 FUSE (Valid for USA - January 1995) FUSIBILE 5 AMP.	-	4	Enquire
004	1626697	FUSE	1626697 FUSE (Valid for USA - January 1995) FUSIBILE 10 AMP.	-	6	Enquire
004	1629257	FUSE	1629257 FUSE (Valid for USA - January 1995) FUSIBILE 7.5 AMP.	-	3	Enquire
004	1629259	FUSE	1629259 FUSE (Valid for USA - January 1995) FUSIBILE 30 AMP.	-	1	Enquire
004	1626193	FUSE	1626193 FUSE (Valid for USA - January 1995) FUSIBILE 15 AMP.	-	8	Enquire
005	5934377	REMO. LOCKING E.C.U.	5934377 REMO. LOCKING E.C.U. (Valid for USA - January 1995) CENTRALINA CHIUSURA CENTR.	-	1	Enquire
