Lamborghini Diablo SE30 (1993-1995) - Electrical System (Until SE 079-150) 2

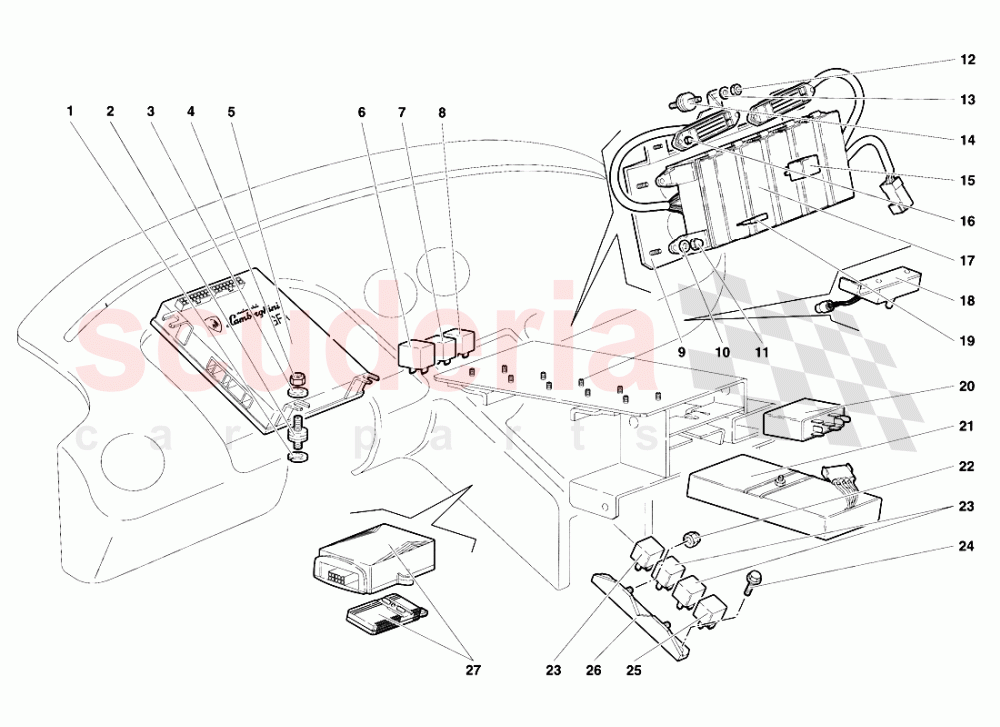

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	3
002	8920603	ELASTIC SUPPORT	8920603 ELASTIC SUPPORT SUPPORTO ELASTICO	-	3	Enquire
003	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
004	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	3
005	6033362	E.C.U. GFA	6033362 E.C.U. GFA CENTRALINA GFA	-	1	Enquire
006	6030676	RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10	6030676 RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10	$157.58 MSRP: ~~160.00~~ (1.5% off)	1
007	6036297	RELAY	6036297 RELAY ITALAMEC 064	$40.09 MSRP: ~~41.90~~ (4.3% off)	1
008	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 87B BOSCH 0.332.015.006	$57.69	1
009	6135155	SUPPORT - SUPPORTO	6135155 SUPPORT - SUPPORTO PIASTRA SUPPORTO	$144.56	1
010	8400620	WASHER	8400620 WASHER RONDELLA	$1.50 MSRP: ~~7.38~~ (79.7% off)	4
011	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	4
012	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	1
013	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	1
014	8920603	ELASTIC SUPPORT	8920603 ELASTIC SUPPORT SUPPORTO ELASTICO	-	1	Enquire
015	6036296	RELAY	6036296 RELAY ITALAMEC 160	$21.16 MSRP: ~~22.10~~ (4.3% off)	5
015	6034961	RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112	6034961 RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112 87 BOSCH 0.332.01 4.1 12	$46.03	2
015	6033965	DIODES ASSEMBLY	6033965 DIODES ASSEMBLY ITALAMEC 454.10	$75.80	1
015	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 87B BOSCH 0.332.015.006	$57.69	1
015	6036297	RELAY	6036297 RELAY ITALAMEC 064	$40.09 MSRP: ~~41.90~~ (4.3% off)	3
016	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	4
017	6135124	RELAYS CASE	6135124 RELAYS CASE SCATOLA RELAY	$1,240.49	1
018	6035196	H. LAMP LIFT. SWITCH	6035196 H. LAMP LIFT. SWITCH INTERRUTTORE ALZAFARI	$342.43	1
019	1629259	FUSE	1629259 FUSE FUSIBILE DA 30 AMP.	$0.61	1
019	1626193	FUSE	1626193 FUSE FUSIBILE DA 15 AMP.	$0.61	8
019	1629257	FUSE	1629257 FUSE FUSIBILE DA 7,5 AMP.	$1.50	3
019	1626192	FUSE	1626192 FUSE FUSIBILEDA5AMP.	$0.61	5
019	1626697	FUSE	1626697 FUSE FUSIBILEDA10AMP.	$0.61	5
020	5929915	LOCKING E.C.U.	5929915 LOCKING E.C.U. CENTR. CHIUSURA CENTR.	$444.38	1
021	6030677	E.C.U.	6030677 E.C.U. CENTRALINA LOW TIRE	$676.17	1
022	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	2
023	6036296	RELAY	6036296 RELAY ITALAMEC 160	$21.16 MSRP: ~~22.10~~ (4.3% off)	3
024	8700667	SCREW IN STOCK	8700667 SCREW VITE IN STOCK	$1.10	2
025	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 87B BOSCH 0.332.015.006	$57.69	1
026	6134958	SUPPORT - SUPPORTO	6134958 SUPPORT - SUPPORTO O	$57.16	1
027	5934376	REMO. LOCKING E.C.U.	5934376 REMO. LOCKING E.C.U. COMANDO CHIUSURA CENTR.	$917.70	1
