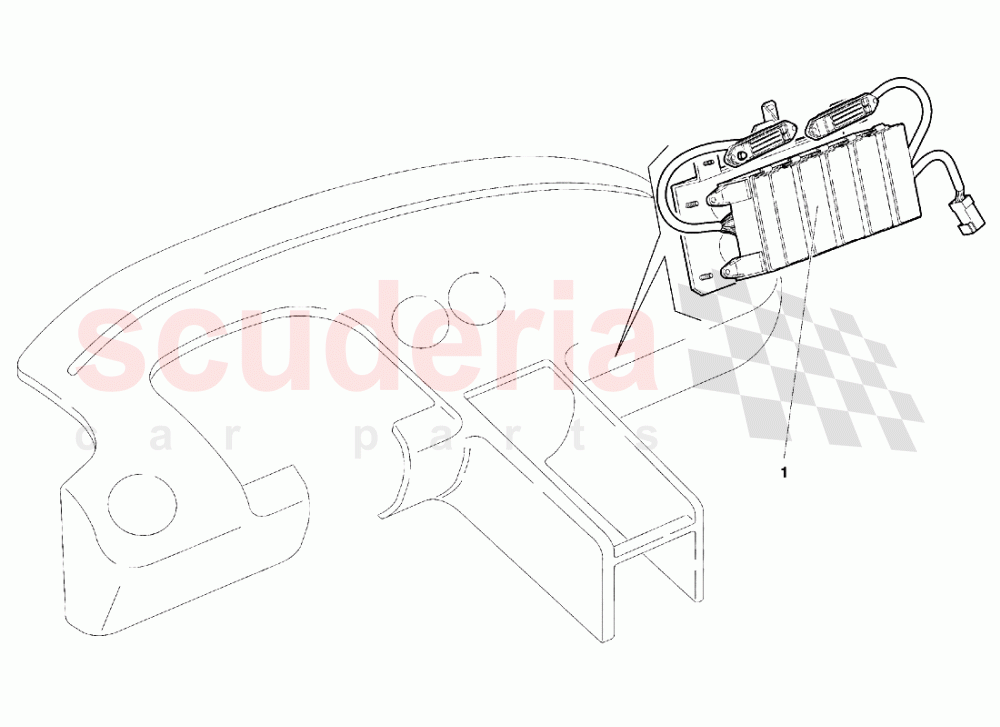

Lamborghini Diablo SE30 (1993-1995) - Electrical System (From SE 080-150) 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8410611	WASHER	8410611 WASHER RONDELLA	-	3	Enquire
001	6136111	RELAIS CASE	6136111 RELAIS CASE SCATOLA RELAY	-	1	Enquire
002	8920603	ELASTIC SUPPORT	8920603 ELASTIC SUPPORT SUPPORTO ELASTICO	-	3	Enquire
003	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	3	Enquire
004	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	3	Enquire
005	6033362	E.C.U. GFA	6033362 E.C.U. GFA CENTRALINA GFA	-	1	Enquire
006	6030676	RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10	6030676 RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10	-	1	Enquire
007	6036297	RELAY	6036297 RELAY ITALAMEC 064	-	1	Enquire
008	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 87B BOSCH 0.332.015.006	-	1	Enquire
009	6135155	SUPPORT - SUPPORTO	6135155 SUPPORT - SUPPORTO PIASTRA SUPPORTO	-	1	Enquire
010	8400620	WASHER	8400620 WASHER RONDELLA	-	4	Enquire
011	8200605	NUT	8200605 NUT DADO	-	4	Enquire
012	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	1	Enquire
013	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	1	Enquire
014	8920603	ELASTIC SUPPORT	8920603 ELASTIC SUPPORT SUPPORTO ELASTICO	-	1	Enquire
015	6034961	RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112	6034961 RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112 87 BOSCH 0.332.014.1 12	-	2	Enquire
015	6036296	RELAY	6036296 RELAY ITALAMEC 160	-	5	Enquire
015	6033965	DIODES ASSEMBLY	6033965 DIODES ASSEMBLY ITALAMEC 454.10	-	1	Enquire
015	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 87B BOSCH 0.332.015.006	-	1	Enquire
015	6036297	RELAY	6036297 RELAY ITALAMEC 064	-	3	Enquire
016	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	-	4	Enquire
017	6135124	RELAYS CASE	6135124 RELAYS CASE SCATOLA RELAY	-	1	Enquire
018	6035196	H. LAMP LIFT. SWITCH	6035196 H. LAMP LIFT. SWITCH INTERRUTTORE ALZAFARI	-	1	Enquire
019	1626193	FUSE	1626193 FUSE FUSIBILEDA15AMP.	-	8	Enquire
019	1629259	FUSE	1629259 FUSE FUSIBILEDA30AMP.	-	1	Enquire
019	1629257	FUSE	1629257 FUSE FUSIBILEDA7.5AMP.	-	3	Enquire
019	1626192	FUSE	1626192 FUSE FUSIBILEDA5AMP.	-	5	Enquire
019	1626697	FUSE	1626697 FUSE FUSIBILEDA10AMP.	-	5	Enquire
020	5929915	LOCKING E.C.U.	5929915 LOCKING E.C.U. CENTR. CHIUSURA CENTR.	-	1	Enquire
021	6030677	E.C.U.	6030677 E.C.U. CENTRALINA LOW TIRE	-	1	Enquire
022	8200605	NUT	8200605 NUT DADO	-	2	Enquire
023	6036296	RELAY	6036296 RELAY ITALAMEC 160	-	3	Enquire
024	8700667	SCREW	8700667 SCREW VITE	-	2	Enquire
025	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 87B BOSCH 0.332.015.006	-	1	Enquire
026	6134958	SUPPORT - SUPPORTO	6134958 SUPPORT - SUPPORTO O	-	1	Enquire
027	5934376	REMO. LOCKING E.C.U.	5934376 REMO. LOCKING E.C.U. COMANDO CHIUSURA CENTR.	-	1	Enquire
