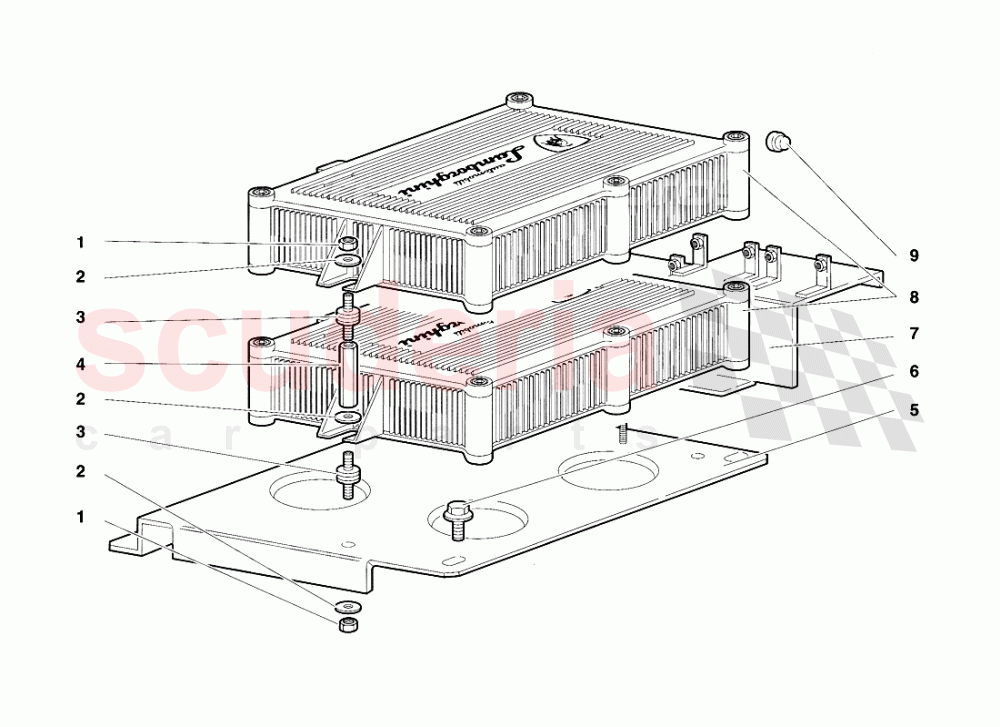

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	6
002	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	12
003	8920603	ELASTIC SUPPORT	8920603 ELASTIC SUPPORT SUPPORTO ELASTICO	-	6	Enquire
004	2032381	STUD	2032381 STUD COLONNETTA	-	3	Enquire
005	2035314	PLATE	2035314 PLATE PIASTRA SUPPORTO CENTRALINE	-	1	Enquire
006	N90319404	SCREW	N90319404 SCREW VITE	$1.89	3
007	6135296	SUPPORT - SUPPORTO	6135296 SUPPORT - SUPPORTO PIASTRA	$318.45	1
008	2034991	ELECT. CONTROL UNIT	2034991 ELECT. CONTROL UNIT CENTRALINA ELETTRONICA	$6,098.01	2
009	2031276	PLUG	2031276 PLUG TAPPO	$32.02	2
