Ignition Distributor and Phase Sensors of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

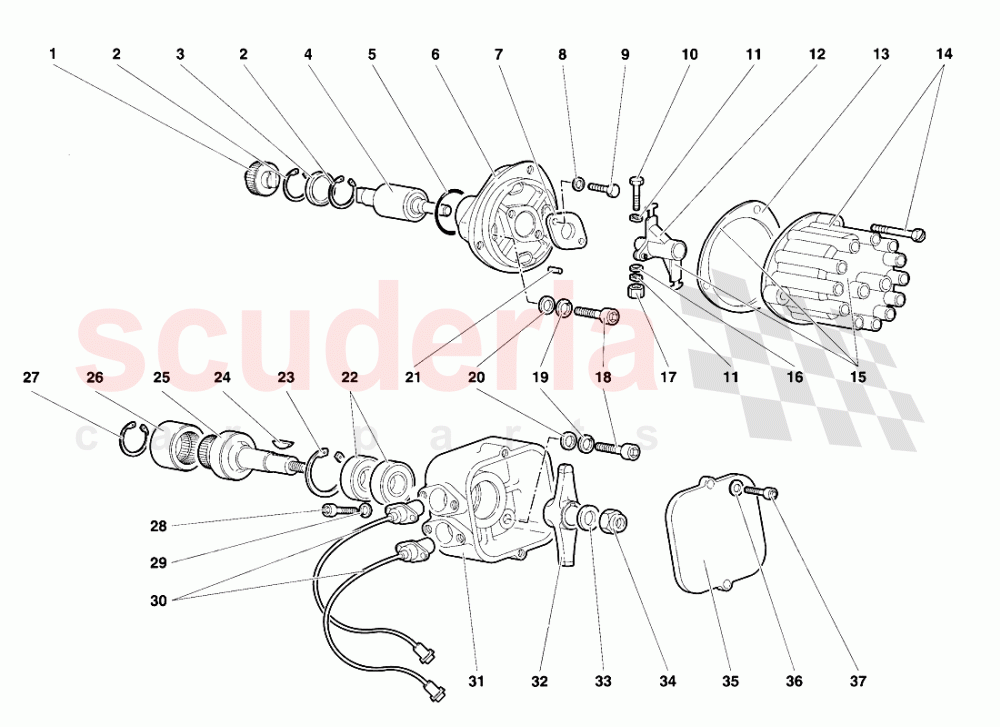

Lamborghini Diablo SE30 (1993-1995) - Ignition Distributor and Phase Sensors

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1625447	COUPLING	1625447 COUPLING GIUNTO	$263.64	1
002	8573202	RETAINER RING	8573202 RETAINER RING ANELLO RITEGNO	$5.59	2
003	7L103051	Oil Seal IN STOCK	7L103051 Oil Seal IN STOCK	$37.08	1
004	1625446	BEARING	1625446 BEARING ALBERO CUSCINETTO	$193.55	1
004	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR (replaces: 001625411)	$700.59	2
005	8604601	RING IN STOCK	8604601 RING ANELLO TENUTA IN STOCK	$2.67	1
006	1625303	FLANGE	1625303 FLANGE SUPP. DISTRIBUZ.	$848.62	1
007	1629805	FLANGE	1629805 FLANGE LAMIERINO	$25.94	1
008	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	2
009	8100508	SCREW	8100508 SCREW VITE	$5.82	2
010	8100516	SCREW	8100516 SCREW VITE	$5.59	1
011	8410503	WASHER	8410503 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
012	1627730	ROTOR ARM	1627730 ROTOR ARM	$1,968.56	1
013	1627729	GASKET	1627729 GASKET GUARNIZIONE	$15.39	1
014	1627728	CAP	1627728 CAP CALOTTA	$1,534.32	1
015	1625445	IGNITION DISTRIB	1625445 IGNITION DISTRIB DISTRIBUTORE ACCENSIONE	$2,808.11	1
016	8400507	WASHER	8400507 WASHER RONDELLA	-	1	Enquire
017	8200509	NUT	8200509 NUT DADO	-	1	Enquire
018	8700608	SCREW IN STOCK	8700608 SCREW VITE IN STOCK	$0.55 MSRP: ~~7.36~~ (92.5% off)	8
019	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	8
020	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	8
021	8850201	DOWEL	8850201 DOWEL GRAND	$44.56	1
022	410109264	BEARING IN STOCK	410109264 BEARING CUSCINETTO IN STOCK	$29.09	2
023	7M109381	RETAINING RING IN STOCK	7M109381 RETAINING RING ANELLO RITEGNO IN STOCK	$1.68 MSRP: ~~7.14~~ (76.5% off)	1
024	8860301	LOCK KEY	8860301 LOCK KEY CHIAVETTA	$1.10	1
025	1629249	SMALL SHAFT	1629249 SMALL SHAFT ALBERINO	$411.92	1
026	1624409	COUPLING	1624409 COUPLING GIUNTO	$289.50	1
027	8573202	RETAINER RING	8573202 RETAINER RING ANELLO RITEGNO	$5.59	1
028	N10648502	SCREW M5X10 IN STOCK	N10648502 SCREW M5X10 VITE IN STOCK	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
029	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	4
030	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$700.59	2
031	1629776	CASE	1629776 CASE SCATOLA PICK-UP	$569.48	1
032	1632285	PULSE GENERATOR	1632285 PULSE GENERATOR GENERATORE Dl IMPULSI	$357.32	1
033	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	1
034	8200819	NUT	8200819 NUT DADO	$5.82	1
035	1634715	COVER	1634715 COVER COPERCHIO	$71.11	1
036	8410503	WASHER	8410503 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
037	8700504	SCREW	8700504 SCREW VITE	$0.09	2
