Crankase and Lower Mounting of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

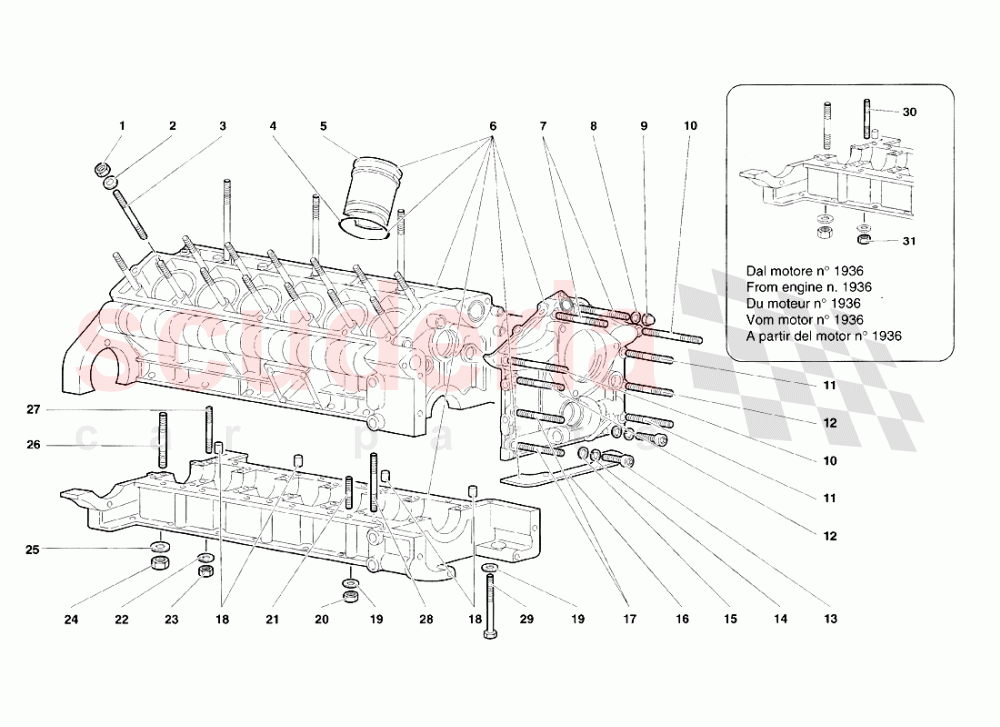

Lamborghini Diablo VT Roadster (1998-2000) - Crankase and Lower Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120924	CAP NUT	1120924 CAP NUT DADO	-	28	Enquire
002	8401230	WASHER	8401230 WASHER RONDELLA	-	28	Enquire
003	1824761	STUD BOLT	1824761 STUD BOLT PRIGIONIERO	-	28	Enquire
004	WHT003085	SEAL RING	WHT003085 SEAL RING ANELLO TENUTA	-	12	Enquire
005	1829442	CYLINDER	1829442 CYLINDER CILINDRO	-	12	Enquire
007	8300904	STUD	8300904 STUD PRIGIONIERO 45 MM	-	2	Enquire
008	N0122094	WASHER	N0122094 WASHER RONDELLA	-	9	Enquire
009	8200816	NUT	8200816 NUT DADO	-	9	Enquire
010	8300905	STUD	8300905 STUD PRIGIONIERO 55 MM	-	2	Enquire
011	8300902	STUD BOLT	8300902 STUD BOLT PRIGIONIERO 35 MM	-	4	Enquire
012	N0444416	STUD BOLT	N0444416 STUD BOLT PRIGIONIERO 40 MM	-	2	Enquire
013	8700822	SCREW	8700822 SCREW VITE	-	2	Enquire
014	N0152785	WASHER	N0152785 WASHER RONDELLA	-	2	Enquire
015	N0122094	WASHER	N0122094 WASHER RONDELLA	-	2	Enquire
016	1232219	GASKET	1232219 GASKET GUARNIZIONE	-	1	Enquire
017	8300902	STUD BOLT	8300902 STUD BOLT PRIGIONIERO 35 MM	-	2	Enquire
018	8851105	DOWEL	8851105 DOWEL GRAND	-	4	Enquire
019	8410815	WASHER	8410815 WASHER RONDELLA	-	15	Enquire
020	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	13	Enquire
021	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	-	2	Enquire
021	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO 25 MM	-	10	Enquire
022	8400820	WASHER	8400820 WASHER RONDELLA	-	14	Enquire
023	8200805	NUT	8200805 NUT DADO	-	14	Enquire
024	8201221	NUT	8201221 NUT DADO	-	14	Enquire
025	8401227	WASHER	8401227 WASHER RONDELLA	-	14	Enquire
026	8301238	STUD BOLT	8301238 STUD BOLT PRIGIONIERO	-	14	Enquire
027	8300886	STUD	8300886 STUD PRIGIONIERO	-	14	Enquire
028	8300884	STUD	8300884 STUD PRIGIONIERO 95 MM	-	1	Enquire
029	8100871	SCREW	8100871 SCREW VITE 95 MM	-	2	Enquire
030	8300917	STUD BOLT	8300917 STUD BOLT PRIGIONIERO	-	14	Enquire
031	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	14	Enquire
