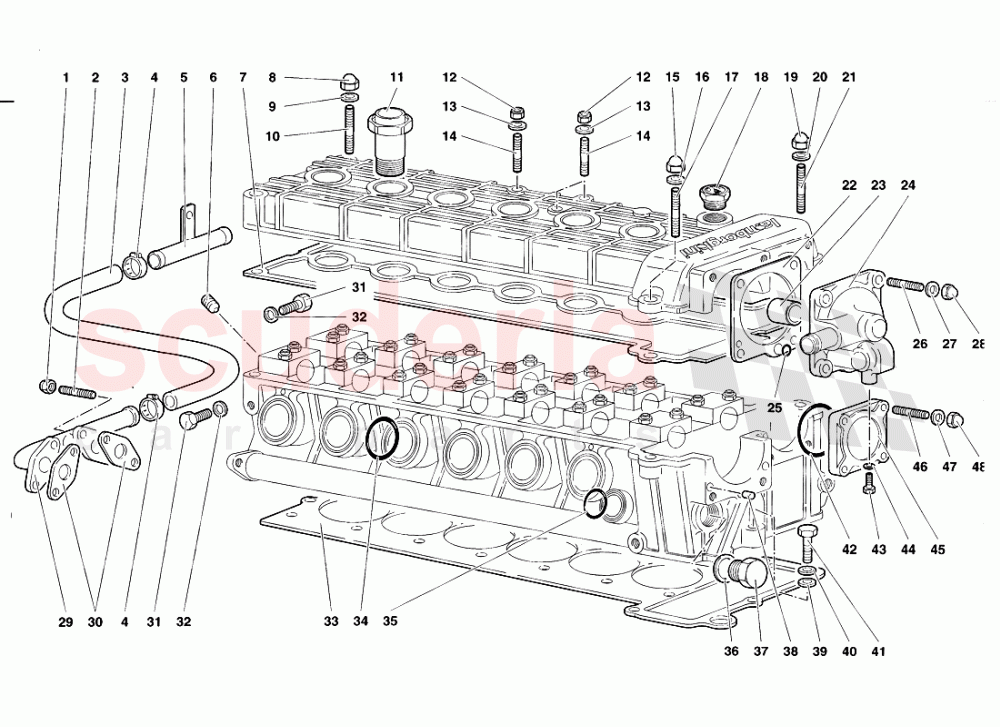

Lamborghini Diablo VT Roadster (1998-2000) - Accessories for Left Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT	8200605 NUT DADO	-	4	Enquire
002	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	-	4	Enquire
003	410819370	Sleeve for Auxiliary Water Pump	410819370 Sleeve for Auxiliary Water Pump TUBO	-	1	Enquire
004	8832003	CLAMP	8832003 CLAMP FASCETTA	-	2	Enquire
005	1730064	CONNECTION	1730064 CONNECTION GIUNZIONE INTERMEDIA	-	1	Enquire
006	8700852	SCREW	8700852 SCREW TAPPO	-	1	Enquire
007	11001012	GASKET	11001012 GASKET GUARNIZIONE	-	1	Enquire
008	8200605	NUT	8200605 NUT DADO	-	1	Enquire
009	8410602	WASHER	8410602 WASHER RONDELLA	-	1	Enquire
010	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	-	1	Enquire
011	1134281	UNION	1134281 UNION BOCCHETTONE	-	6	Enquire
012	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	3	Enquire
013	8400606	WASHER	8400606 WASHER RONDELLA	-	3	Enquire
014	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	-	3	Enquire
015	8200605	NUT	8200605 NUT DADO	-	1	Enquire
016	8410602	WASHER	8410602 WASHER RONDELLA	-	1	Enquire
017	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	-	1	Enquire
018	1136032	CAP	1136032 CAP TAPPO INTRODUZIONE	-	1	Enquire
019	8200605	NUT	8200605 NUT DADO	-	1	Enquire
020	8410602	WASHER	8410602 WASHER RONDELLA	-	1	Enquire
021	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	-	1	Enquire
022	11001010	GASKET	11001010 GASKET GUARNIZIONE	-	1	Enquire
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	-	1	Enquire
024	11001059	VENT PIPE - COVER	11001059 VENT PIPE - COVER COPERCHIO - SFIATO	-	1	Enquire
025	8600903	SEAL	8600903 SEAL ANELLOTENUTA	-	1	Enquire
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	4	Enquire
027	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	4	Enquire
028	8200816	NUT	8200816 NUT DADO	-	4	Enquire
029	1734153	PIPE	1734153 PIPE RACCORDO	-	1	Enquire
030	1121254	GASKET	1121254 GASKET GUARNIZIONE	-	2	Enquire
031	8100839	SCREW	8100839 SCREW VITE	-	2	Enquire
032	8400802	WASHER	8400802 WASHER RONDELLA	-	2	Enquire
033	11000988	Gasket	11000988 Gasket GUARNIZIONE	-	1	Enquire
034	8604703	SEAL RING	8604703 SEAL RING ANELLOTENUTA	-	6	Enquire
035	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	-	2	Enquire
036	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
037	7M103035	PLUG	7M103035 PLUG	-	1	Enquire
038	8850616	DOWEL	8850616 DOWEL GRAND	-	2	Enquire
039	N0122094	WASHER	N0122094 WASHER RONDELLA	-	1	Enquire
040	N0152785	WASHER	N0152785 WASHER RONDELLA	-	1	Enquire
041	8100807	SCREW	8100807 SCREW VITE	-	1	Enquire
042	8606205	O-Ring	8606205 O-Ring ANELLOTENUTA	-	3	Enquire
043	8100631	SCREW	8100631 SCREW VITE	-	1	Enquire
044	WHT003041	WASHER	WHT003041 WASHER RONDELLA	-	1	Enquire
045	1114502	COVER	1114502 COVER COPERCHIO	-	3	Enquire
046	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	-	12	Enquire
047	8400620	WASHER	8400620 WASHER RONDELLA	-	12	Enquire
048	8200605	NUT	8200605 NUT DADO	-	12	Enquire
