Lamborghini Diablo VT Roadster (1998-2000) - Air Filters

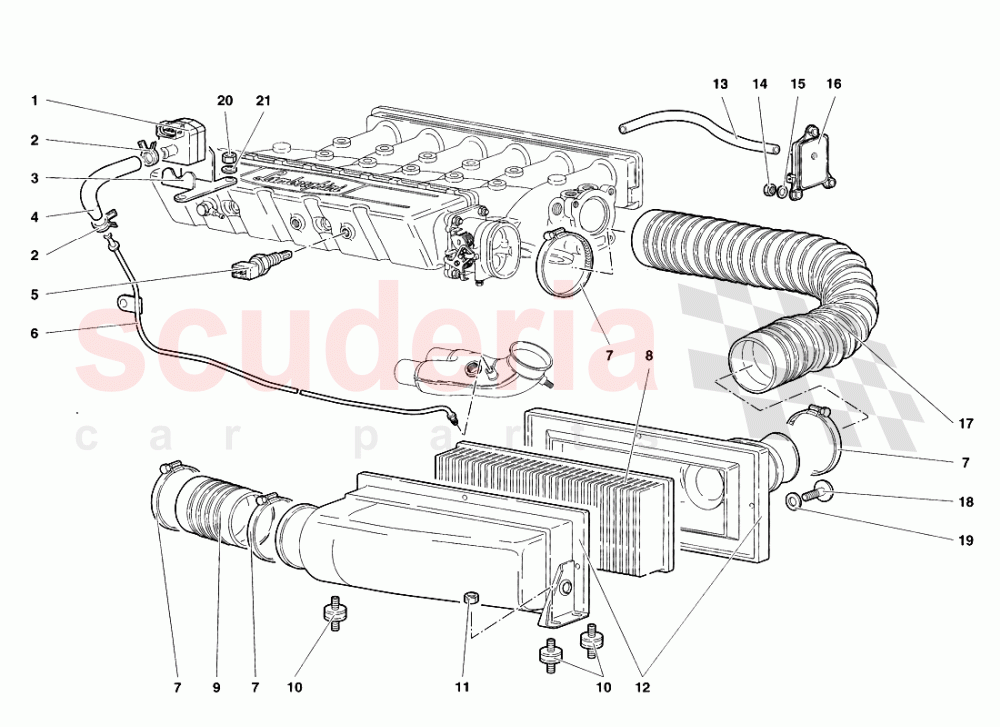

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	20001200	SENSOR - SENSORE	20001200 SENSOR - SENSORE	-	2	Enquire
002	8830131	CLAMP	8830131 CLAMP FASCETTA	-	4	Enquire
003	20001196	RIGHT SUPPORT	20001196 RIGHT SUPPORT SUPPORTO DX	-	1	Enquire
003	20001197	LEFT SUPPORT	20001197 LEFT SUPPORT SUPPORTO SX	-	1	Enquire
004	20001201	PIPE	20001201 PIPE TUBO	-	2	Enquire
005	7M919529	Air Temperature Sensor	7M919529 Air Temperature Sensor	-	2	Enquire
006	20001299	LEFT PIPE	20001299 LEFT PIPE (Valid for U.S.A 1998) TUBOSX	-	1	Enquire
006	20001298	RIGHT PIPE	20001298 RIGHT PIPE (Valid for CANADA 1998) TUBO DX	-	1	Enquire
006	20001299	LEFT PIPE	20001299 LEFT PIPE (Valid for CANADA 1998) TUBO SX	-	1	Enquire
006	20001198	RIGHT PIPE	20001198 RIGHT PIPE TUBO DX	-	1	Enquire
006	20001298	RIGHT PIPE	20001298 RIGHT PIPE (Valid for U.S.A 1998) TUBO DX	-	1	Enquire
006	20001199	LEFT PIPE	20001199 LEFT PIPE TUBO SX	-	1	Enquire
007	8838701	STRAP	8838701 STRAP FASCETTA	-	8	Enquire
008	7M133843	Air Filter ARRIVING SOON	7M133843 Air Filter ARRIVING SOON	-	2	Enquire
009	1330523	FLEX. HOSE	1330523 FLEX. HOSE TUBO	-	2	Enquire
010	9411508	ELASTIC SUPPORT	9411508 ELASTIC SUPPORT SUPPORTO ELASTICO	-	6	Enquire
011	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	6	Enquire
012	13001301	LEFT CASE	13001301 LEFT CASE SCATOLA FILTRO ARIA SX	-	1	Enquire
012	13001300	RIGHT CASE	13001300 RIGHT CASE SCATOLA FILTRO ARIA DX	-	1	Enquire
013	1330454	PIPE	1330454 PIPE TUBO	-	2	Enquire
014	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	6	Enquire
015	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	6	Enquire
016	7M919529A	PRESSURE SENSOR	7M919529A PRESSURE SENSOR SENSORE PRESSIONE	-	2	Enquire
017	1333774	LEFT FLEX. HOSE	1333774 LEFT FLEX. HOSE TUBO SX	-	1	Enquire
017	1331286	RIGHT FLEX. HOSE	1331286 RIGHT FLEX. HOSE TUBO DX	-	1	Enquire
018	8700691	SCREW	8700691 SCREW VITE	-	8	Enquire
019	N91115501	WASHER	N91115501 WASHER RONDELLA	-	8	Enquire
020	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	4	Enquire
021	8400606	WASHER	8400606 WASHER RONDELLA	-	4	Enquire
