Accelerator Cables of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Accelerator Cables

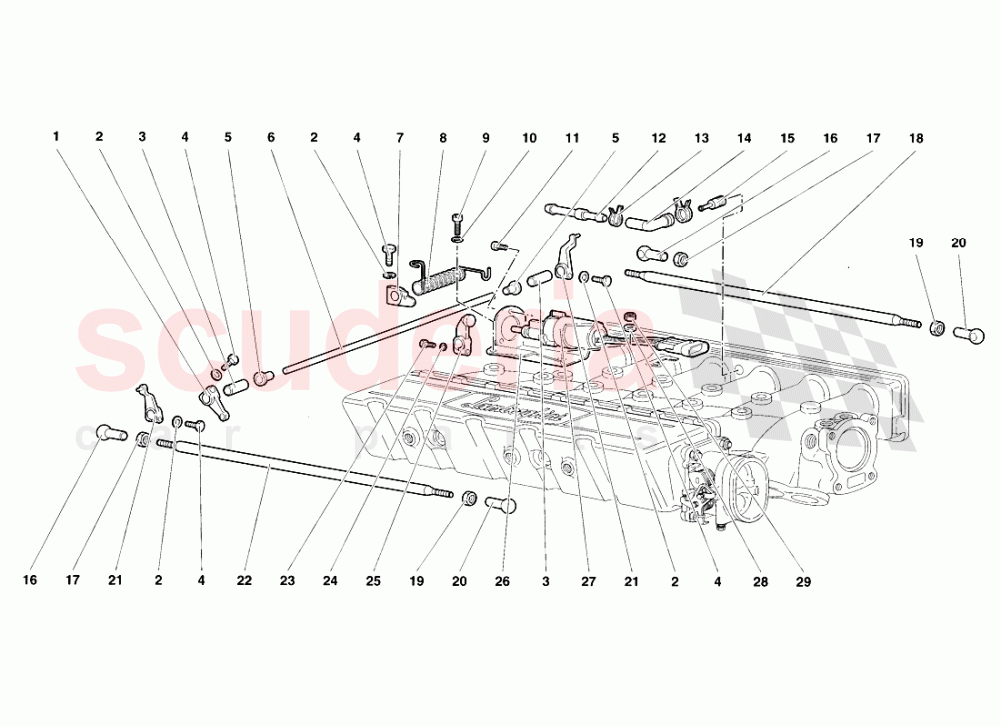

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1301093	LEVER	1301093 LEVER LEVA	$254.03	1
002	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	4
003	1323136	SPACER	1323136 SPACER DISTANZIALE	$13.64 MSRP: ~~13.85~~ (1.5% off)	2
004	8100601	SCREW	8100601 SCREW VITE	$0.27	4
005	8801204	BUSHING	8801204 BUSHING BOCCOLA	$9.38 MSRP: ~~9.70~~ (3.3% off)	2
006	1323135	SMALL SHAFT	1323135 SMALL SHAFT ALBERINO	$32.95	1
007	1331005	LEVER	1331005 LEVER LEVA	$38.02	1
008	1335958	SPRING	1335958 SPRING MOLLA	$33.25	1
009	8700646	SCREW	8700646 SCREW VITE	$0.16 MSRP: ~~7.37~~ (97.8% off)	1
010	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	1
011	8700465	SCREW	8700465 SCREW VITE	$0.33 MSRP: ~~7.33~~ (95.5% off)	3
012	1329319	ADAPTER	1329319 ADAPTER RACCORDO	$1.17 MSRP: ~~7.18~~ (83.7% off)	1
013	8830122	CLAMP	8830122 CLAMP FASCETTA	$0.34 MSRP: ~~7.33~~ (95.4% off)	2
014	7L131756	CONNECTOR	7L131756 CONNECTOR RACCORDO	$28.32	2
015	1328721	CONNECTION	1328721 CONNECTION RACCORDO	$20.12 MSRP: ~~20.35~~ (1.1% off)	2
016	1300804	COUPLING HEAD	1300804 COUPLING HEAD TESTA GIUNTO SFERICO	$11.74 MSRP: ~~11.90~~ (1.3% off)	2
017	8200501	NUT	8200501 NUT DADO	$0.06	2
018	1328014	LEFT TIE ROD	1328014 LEFT TIE ROD TIRANTESX	$405.29	1
019	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD) DADO	$526.87	2
020	1308539	COUPLING HEAD	1308539 COUPLING HEAD TESTA GIUNTO SFERICO	-	2	Enquire
021	1311580	LEVER	1311580 LEVER LEVA	$331.28	2
022	1328016	RIGHT TIE ROD	1328016 RIGHT TIE ROD TIRANTE DX	$513.65	1
023	8100601	SCREW	8100601 SCREW VITE	$0.27	1
024	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	1
025	1337826	LEVER	1337826 LEVER LEVA	$84.49	1
026	1337818	SUPPORT - SUPPORTO	1337818 SUPPORT - SUPPORTO O	$63.77	1
027	6137792	CONTROL	6137792 CONTROL COMANDO	$269.25	1
028	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	1
029	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	1
