Right Cylinder Head of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

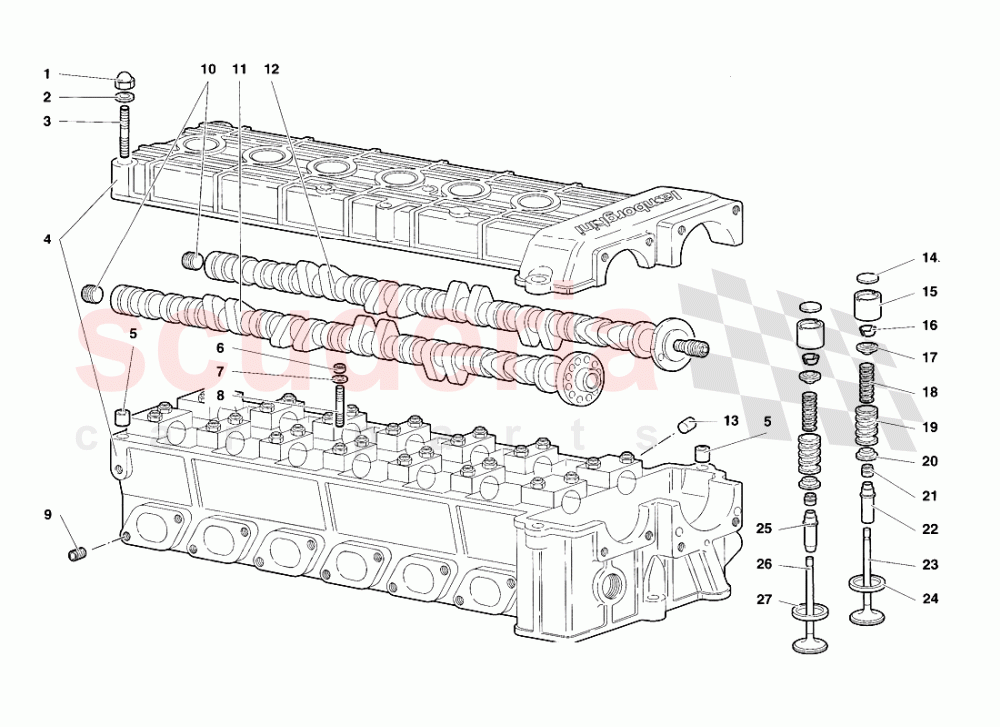

Lamborghini Diablo VT Roadster (1998-2000) - Right Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
002	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
003	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$12.05 MSRP: ~~12.55~~ (4% off)	1
004	460132000	RIGHT CYLINDER HEAD.	460132000 RIGHT CYLINDER HEAD. TESTA CILINDRI DX	$20,162.65	1
005	8800604	BUSHING	8800604 BUSHING BOCCOLA	-	2	Enquire
006	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	28
007	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	28
008	8300666	STUD BOLT	8300666 STUD BOLT PRIGIONIERO	$42.30 MSRP: ~~44.20~~ (4.3% off)	28
009	8840802	HELI-COIL	8840802 HELI-COIL	$3.24	12
010	8931409	PLUG	8931409 PLUG TAPPO	$12.36 MSRP: ~~12.85~~ (3.8% off)	2
011	1232709	CAMSHAFT IN STOCK	1232709 CAMSHAFT ASSE A CAMME SCARICO IN STOCK	$16,203.43	1
012	12001310	CAMSHAFT	12001310 CAMSHAFT ASSE A CAMME ASPIRAZIONE	$14,218.32	1
013	1122089	DOWEL	1122089 DOWEL GRAND	$16.80 MSRP: ~~17.60~~ (4.5% off)	2
014	1220879	SHIM	1220879 SHIM SPESSORE Dl REGISTRO 3.35 MM	-	24	Enquire
014	1220878	SHIM	1220878 SHIM SPESSORE Dl REGISTRO 3.30 MM	-	24	Enquire
014	1220883	SHIM	1220883 SHIM SPESSORE Dl REGISTRO 3.55 MM	-	24	Enquire
014	1220877	SHIM	1220877 SHIM SPESSORE Dl REGISTRO 3.25 MM	-	24	Enquire
014	1220882	SHIM	1220882 SHIM SPESSORE Dl REGISTRO 3.50 MM	-	24	Enquire
014	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.85 MM	$11.22	24
014	1220880	SHIM	1220880 SHIM SPESSORE Dl REGISTRO 3.40 MM	-	24	Enquire
014	1220881	SHIM	1220881 SHIM SPESSORE Dl REGISTRO 3.45 MM	-	24	Enquire
014	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.90 MM	$55.72	24
014	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.80 MM	$55.72	24
014	1220887	SHIM	1220887 SHIM SPESSORE Dl REGISTRO 3.75 MM	-	24	Enquire
014	1220891	SHIM	1220891 SHIM SPESSORE Dl REGISTRO 3.95 MM	-	24	Enquire
014	1220886	SHIM	1220886 SHIM SPESSORE Dl REGISTRO 3.70 MM	-	24	Enquire
014	1220885	SHIM	1220885 SHIM SPESSORE Dl REGISTRO 3.65 MM	-	24	Enquire
014	1220897	SHIM	1220897 SHIM SPESSORE Dl REGISTRO 4.25 MM	-	24	Enquire
014	1220892	Valve shims	1220892 Valve shims 4.00 MM	-	24	Enquire
014	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 4.10 MM	$55.72	24
014	1220884	SHIM	1220884 SHIM SPESSORE Dl REGISTRO 3.60 MM	-	24	Enquire
014	1220906	SHIM	1220906 SHIM SPESSORE Dl REGISTRO 4.70 MM	-	24	Enquire
014	1220895	SHIM	1220895 SHIM SPESSORE Dl REGISTRO 4.15 MM	-	24	Enquire
014	1220905	SHIM	1220905 SHIM SPESSORE Dl REGISTRO 4.65 MM	-	24	Enquire
014	1220896	SHIM	1220896 SHIM SPESSORE Dl REGISTRO 4.20 MM	-	24	Enquire
014	1220898	SHIM	1220898 SHIM SPESSORE Dl REGISTRO 4.30 MM	-	24	Enquire
014	1220900	SHIM	1220900 SHIM SPESSORE Dl REGISTRO 4.40 MM	-	24	Enquire
014	1220893	SHIM	1220893 SHIM SPESSORE Dl REGISTRO 4.05 MM	-	24	Enquire
014	1220899	SHIM	1220899 SHIM SPESSORE Dl REGISTRO 4.35 MM	-	24	Enquire
014	1220902	SHIM	1220902 SHIM SPESSORE Dl REGISTRO 4.50 MM	-	24	Enquire
014	1220901	SHIM	1220901 SHIM SPESSORE Dl REGISTRO 4.45 MM	-	24	Enquire
014	1220904	SHIM	1220904 SHIM SPESSORE Dl REGISTRO 4.60 MM	-	24	Enquire
014	1220903	SHIM	1220903 SHIM SPESSORE Dl REGISTRO 4.55 MM	-	24	Enquire
015	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET PUNTERIA	$36.70	24
016	1235955	TAPPET LOCK CONE	1235955 TAPPET LOCK CONE SEMICONO PUNTERIE	-	48	Enquire
017	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$19.09	24
018	7M109633A	INNER SPRING	7M109633A INNER SPRING MOLLA	$6.20	24
019	7M109623A	OUTER SPRING	7M109623A OUTER SPRING MOLLA	$19.15	24
020	1220993	TAPPET PLATE	1220993 TAPPET PLATE PIATTELLO PUNTERIA INFERIORE	-	24	Enquire
021	7M109675	SEAL RING	7M109675 SEAL RING	$15.73	48
022	1238321	INTAKE VALVE GUIDE	1238321 INTAKE VALVE GUIDE GUIDA VALVOLA ASPIRAZIONE	$70.75	12
023	7M109601	INTAKE VALVE	7M109601 INTAKE VALVE VALVOLA ASPIRAZIONE	$72.71	12
024	1234790	VALVE SEAT	1234790 VALVE SEAT SEDE VALVOLA ASPIRAZIONE	-	12	Enquire
025	1238320	EXHAUST VALVE GUIDE	1238320 EXHAUST VALVE GUIDE GUIDA VALVOLA SCARICO	$86.86	12
026	7M109611	EXHAUST VALVE	7M109611 EXHAUST VALVE VALVOLA SCARICO	$104.17	12
027	1234791	VALVE SEAT	1234791 VALVE SEAT SEDE VALVOLA SCARICO	-	12	Enquire
