Lamborghini Diablo GT (1999-2000) - Pedal Mounting

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

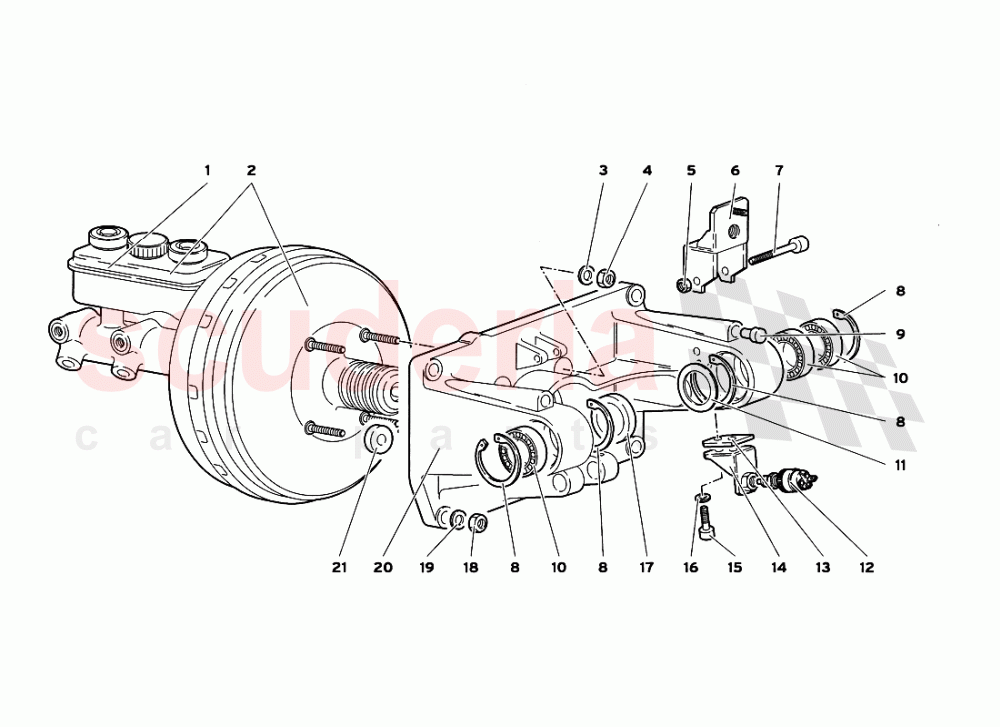

Pedal Mounting of Lamborghini Lamborghini Diablo GT (1999-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4236817
BRAKE-SERVO RESER.
SERBATOIO SERVOFRENO 		$238.85 1
002 42001085
BRAKE-SERVO
SERVOFRENO 		$440.45 1
003 8400801
WASHER
RONDELLA 		$0.68 4
004 8200804
NUT M8
DADO
IN STOCK 		$1.16 (84.1% off) 4
005 N01152427
WASHER
DADO
IN STOCK 		$0.28 2
006 4231515
SUPPORT - SUPPORTO
O 		$42.06 1
007 8700644
SCREW
VITE 		$0.37 (95% off) 2
008 8573701
RETAINING RING
ANELLO RITEGNO 		$0.64 (91.2% off) 4
009 410721381
STOP 		$84.95 2
010 8502513
BEARING
CUSCINETTO 		$36.55 (4.3% off) 3
011 8402507
WASHER
RONDELLA 		$27.99 (4% off) 1
012 417959727
SWITCH
INTERRUTTORE ABS 		$57.38 1
013 42001530
SPACER
DISTANZIALE 		- 1 Enquire
014 42004496
SUPPORT - SUPPORTO
O 		$78.91 1
015 8700644
SCREW
VITE 		$0.37 (95% off) 2
016 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 2
017 4230923
SPACER
DISTANZIALE 		$28.54 (4.4% off) 1
018 8200804
NUT M8
DADO
IN STOCK 		$1.16 (84.1% off) 4
019 8400801
WASHER
RONDELLA 		$0.68 4
020 4233483
PEDALS SUPPORT
SUPPORTO PEDALIERA 		$828.79 (4.4% off) 1
021 42000931
SPACER
DISTANZIALE 		$35.51 (4.2% off) 4
