Pedals of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

Lamborghini Diablo GT (1999-2000) - Pedals

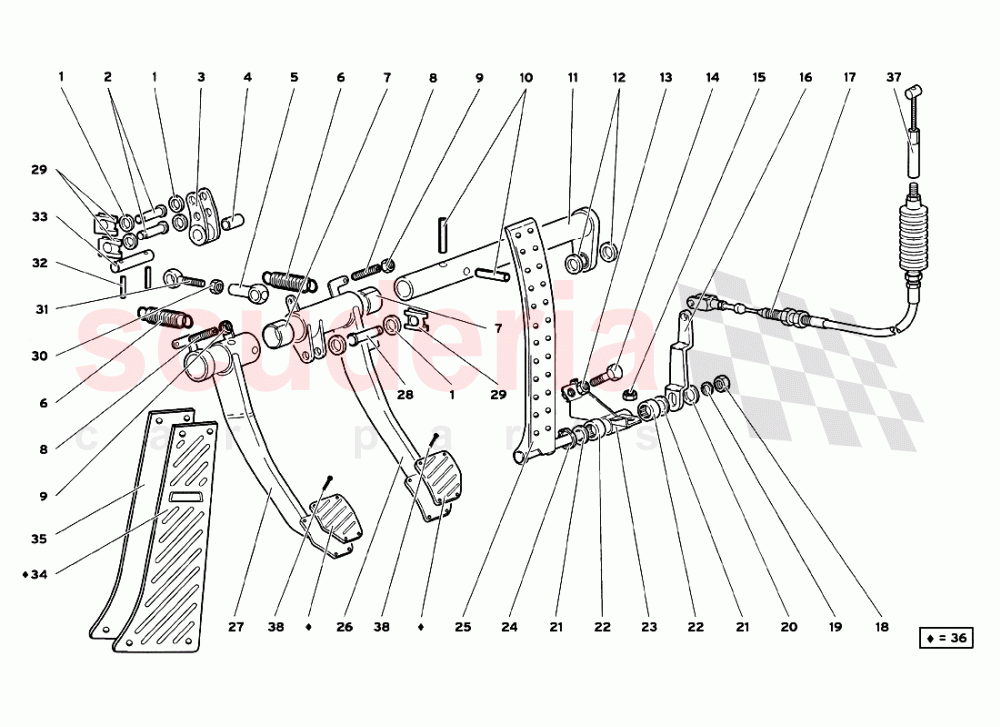

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8401007	WASHER	8401007 WASHER RONDELLA	$0.09 MSRP: ~~7.38~~ (98.8% off)	6
002	4232621	PIN	4232621 PIN PERNO	$37.65 MSRP: ~~39.30~~ (4.2% off)	2
003	4225060	ROCKER	4225060 ROCKER LEVA	$75.31 MSRP: ~~78.60~~ (4.2% off)	1
004	8801209	BUSHING	8801209 BUSHING BOCCOLA	$9.55 MSRP: ~~9.90~~ (3.5% off)	1
005	4225061	COUPLING	4225061 COUPLING TESTA A SNODO	$68.25 MSRP: ~~71.40~~ (4.4% off)	1
006	42004879	SPRING	42004879 SPRING MOLLA	-	2	Enquire
007	8802501	BUSHING	8802501 BUSHING BOCCOLA	$21.91 MSRP: ~~22.90~~ (4.3% off)	2
008	4210834	ADJUSTING SLEEVE	4210834 ADJUSTING SLEEVE TESTA REGISTRO	$4.55 MSRP: ~~4.70~~ (3.2% off)	2
009	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	2
010	8900803	PIN	8900803 PIN SA	$0.95 MSRP: ~~7.19~~ (86.8% off)	2
011	4225064	SHAFT	4225064 SHAFT ALBERO	-	1	Enquire
012	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	$0.58 MSRP: ~~7.29~~ (92% off)	2
013	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	1
014	8100828	SCREW	8100828 SCREW VITE	$0.62 MSRP: ~~7.27~~ (91.5% off)	1
015	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	2
016	4238042	LEVER	4238042 LEVER LEVA	$34.07 MSRP: ~~35.60~~ (4.3% off)	1
017	4230089	GAS CABLE	4230089 GAS CABLE TIRANTE ACCELERATORE	$1,146.41	1
018	8200809	NUT	8200809 NUT DADO	$1.96	1
019	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
020	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	1
021	8401220	WASHER	8401220 WASHER RONDELLA	$5.99 MSRP: ~~6.15~~ (2.6% off)	2
022	8521205	BEARING	8521205 BEARING CUSCINETTO	$11.04 MSRP: ~~11.45~~ (3.6% off)	2
023	4231811	SUPPORT - SUPPORTO	4231811 SUPPORT - SUPPORTO O	$251.24 MSRP: ~~262.00~~ (4.1% off)	1
024	8581101	RETAINER RING	8581101 RETAINER RING ANELLO RITEGNO	$5.82 MSRP: ~~6.00~~ (3% off)	1
025	4235545	ACCELERATOR PEDAL	4235545 ACCELERATOR PEDAL PEDALE ACCELERATORE	$971.26	1
026	42004369	BRAKE PEDAL	42004369 BRAKE PEDAL PEDALE FRENO	$390.81	1
027	42004370	CLUTCH PEDAL	42004370 CLUTCH PEDAL PEDALE FRIZIONE	$390.81	1
028	4232622	PIN	4232622 PIN PERNO	$26.58	1
029	8581004	CLIP	8581004 CLIP MOLLETTA	$9.38 MSRP: ~~9.70~~ (3.3% off)	1
030	N10155210	NUT	N10155210 NUT DADO	$1.96 MSRP: ~~7.24~~ (72.9% off)	1
031	4225062	TIE ROD	4225062 TIE ROD TIRANTE	$65.51 MSRP: ~~68.50~~ (4.4% off)	1
032	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.27 MSRP: ~~7.35~~ (96.3% off)	2
033	4225074	PIN	4225074 PIN PERNO	-	1	Enquire
034	42004375	FOOTREST	42004375 FOOTREST PEDALINA POGGIAPIEDE	-	1	Enquire
035	42004372	FOOTREST PEDAL	42004372 FOOTREST PEDAL PEDALE POGGIAPIEDE	$238.21	1
036	42004373	PEDAL KIT	42004373 PEDAL KIT KIT PEDALINE	$154.47	1
037	42005157	EXTENSION	42005157 EXTENSION PROLUNGA	$37.23	1
038	8700310	SCREW	8700310 SCREW VITE	-	12	Enquire
