Gearbox Oil Pump of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

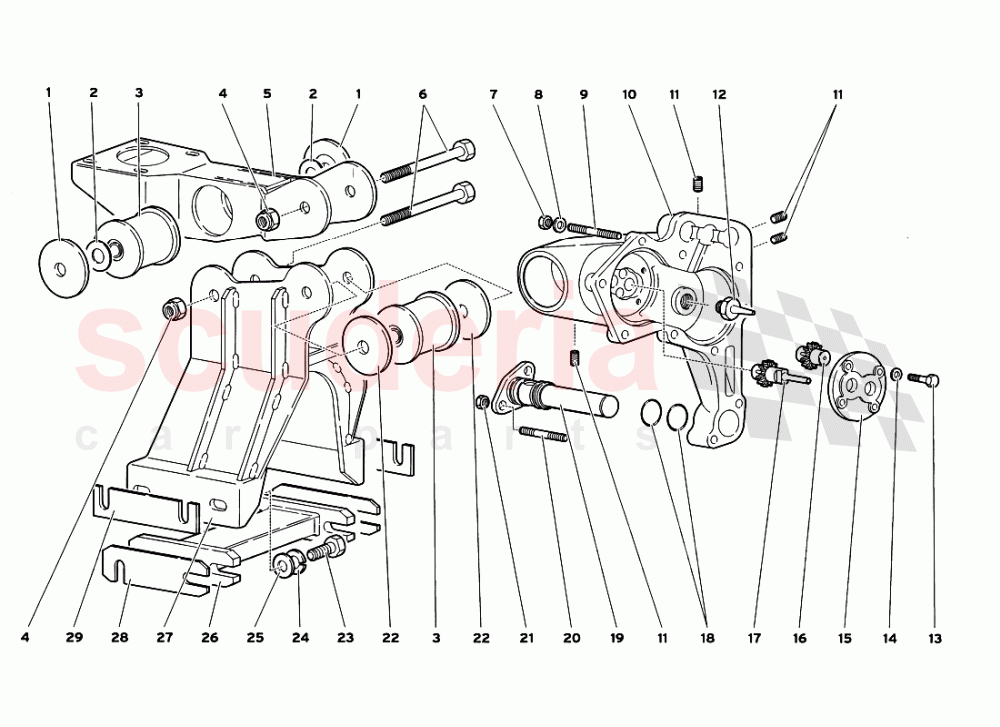

Lamborghini Diablo GT (1999-2000) - Gearbox Oil Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2433939	SPACER	2433939 SPACER DISTANZIALE	-	2	Enquire
002	8401421	WASHER	8401421 WASHER RONDELLA	-	2	Enquire
003	B9501144	support mount	B9501144 support mount	-	2	Enquire
004	8201414	NUT	8201414 NUT DADO	-	2	Enquire
005	24004640	SUPPORT - SUPPORTO	24004640 SUPPORT - SUPPORTO O	-	1	Enquire
006	8101411	SCREW	8101411 SCREW VITE	-	2	Enquire
007	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	8	Enquire
008	WHT001514	WASHER	WHT001514 WASHER RONDELLA	-	8	Enquire
009	8300840	STUD	8300840 STUD PRIGIONIERO	-	8	Enquire
010	2431783	COVER	2431783 COVER COPERCHIO	-	1	Enquire
011	8701204	PLUG	8701204 PLUG TAPPO	-	4	Enquire
012	2425259	JET	2425259 JET UGELLO	-	1	Enquire
013	8100617	SCREW	8100617 SCREW VITE	-	4	Enquire
014	8410602	WASHER	8410602 WASHER RONDELLA	-	4	Enquire
015	2431778	COVER	2431778 COVER COPERCHIO	-	1	Enquire
016	2425185	DRIVEN GEAR	2425185 DRIVEN GEAR INGRANAGGIO CONDOTTO	-	1	Enquire
017	2425184	GEAR	2425184 GEAR INGRANAGGIO	-	1	Enquire
018	8602301	SEAL	8602301 SEAL ANELLO TENUTA	-	2	Enquire
019	2425246	OIL FILTER	2425246 OIL FILTER FILTRO OLIO	-	1	Enquire
020	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	-	2	Enquire
021	8200821	NUT	8200821 NUT DADO	-	2	Enquire
022	2434272	WASHER	2434272 WASHER RONDELLA	-	2	Enquire
023	8100862	SCREW	8100862 SCREW VITE	-	4	Enquire
024	N0152785	WASHER	N0152785 WASHER RONDELLA	-	4	Enquire
025	8400802	WASHER	8400802 WASHER RONDELLA	-	4	Enquire
026	2433990	CROSSRAIL	2433990 CROSSRAIL TRAVERSA	-	1	Enquire
027	2433346	SUPPORT - SUPPORTO	2433346 SUPPORT - SUPPORTO O	-	1	Enquire
028	2433991	SPACER	2433991 SPACER DISTANZIALE	-	1	Enquire
029	4126766	SPACER	4126766 SPACER DISTANZIALE	-	1	Enquire
