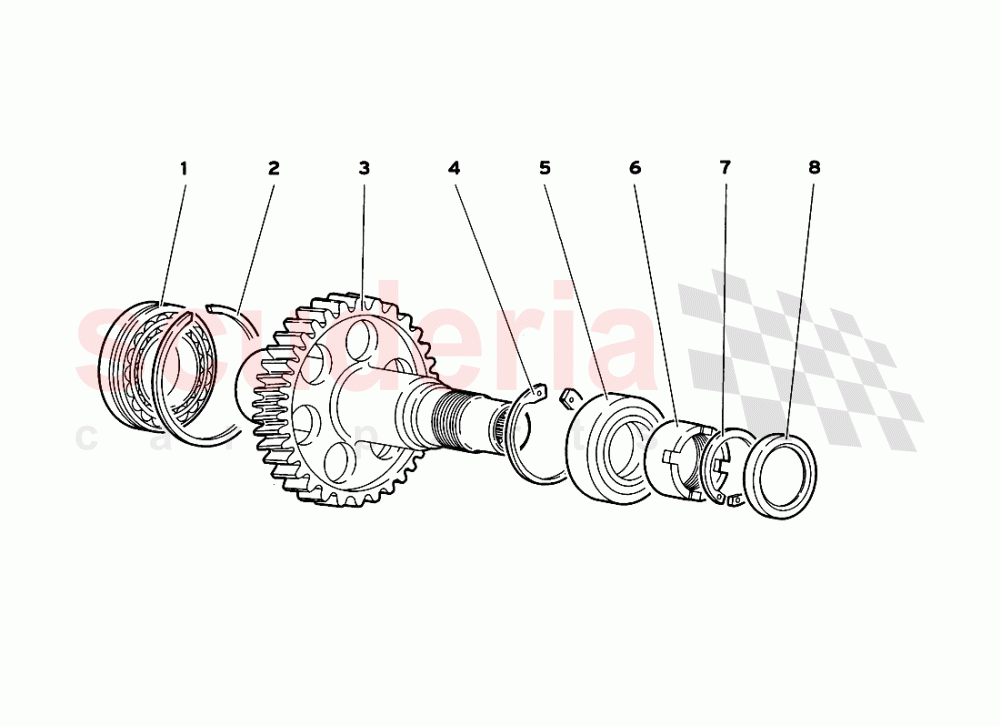

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8525013	BEARING	8525013 BEARING CUSCINETTO	$309.78	1
002	8589001	RETAINER RING	8589001 RETAINER RING ANELLO RITEGNO	$3.48 MSRP: ~~3.55~~ (2% off)	1
003	24004058	RING GEAR	24004058 RING GEAR (Short Ratios) CORONA DENTATA	$2,351.12	1
003	2437437	RING GEAR	2437437 RING GEAR CORONA DENTATA	$1,000.01	1
004	8578001	RETAINER RING	8578001 RETAINER RING ANELLO RITEGNO	$6.61	1
005	8514001	BEARING	8514001 BEARING CUSCINETTO	$146.40 MSRP: ~~152.00~~ (3.7% off)	1
006	8254004	PLUG	8254004 PLUG GHIERA	$141.46 MSRP: ~~147.50~~ (4.1% off)	1
007	8575201	RETAINING RING	8575201 RETAINING RING ANELLO RITEGNO	$1.22 MSRP: ~~7.20~~ (83.1% off)	1
008	86311819	SEAL RING	86311819 SEAL RING	$56.38	1
009	241322012	GEARBOX KIT	241322012 GEARBOX KIT KITCAMBIO	-	1	Enquire
010	240132015	GEARBOX KIT	240132015 GEARBOX KIT (Short Ratios) KIT CAMBIO RAPPORTI CORTI	-	1	Enquire
