Climate Control 1 of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

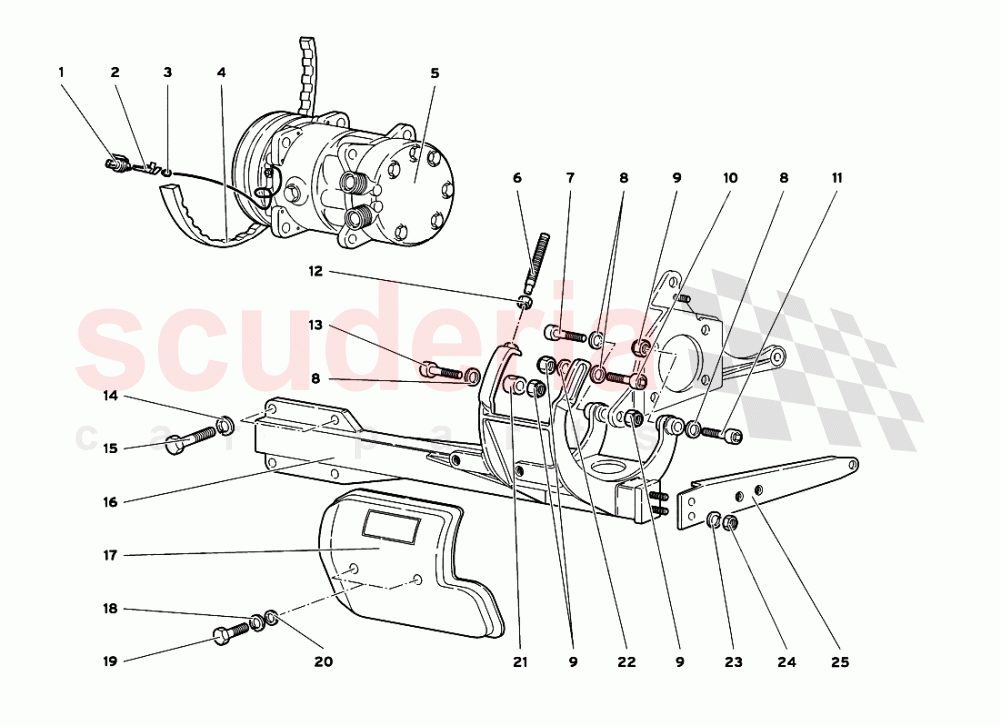

Lamborghini Diablo GT (1999-2000) - Climate Control 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6136453	CONNECTION	6136453 CONNECTION CONNESSIONE	-	1	Enquire
002	6136454	KEY	6136454 KEY LINGUETTA	-	1	Enquire
003	6136447	RUBBER	6136447 RUBBER COMMA	-	1	Enquire
004	4534071	BELT	4534071 BELT CINGHIA	-	1	Enquire
005	4535409	AIR COMPRESSOR	4535409 AIR COMPRESSOR COMPRESSORE	-	1	Enquire
006	8700841	SCREW	8700841 SCREW VITE	-	1	Enquire
007	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD VITE	-	1	Enquire
008	WHT000768	WASHER	WHT000768 WASHER	-	4	Enquire
009	8201008	NUT	8201008 NUT DADO	-	4	Enquire
010	8701017	SCREW	8701017 SCREW VITE	-	1	Enquire
011	8701014	SCREW	8701014 SCREW VITE	-	1	Enquire
012	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	1	Enquire
013	8701020	SCREW	8701020 SCREW VITE	-	1	Enquire
014	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	4	Enquire
015	8100830	SCREW	8100830 SCREW VITE	-	4	Enquire
016	4535242	SUPPORT - SUPPORTO	4535242 SUPPORT - SUPPORTO O	-	1	Enquire
017	4535934	SHIELD	4535934 SHIELD PROTEZIONE	-	1	Enquire
018	8410602	WASHER	8410602 WASHER RONDELLA	-	2	Enquire
019	8100601	SCREW	8100601 SCREW VITE	-	2	Enquire
020	8400606	WASHER	8400606 WASHER RONDELLA	-	2	Enquire
021	4529646	SPACER	4529646 SPACER DISTANZIALE	-	1	Enquire
022	8401028	WASHER	8401028 WASHER RONDELLA	-	1	Enquire
023	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	2	Enquire
024	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	2	Enquire
025	4529645	TIE ROD	4529645 TIE ROD TIRANTE	-	1	Enquire
