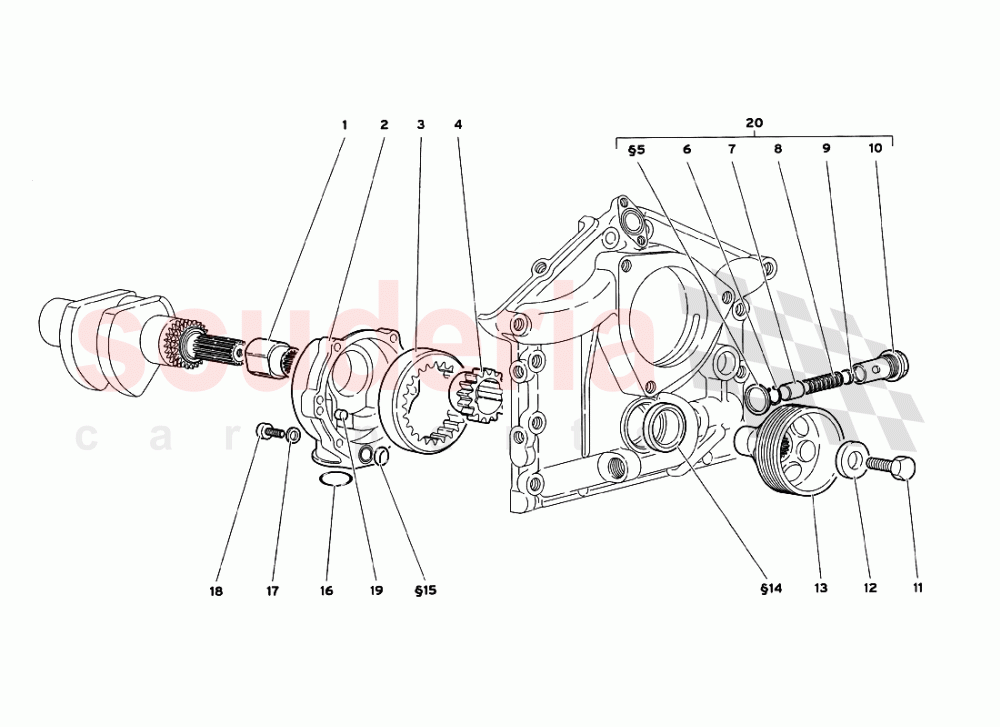

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1532187	COUPLING	1532187 COUPLING GIUNTO	-	1	Enquire
002	1532874	COVER	1532874 COVER COPERCHIO	-	1	Enquire
003	1528526	DRIVEN GEAR	1528526 DRIVEN GEAR INGRANAGGIO CONDOTTO	-	1	Enquire
004	1528525	GEAR	1528525 GEAR INGRANAGGIO CONDUTTORE	-	1	Enquire
005	8403007	WASHER	8403007 WASHER (Also Included In The Engine Gasket) KitRONDELLA	-	1	Enquire
006	8571901	RETAINER RING	8571901 RETAINER RING ANELLO RITEGNO	-	1	Enquire
007	1232216	BUSHING	1232216 BUSHING PISTONCINO	-	1	Enquire
008	1519888	SPRING	1519888 SPRING MOLLA	-	1	Enquire
009	1232217	SPACER	1232217 SPACER DISTANZIALE	-	5	Enquire
010	1232215	BODY	1232215 BODY CORPO VALV.REGOL.PRESS.	-	1	Enquire
011	8101641	SCREW	8101641 SCREW VITE	-	1	Enquire
012	1433466	WASHER	1433466 WASHER RONDELLA	-	1	Enquire
013	1432192	PULLEY	1432192 PULLEY PULEGGIA	-	1	Enquire
014	8613702	SEAL	8613702 SEAL (Also Included In The Engine Gasket) ANELLO TENUTA	-	1	Enquire
015	8601705	SEAL	8601705 SEAL (Also Included In The Engine Gasket) ANELLO TENUTA	-	1	Enquire
016	8603503	SEAL RING IN STOCK	8603503 SEAL RING ANELLO TENUTA IN STOCK	-	1	Enquire
017	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	-	6	Enquire
018	8700627	SCREW	8700627 SCREW VITE	-	6	Enquire
019	WHT003577	DOWEL	WHT003577 DOWEL GRAND	-	2	Enquire
020	15004602	VALVE ASSEMBLY	15004602 VALVE ASSEMBLY ASSIEME VALVOLA	-	1	Enquire
