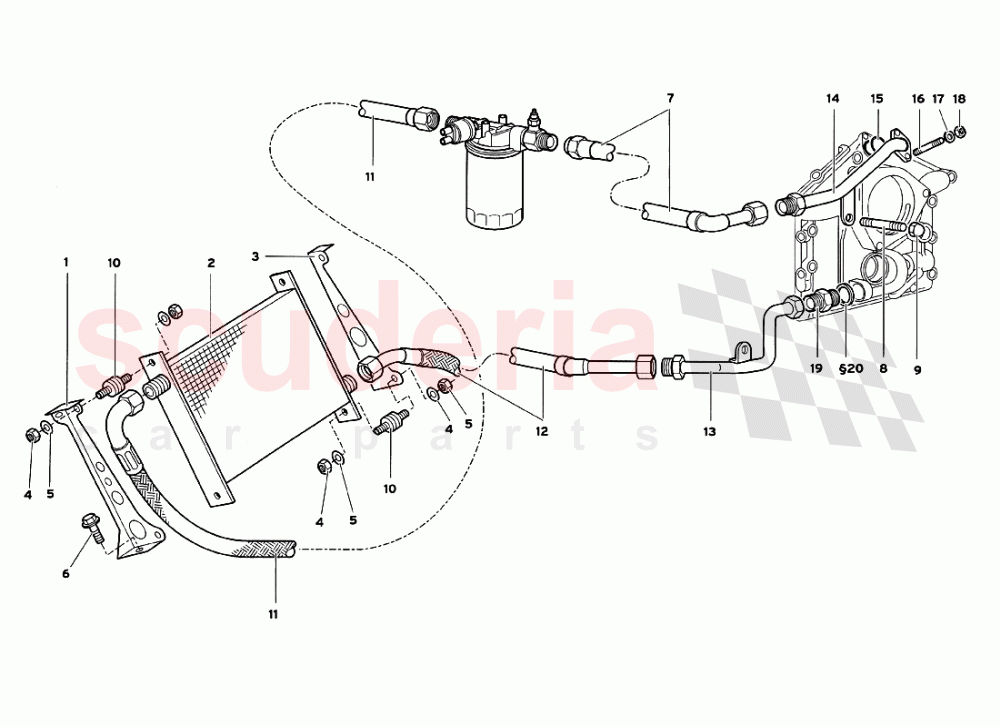

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	41004589	BRACKET	41004589 BRACKET STAFFA SX	-	1	Enquire
002	15004643	OIL RADIATOR	15004643 OIL RADIATOR RADIATORE OLIO	-	1	Enquire
003	41004590	BRACKET	41004590 BRACKET STAFFA DX	-	1	Enquire
004	8200814	NUT	8200814 NUT DADO	-	8	Enquire
005	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	-	8	Enquire
006	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	-	4	Enquire
007	15004178	PIPE	15004178 PIPE TUBO	-	1	Enquire
008	8300905	STUD	8300905 STUD PRIGIONIERO	-	1	Enquire
009	8200816	NUT	8200816 NUT DADO	-	1	Enquire
010	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	-	4	Enquire
011	15004177	FLEX. HOSE	15004177 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
012	15004176	FLEX. HOSE	15004176 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
013	15005034	PIPE	15005034 PIPE TUBO	-	1	Enquire
014	1535967	PIPE	1535967 PIPE TUBO	-	1	Enquire
015	WHT003062	SEAL RING IN STOCK	WHT003062 SEAL RING ANELLO TENUTA IN STOCK	-	1	Enquire
016	8300828	STUD	8300828 STUD PRIGIONIERO	-	2	Enquire
017	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	-	2	Enquire
018	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	-	2	Enquire
019	1529610	CONNECTION	1529610 CONNECTION RACCORDO	-	1	Enquire
020	8403007	WASHER	8403007 WASHER (Also Included In The Engine Gaskets Kit) RONDELLA	-	1	Enquire
