Lamborghini Diablo GT (1999-2000) - Radiators and Electro-Fans

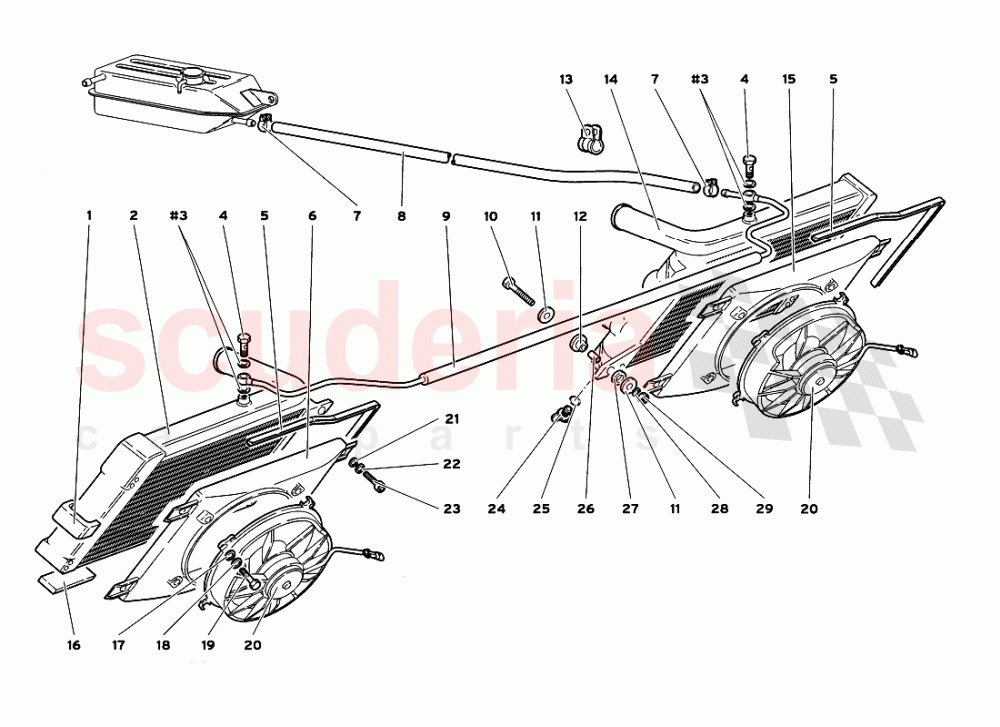

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1733004	GASKET	1733004 GASKET PROTEZIONE	-	4	Enquire
002	1735035	LH RADIATOR	1735035 LH RADIATOR	-	1	Enquire
003	8400818	WASHER	8400818 WASHER (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) RONDELLA	-	4	Enquire
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	-	2	Enquire
005	410121539	GASKET	410121539 GASKET GUARNIZIONE	-	2	Enquire
006	410121333	LEFT CONVEYOR	410121333 LEFT CONVEYOR CONVOGLIATORE SX	-	1	Enquire
007	8830817	CLAMP	8830817 CLAMP FASCETTA	-	2	Enquire
008	1735264	PIPE	1735264 PIPE TUBO	-	1	Enquire
009	1738038	VENT PIPE	1738038 VENT PIPE TUBO Dl SFIATO	-	1	Enquire
010	8100824	SCREW	8100824 SCREW VITE	-	4	Enquire
011	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	8	Enquire
012	1733266	RUBBER BUSHING	1733266 RUBBER BUSHING BOCCOLA COMMA	-	4	Enquire
013	8831515	CLAMP	8831515 CLAMP FASCETTA	-	1	Enquire
014	1735034	RH RADIATOR	1735034 RH RADIATOR	-	1	Enquire
015	410121334A	RH CONVEYOR	410121334A RH CONVEYOR CONVOGLIATORE DX	-	1	Enquire
016	1731451	GASKET	1731451 GASKET PROTEZIONE	-	2	Enquire
017	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	8	Enquire
018	8410502	WASHER	8410502 WASHER RONDELLA	-	8	Enquire
019	8100502	SCREW	8100502 SCREW VITE	-	8	Enquire
020	17017063	ELECTROFAN	17017063 ELECTROFAN ELETTROVENTILATORE	-	2	Enquire
021	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	8	Enquire
022	WHT003213	WASHER	WHT003213 WASHER RONDELLA	-	8	Enquire
023	8700644	SCREW	8700644 SCREW VITE	-	8	Enquire
024	410121299	PLUG	410121299 PLUG TAPPO	-	2	Enquire
025	8600905	SEAL RING	8600905 SEAL RING ANELLO TENUTA	-	2	Enquire
026	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE BOCCOLA	-	4	Enquire
027	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	4	Enquire
028	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5 RONDELLA	-	4	Enquire
029	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
