Wiring Loom

Lamborghini Aventador LP770 SVJ Coupe

Find Your Part

Lamborghini Aventador LP770 SVJ Coupe - WIRING LOOM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
471971050AE WIRING SET FOR DASH PANEL $9,408.59 To Order
471971050AG WIRING SET FOR DASH PANEL $2,399.20 To Order
471971050AB WIRING SET FOR DASH PANEL $9,697.57 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HARNESS FOR ENGINE COMPARTMENT Enquire To Order
Photo Part No Description Price (each) Stock
471971035B WIRING SET FOR DOOR $219.09 To Order
Photo Part No Description Price (each) Stock
470971035H WIRING SET FOR DOOR $146.51 To Order
Photo Part No Description Price (each) Stock
470971029J WIRING SET FOR DOOR $1,592.73 To Order
470971029G WIRING SET FOR DOOR $497.32 To Order
Photo Part No Description Price (each) Stock
470971257D ADAPTER WIRE $43.07 To Order
Photo Part No Description Price (each) Stock
471857779 CARRIER $48.98 To Order
Photo Part No Description Price (each) Stock
CABLE SET FOR CAMERA Enquire To Order
Photo Part No Description Price (each) Stock
WIRING SET FOR LCD SCREEN Enquire To Order
Photo Part No Description Price (each) Stock
WIRING SET FOR LCD SCREEN Enquire To Order
Photo Part No Description Price (each) Stock
WIRING HARNESS FOR USB SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
6X0971845B BRACKET $10.96 To Order
Photo Part No Description Price (each) Stock
5M0971838 CABLE TIE WITH TERMINAL SOCKET $2.84 IN STOCK
Photo Part No Description Price (each) Stock
470971418A BATTERY FOR EMERGENCY SUPPLY $1,033.61 To Order
Photo Part No Description Price (each) Stock
N10595002 ROUND HD. SCREW $1.47 IN STOCK
View All

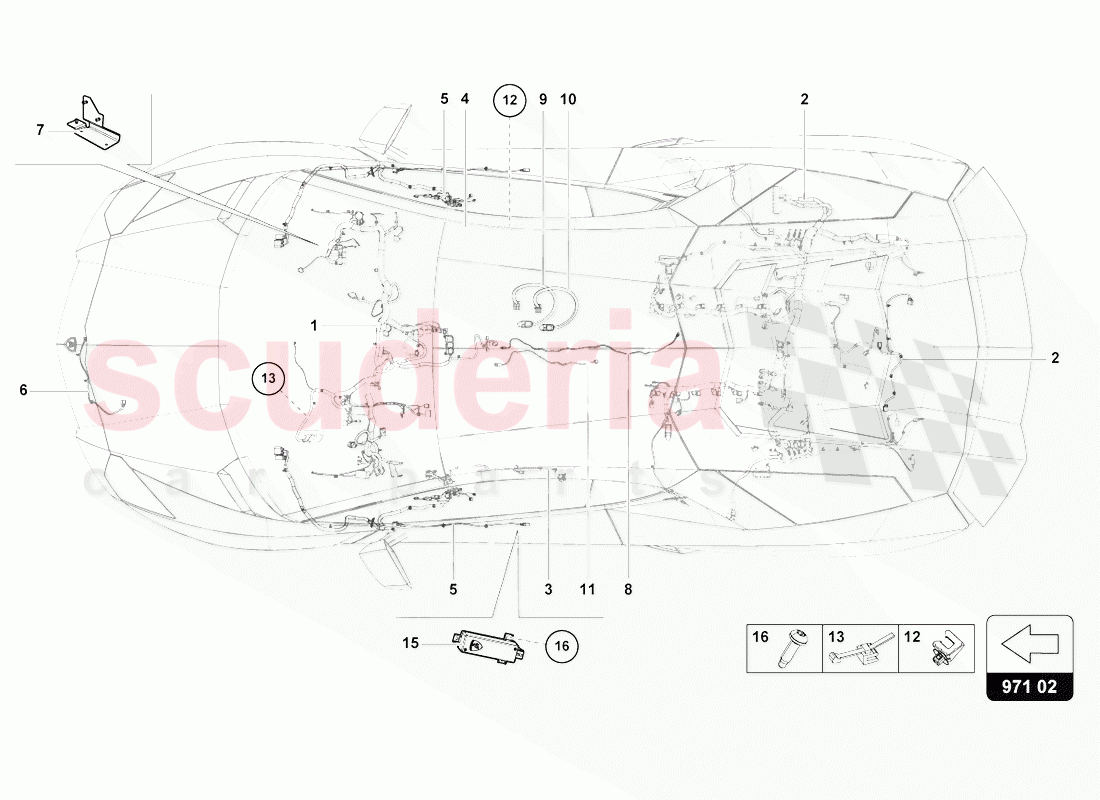

WIRING LOOM of Lamborghini Lamborghini Aventador LP770 SVJ Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 471971050AE
WIRING SET FOR DASH PANEL
WITH DEACTIVATION OF PASSENGER SIDE AB - MIRROR LINK- LHD 		$9,408.59 1
1 471971050AG
WIRING SET FOR DASH PANEL
WITH DEACTIVATION OF PASSENGER SIDE AB - WITHOUT LOUDSPEAKERS- LHD 		$2,399.20 1
1 471971050AB
WIRING SET FOR DASH PANEL
WITH KNEE AB AND DEACTIVATION PASSENGER SIDE - MIRROR LINK- LHD 		$9,697.57 1
1 471971050AD
WIRING SET FOR DASH PANEL
WITH KNEE AB AND DEACTIVATION OF PASSENGER SIDE - WITHOUT LOUDSPEAKERS- LHD 		$7,795.69 1
2 HARNESS FOR ENGINE COMPARTMENT
SEE ILLUSTRATION :- 905-010 		- - Enquire
3 471971035B
WIRING SET FOR DOOR
DRIVER SIDE- LHD 		$219.09 1
4 470971035H
WIRING SET FOR DOOR
PASSENGER SIDE 		$146.51 1
5 470971029J
WIRING SET FOR DOOR
LEFT 		$1,592.73 1
5 470971029G
WIRING SET FOR DOOR
RIGHT 		$497.32 1
6 470971257D
ADAPTER WIRE 		$43.07 -
7 471857779
CARRIER
LHD 		$48.98 1
8 CABLE SET FOR CAMERA
NO PART - VALID FOR CENTENARIO MODEL 		- - Enquire
9 WIRING SET FOR LCD SCREEN
NO PART - VALID FOR CENTENARIO MODEL 		- - Enquire
10 WIRING SET FOR LCD SCREEN
NO PART - VALID FOR CENTENARIO MODEL 		- - Enquire
11 WIRING HARNESS FOR USB SOCKET
NO PART - VALID FOR CENTENARIO MODEL 		- - Enquire
12 6X0971845B
BRACKET
FOR: 1J0 973 802 		$10.96 2
13 5M0971838
CABLE TIE WITH TERMINAL SOCKET
4,6X200MM
IN STOCK 		$2.84 3
14 470971174
HARNESS,REAR END 		$109.94 1
15 470971418A
BATTERY FOR EMERGENCY SUPPLY 		$1,033.61 -
16 N10595002
ROUND HD. SCREW
M5X18
IN STOCK 		$1.47 6
17 470998315
WIRE SET
TSU - GPS WIRING- LHD 		$55.30 -
