Find Your Part

ELECTRICS of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - ELECTRICS

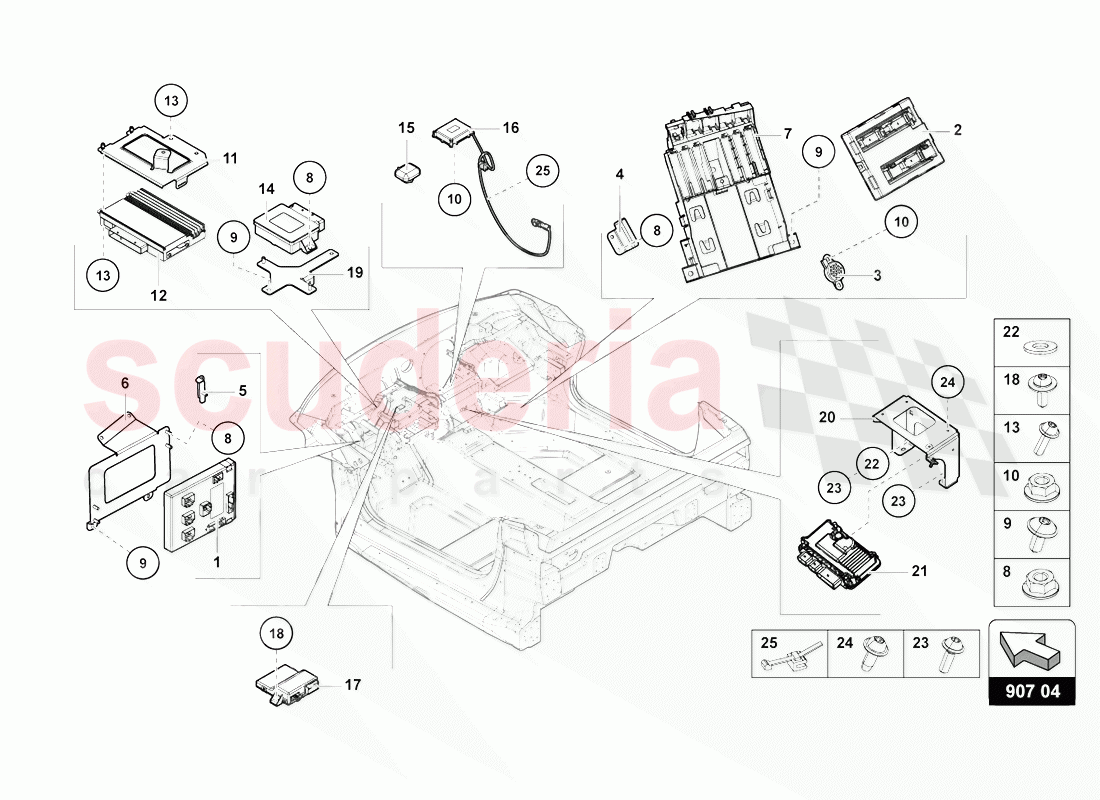

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8K0907063BE	ONBOARD SUPPLY CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0907064KR	CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM	Enquire	To Order
	8K0907064KM	CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM	Enquire	To Order
	8K0907064KF	CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0919279	WARNING BUZZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907298	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907333	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907324	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470971301	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10653201	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017307	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470035535A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470035223A	AMPLIFIERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907801	CONTROL UNIT WITH SOFTWARE FOR ELECTROMECHANICAL PARKING BRAKE -EPB-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420919889	AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8R0907468L	DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	Enquire	To Order
	8R0907468AD	DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	Enquire	To Order
	8R0907468T	DIAGNOSIS INTERFACE FOR DATA BUS ()	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907471	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863345A	RETAINER FOR CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0907144N	Control Unit For Active Steering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10543501	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5M0971838A	CABLE TIE WITH TERMINAL SOCKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8K0907063BE	ONBOARD SUPPLY CONTROL UNIT	8K0907063BE ONBOARD SUPPLY CONTROL UNIT	-	1	Enquire
2	8K0907064KR	CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM	8K0907064KR CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM 433,92 MHZ - RUSSIA - ARABIA - DUBAI - BRAZIL - SUD KOREA - CHINA - AUSTRALIA - NEW ZEALAND - THAILAND - INDIA - PHILIPPINE - AZERBAIJAN - VIETNAM	-	1	Enquire
2	8K0907064KM	CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM	8K0907064KM CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM 315 MHZ - USA - CANADA - JAPAN - MEXICO - TAIWAN - HONG KONG - MACAO - CHILE	-	1	Enquire
2	8K0907064KF	CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM	8K0907064KF CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM 868 MHZ - EU - SCANDINAVIA - SWEDEN - GB - SOUTH AFRICA - SINGAPORE - TURKEY	-	1	Enquire
3	8E0919279	WARNING BUZZER	8E0919279 WARNING BUZZER	-	1	Enquire
4	470907298	ARM	470907298 ARM	-	1	Enquire
5	470907333	ARM	470907333 ARM	-	2	Enquire
6	470907324	BRACKET	470907324 BRACKET LHD	-	1	Enquire
7	470971301	BRACKET	470971301 BRACKET	-	-	Enquire
8	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	6	Enquire
9	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT M6X16	-	8	Enquire
10	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT M5	-	4	Enquire
11	470035535A	BRACKET	470035535A BRACKET LHD	-	1	Enquire
12	470035223A	AMPLIFIERS	470035223A AMPLIFIERS	-	1	Enquire
13	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M5X16	-	5	Enquire
14	470907801	CONTROL UNIT WITH SOFTWARE FOR ELECTROMECHANICAL PARKING BRAKE -EPB-	470907801 CONTROL UNIT WITH SOFTWARE FOR ELECTROMECHANICAL PARKING BRAKE -EPB-	-	1	Enquire
15	420919889	AERIAL	420919889 AERIAL	-	1	Enquire
16	-	AERIAL	AERIAL VALID FOR USA/CANADA MARKETS	-	-	Enquire
17	8R0907468L	DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	8R0907468L DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY) WITHOUT SPEAKERS	-	1	Enquire
17	8R0907468AD	DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	8R0907468AD DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	-	1	Enquire
17	8R0907468T	DIAGNOSIS INTERFACE FOR DATA BUS ()	8R0907468T DIAGNOSIS INTERFACE FOR DATA BUS () GATEWAY	-	1	Enquire
17	8R0907468AA	DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	8R0907468AA DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	-	1	Enquire
18	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	2	Enquire
19	470907471	BRACKET	470907471 BRACKET	-	1	Enquire
20	470863345A	RETAINER FOR CENTRE CONSOLE	470863345A RETAINER FOR CENTRE CONSOLE	-	1	Enquire
21	8K0907144N	Control Unit For Active Steering	8K0907144N Control Unit For Active Steering	-	1	Enquire
22	N01166623	WASHER	N01166623 WASHER 6,4X18X1,6	-	2	Enquire
23	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X18	-	2	Enquire
24	N10543501	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD	N10543501 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD M5X12	-	4	Enquire
25	5M0971838A	CABLE TIE WITH TERMINAL SOCKET	5M0971838A CABLE TIE WITH TERMINAL SOCKET 4,6X200MM HORIZONTAL 1-3MM 90 DEGREE ANGLE	-	1	Enquire
