CENTRAL ELECTRICS of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - CENTRAL ELECTRICS

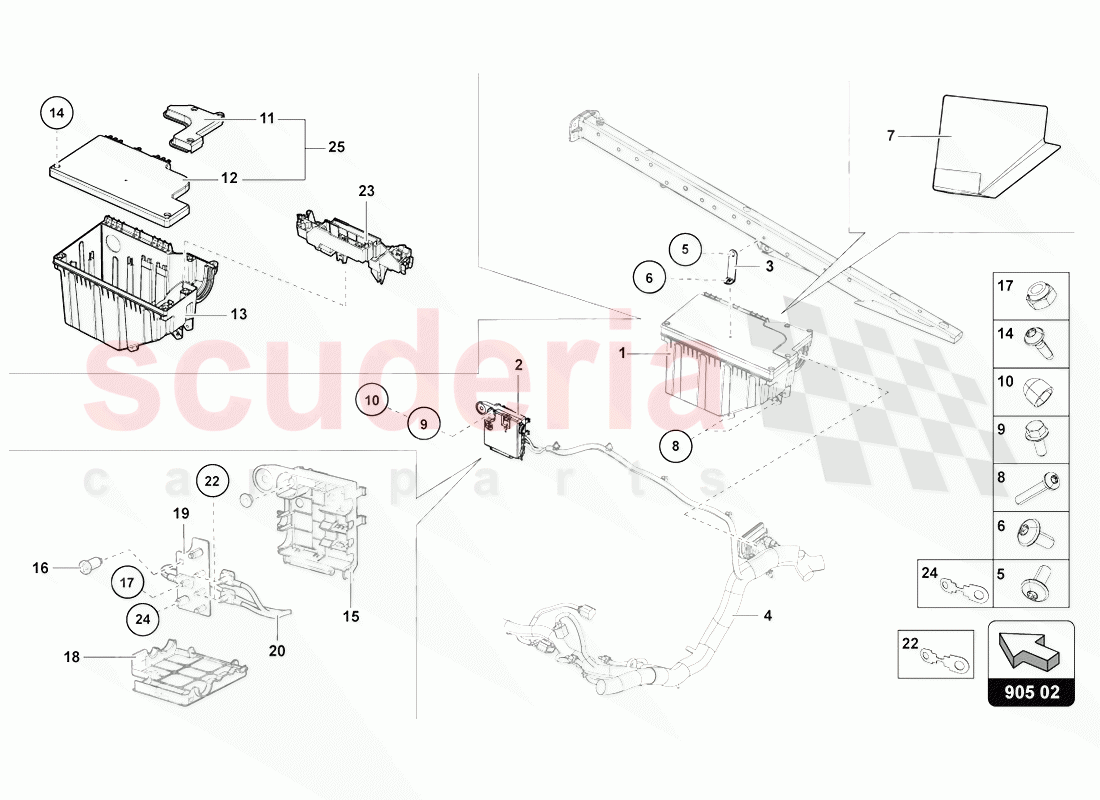

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		E BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0937517	JUMP START BOX ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470937155	RETAINING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HARNESS FOR ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91055501	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470937115	HEAT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10470703	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10653201	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90450201	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470937576A	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470937587A	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470937573A	E BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90731503	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		POTENTIAL DISTRIBUTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SLAVE START SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		PRESS FIT BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CONTACT PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		WIRING SET FOR BATTERY +	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10424902	STRIP FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470937503	FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SAFETY FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		1 SET END CAPS AND LOCK CYLINDER FOR CHARGING SOCKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	-	E BOX	E BOX SEE REF.12- 13 DOES NOT INCLUDE REF. :- 23	-	-	Enquire
2	8K0937517	JUMP START BOX ASSEMBLY	8K0937517 JUMP START BOX ASSEMBLY	-	1	Enquire
3	470937155	RETAINING BRACKET	470937155 RETAINING BRACKET	-	1	Enquire
4	-	HARNESS FOR ENGINE COMPARTMENT	HARNESS FOR ENGINE COMPARTMENT SEE ILLUSTRATION :- 905-010	-	-	Enquire
5	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	N91096601 HEXAGON SOCKET FLAT HEAD BOLT M6X12	-	1	Enquire
6	N91055501	OVAL HEXAGON SOCKET HEAD BOLT	N91055501 OVAL HEXAGON SOCKET HEAD BOLT M5X12	-	1	Enquire
7	470937115	HEAT INSULATION	470937115 HEAT INSULATION	-	1	Enquire
8	N10470703	ROUND HD. SCREW	N10470703 ROUND HD. SCREW M6X50	-	2	Enquire
9	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT M6X16	-	1	Enquire
10	N90450201	PROTECTIVE CAP	N90450201 PROTECTIVE CAP 10X12	-	1	Enquire
11	470937576A	COVER	470937576A COVER	-	1	Enquire
12	470937587A	COVER	470937587A COVER	-	1	Enquire
13	470937573A	E BOX	470937573A E BOX LOWER	-	1	Enquire
14	N90731503	HEXAGON SOCKET HEAD PANEL BOLT	N90731503 HEXAGON SOCKET HEAD PANEL BOLT 6X25	-	5	Enquire
15	-	POTENTIAL DISTRIBUTOR	POTENTIAL DISTRIBUTOR CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 2	-	-	Enquire
16	-	SLAVE START SOCKET	SLAVE START SOCKET CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 2	-	-	Enquire
17	-	PRESS FIT BOLT	PRESS FIT BOLT CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 2	-	-	Enquire
18	-	COVER	COVER CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 2	-	-	Enquire
19	-	CONTACT PIECE	CONTACT PIECE CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 2	-	-	Enquire
20	-	WIRING SET FOR BATTERY +	WIRING SET FOR BATTERY + CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 2	-	-	Enquire
22	N10424902	STRIP FUSE	N10424902 STRIP FUSE 40A	-	2	Enquire
23	470937503	FUSE HOLDER	470937503 FUSE HOLDER	-	1	Enquire
24	-	SAFETY FUSE	SAFETY FUSE NOT FOR THIS VERSION-100A -BLUE-	-	-	Enquire
25	-	1 SET END CAPS AND LOCK CYLINDER FOR CHARGING SOCKET	1 SET END CAPS AND LOCK CYLINDER FOR CHARGING SOCKET ONLY FOR MY18 OF AVENTADOR S, S ROADSTER, CENTENARIO AND CENTENARIO ROADSTER	-	-	Enquire
