Lamborghini Aventador LP770 SVJ Coupe - ELECTRICS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
476971138CD HARNESS,VEHICLE CENTRALE G.SX $10,819.85 To Order
476971138CF HARNESS,VEHICLE CENTRALE G.SX $11,948.89 To Order
476971138BE HARNESS,VEHICLE CENTRALE G.SX $11,155.90 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
7M971627C WIRING HARNESS FOR INJECTORS $508.06 To Order
Photo Part No Description Price (each) Stock
7M971627D WIRING HARNESS FOR INJECTORS $295.71 To Order
Photo Part No Description Price (each) Stock
470971095D HARNESS,BUMPER AIUTO PARCHEGGIO $68.69 To Order
470971095B WIRING SET FOR BUMPER $85.62 To Order
Photo Part No Description Price (each) Stock
470971104H WIRING SET FOR BUMPER $112.37 To Order
470971104J WIRING SET FOR BUMPER $452.97 To Order
Photo Part No Description Price (each) Stock
470971123A WIRING HARNESS: FRONT $11.83 To Order
Photo Part No Description Price (each) Stock
WIRE SET Enquire To Order
Photo Part No Description Price (each) Stock
470820536 BRACKET $47.26 To Order
Photo Part No Description Price (each) Stock
470814593A CARRIER $829.32 To Order
Photo Part No Description Price (each) Stock
N10653201 HEX COLLARED BOLT $1.96 To Order
Photo Part No Description Price (each) Stock
470971303 BRACKET $18.41 To Order
Photo Part No Description Price (each) Stock
8Z0820535 EXTERNAL TEMPERATURE SENSOR $39.73 To Order
Photo Part No Description Price (each) Stock
470412125A ATTACHMENT BARS $21.05 To Order
Photo Part No Description Price (each) Stock
1C0971845 BRACKET $9.08 To Order
Photo Part No Description Price (each) Stock
3D0971838K CABLE TIES WITH BRACKET $1.23 To Order
Photo Part No Description Price (each) Stock
470971817A WIRING $43.81 To Order
Photo Part No Description Price (each) Stock
N10560801 BUNGS $0.88 To Order
Photo Part No Description Price (each) Stock
RELAY Enquire To Order
Photo Part No Description Price (each) Stock
RELAY Enquire To Order
Photo Part No Description Price (each) Stock
RELAY Enquire To Order
Photo Part No Description Price (each) Stock
RELAY Enquire To Order
Photo Part No Description Price (each) Stock
5M0971838 CABLE TIE WITH TERMINAL SOCKET $2.84 To Order
Photo Part No Description Price (each) Stock
5M0971838A CABLE TIE WITH TERMINAL SOCKET $2.84 To Order
Photo Part No Description Price (each) Stock
823881763 EDGE PROTECTION $3.64 To Order
Photo Part No Description Price (each) Stock
470971171 ADAPTER WIRING SET FOR HIGH MOUNTED BRAKE LIGHT $38.99 To Order
View All

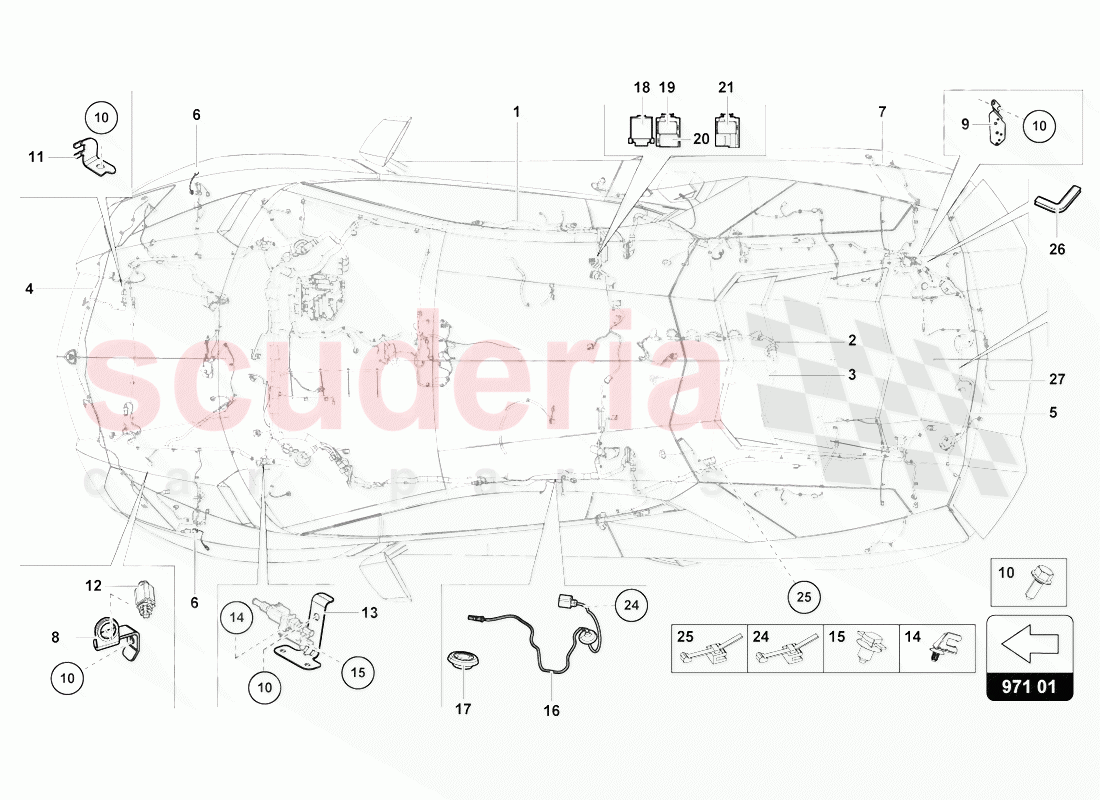

ELECTRICS of Lamborghini Lamborghini Aventador LP770 SVJ Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 476971138CD
HARNESS,VEHICLE CENTRALE G.SX
WITHOUT TIRE PRESSURE MONITORING - WITHOUT PARKING SENSORS - WITHOUT OR BASIC LOUDSPEAKERS- LHD 		$10,819.85 1
1 476971138CF
HARNESS,VEHICLE CENTRALE G.SX
WITH TIRE PRESSURE MONITOR - WITHOUT PARKING SENSORS - WITHOUT/ BASIC SPEAKERS- LHD 		$11,948.89 1
1 476971138BE
HARNESS,VEHICLE CENTRALE G.SX
WITHOUT TIRE PRESSURE MONITORING - WITHOUT PARKING SENSORS - PREMIUM LOUDSPEAKERS- LHD 		$11,155.90 1
1 476971138BG
HARNESS,VEHICLE CENTRALE G.SX
WITH TIRE PRESSURE MONITOR - WITHOUT PARKING SENSORS - PREMIUM SPEAKERS- LHD 		$12,284.91 1
1 476971138CG
HARNESS,VEHICLE CENTRALE G.SX
WITH TIRE PRESSURE MONITOR - WITH RVC AND PARKING SENSORS - WITHOUT/ BASIC SPEAKERS- LHD 		$13,313.13 1
1 476971138CE
HARNESS,VEHICLE CENTRALE G.SX
WITHOUT TIRE PRESSURE MONITORING - WIRTH RVC AND PARKING SENSORS - WITHOUT/ BASIC SPEAKERS- LHD 		$12,069.86 1
1 476971138BF
HARNESS,VEHICLE CENTRALE G.SX
WITHOUT TIRE PRESSURE MONITORING - WIRTH RVC AND PARKING SENSORS - PREMIUM SPEAKERS- LHD 		$12,358.85 1
1 476971138BH
CENTRAL WIRING SET
WITH TIRE PRESSURE MONITOR - WITH RVC AND PARKING SENSORS - PREMIUM SPEAKERS- LHD 		$13,655.87 1
2 7M971627C
WIRING HARNESS FOR INJECTORS 		$508.06 1
3 7M971627D
WIRING HARNESS FOR INJECTORS 		$295.71 1
4 470971095D
HARNESS,BUMPER AIUTO PARCHEGGIO
WITHOUT HOMELINK-FRONT 		$68.69 1
4 470971095B
WIRING SET FOR BUMPER
WITH HOMELINK-FRONT 		$85.62 1
5 470971104H
WIRING SET FOR BUMPER
WITHOUT PARKING SENSORS-REAR 		$112.37 1
5 470971104J
WIRING SET FOR BUMPER
WITH RVC AND PARKING SENSORS-REAR 		$452.97 1
6 470971123A
WIRING HARNESS: FRONT 		$11.83 1
7 WIRE SET
VALID FOR USA/CANADA MARKETS-REAR 		- - Enquire
8 470820536
BRACKET 		$47.26 1
9 470814593A
CARRIER 		$829.32 1
10 N10653201
HEX COLLARED BOLT
M6X16 		$1.96 4
11 470971303
BRACKET 		$18.41 1
12 8Z0820535
EXTERNAL TEMPERATURE SENSOR 		$39.73 1
13 470412125A
ATTACHMENT BARS 		$21.05 2
14 1C0971845
BRACKET 		$9.08 1
15 3D0971838K
CABLE TIES WITH BRACKET 		$1.23 (83% off) 1
16 470971817A
WIRING 		$43.81 -
17 N10560801
BUNGS
ORDER IN PLACE OF REF. 16 		$0.88 (87.9% off) 1
18 RELAY
RELAY DC MOTOR 		- - Enquire
19 RELAY
RELAY EV1 		- - Enquire
20 RELAY
RELAY EV2 		- - Enquire
21 RELAY
RELAY EV3 		- - Enquire
22 5M0971838
CABLE TIE WITH TERMINAL SOCKET
4,6X200MM 		$2.84 2
23 281957787C
RETAINER, SWIVEL 		$2.15 1
24 5M0971838
CABLE TIE WITH TERMINAL SOCKET
4,6X200MM 		$2.84 2
25 5M0971838A
CABLE TIE WITH TERMINAL SOCKET
4,6X200MM HORIZONTAL 1-3MM 90 DEGREE ANGLE 		$2.84 2
26 823881763
EDGE PROTECTION 		$3.64 1
27 470971171
ADAPTER WIRING SET FOR HIGH MOUNTED BRAKE LIGHT 		$38.99 -
