Trim Panel For Lower Frame Section of Lamborghini Lamborghini Aventador LP740 S

View All

Lamborghini Aventador LP740 S - Trim Panel For Lower Frame Section

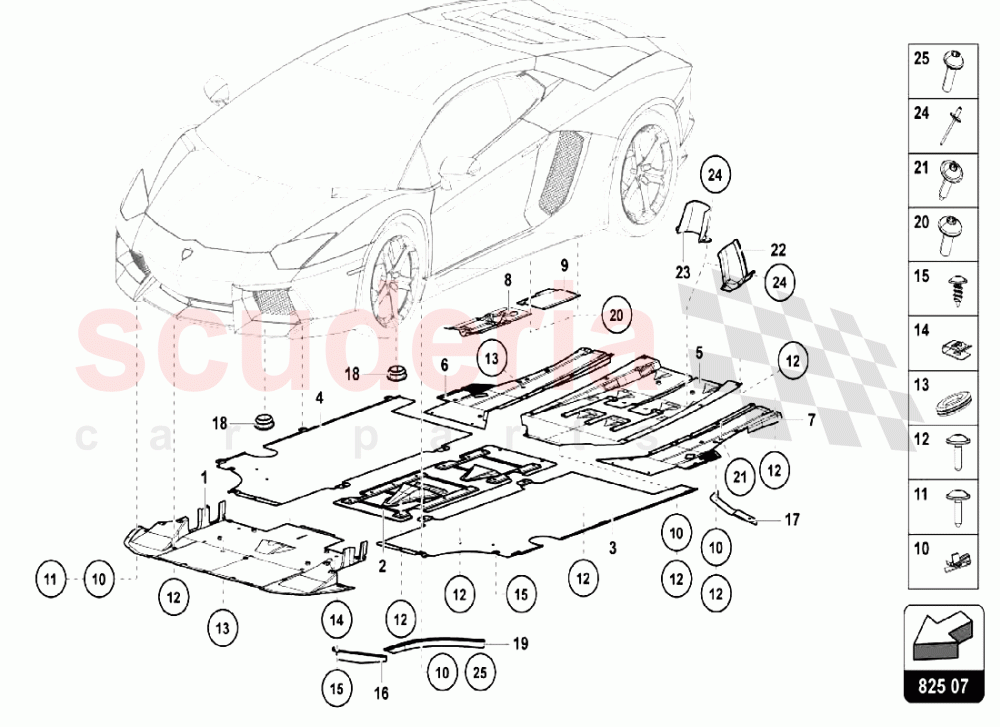

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470825189F	UNDERBODY TRIM	470825189F UNDERBODY TRIM	$7,788.96	1
002	470803969C	UNDERBODY TRIM	470803969C UNDERBODY TRIM	$508.06	1
003	470825207A	Underbody Trim (left)	470825207A Underbody Trim (left)	$3,064.52	1
004	470825208A	Underbody Trim (right)	470825208A Underbody Trim (right)	$3,057.78	1
005	470825210D	Underbody Trim (rear Center)	470825210D Underbody Trim (rear Center)	$10,241.91	1
006	470825212D	Underbody Trim (right Rear)	470825212D Underbody Trim (right Rear)	$2,970.42	1
007	470825211D	Underbody Trim (left Rear)	470825211D Underbody Trim (left Rear)	$2,977.15	1
008	470803980C	Tunnel Trim (front, Inner)	470803980C Tunnel Trim (front, Inner)	$486.56	1
009	470803962A	Tunnel Trim (rear, Inner)	470803962A Tunnel Trim (rear, Inner)	$483.88	1
010	N90688703	SPEED NUT IN STOCK	N90688703 SPEED NUT IN STOCK	$1.22	24
011	N90737804	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90737804 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$0.74 MSRP: ~~7.31~~ (89.9% off)	10
012	N91188301	HEXAGON SOCKET HEAD BOLT IN STOCK	N91188301 HEXAGON SOCKET HEAD BOLT IN STOCK	$1.38 MSRP: ~~7.23~~ (80.9% off)	54
013	400821190	GROMMET IN STOCK	400821190 GROMMET IN STOCK	$2.50	4
014	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$0.53	6
015	N90986803	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.01	8
016	470853833A	FRONT SPOILER	470853833A FRONT SPOILER	$131.99	1
016	470853834A	AVENTADOR FRONT SPOILER IN STOCK	470853834A AVENTADOR FRONT SPOILER IN STOCK	$136.33	1
017	470853887A	SPOILER IN STOCK	470853887A SPOILER IN STOCK	$156.58	1
017	470853888A	SPOILER	470853888A SPOILER	$156.58	1
018	470804998	BUNGS	470804998 BUNGS	$12.93	4
019	470825294	Spoiler (right)	470825294 Spoiler (right)	$299.06	1
019	470825292	Spoiler (left)	470825292 Spoiler (left)	$51.01	1
020	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.98	10
021	N90698605	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90698605 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.53 MSRP: ~~7.35~~ (79.2% off)	9
022	470825369	AIR DUCT CARDBOARD	470825369 AIR DUCT CARDBOARD	$59.93	1
023	470825487	AIR DUCT CARDBOARD	470825487 AIR DUCT CARDBOARD	$38.30	1
024	N91123101	BELT RIVET IN STOCK	N91123101 BELT RIVET IN STOCK	$0.76 MSRP: ~~7.28~~ (89.6% off)	12
025	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.68	2
