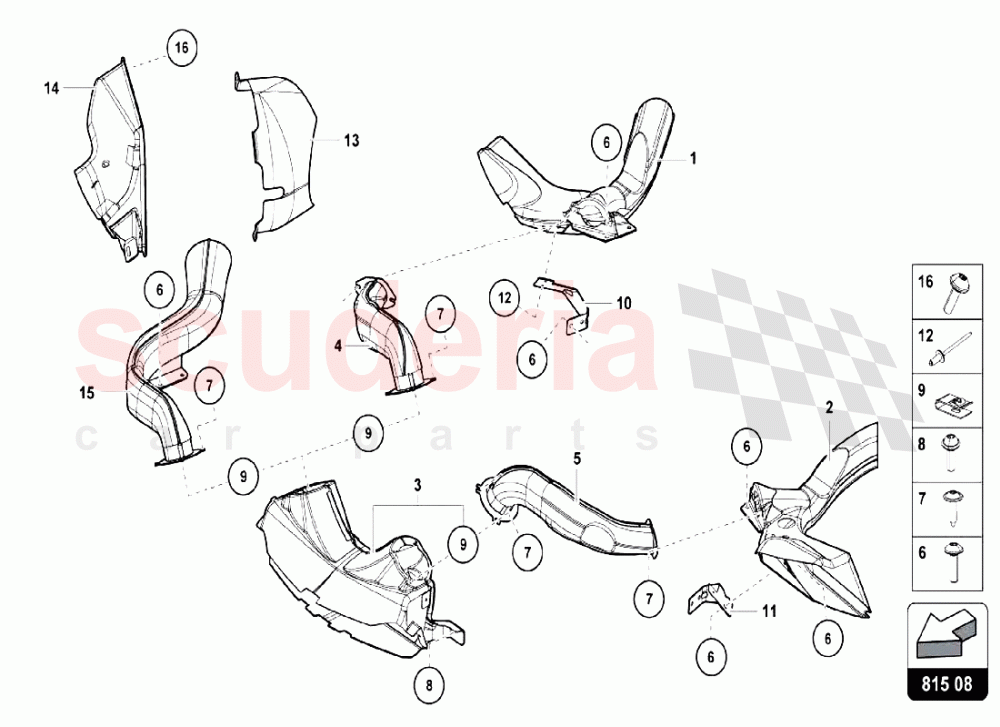

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470805825E	AIR DUCT CARDBOARD	470805825E AIR DUCT CARDBOARD	$634.43	1
002	470805826E	AIR DUCT CARDBOARD	470805826E AIR DUCT CARDBOARD	$1,072.57	1
003	470805342C	AIR DUCT CARDBOARD	470805342C AIR DUCT CARDBOARD	$662.62	1
005	470805767A	Air Duct Cardboard (left Front)	470805767A Air Duct Cardboard (left Front)	$560.48	1
006	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$0.76 MSRP: ~~7.27~~ (89.5% off)	4
007	N90698605	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90698605 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.53 MSRP: ~~7.35~~ (79.2% off)	4
008	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	8
009	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$0.53	2
010	470806423A	ARM	470806423A ARM	$23.34	1
011	470806424A	Arm (front)	470806424A Arm (front)	$23.34	1
013	470805648	AIR DUCT CARDBOARD	470805648 AIR DUCT CARDBOARD	$204.32	1
014	470805188B	AIR DUCT CARDBOARD	470805188B AIR DUCT CARDBOARD	$772.85	1
015	470805490A	AIR DUCT CARDBOARD	470805490A AIR DUCT CARDBOARD	$209.68	1
016	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.68	1
