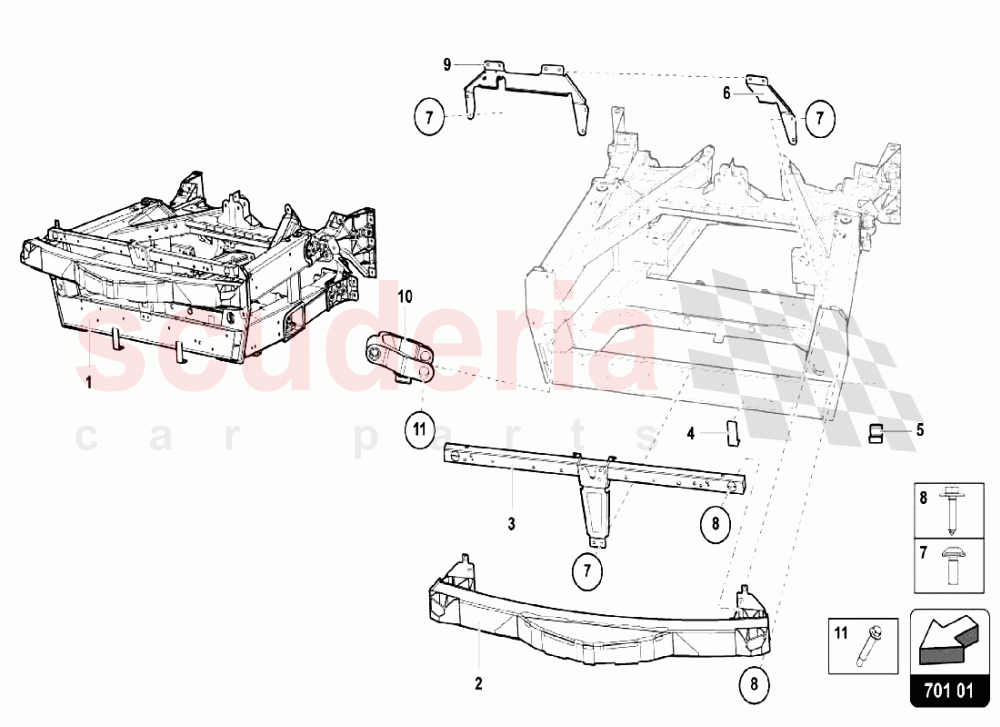

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470805011E	TRIM FRAME FRONT PART	470805011E TRIM FRAME FRONT PART	$23,763.37	1
001	470805011D	Trim Frame Front Part (contact Your Area Manager Until Vin Zhwur1zd2ela 02464 Replace The Rif.2 Tav. 807-020)	470805011D Trim Frame Front Part (contact Your Area Manager Until Vin Zhwur1zd2ela 02464 Replace The Rif.2 Tav. 807-020)	$21,733.81	1
002	470807051D	CROSS MEMBER	470807051D CROSS MEMBER	$5,793.00	1
003	470805563C	CROSS MEMBER	470805563C CROSS MEMBER	$1,814.52	1
004	470805364B	ARM	470805364B ARM	$715.07	2
005	470805614B	ARM	470805614B ARM	$780.92	2
007	N90900401	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$1.25	10
008	N90862302	HEXAGON HEAD BOLT (COMBI)	N90862302 HEXAGON HEAD BOLT (COMBI)	$6.20	2
009	470805313D	BAFFLE PLATE	470805313D BAFFLE PLATE	$98.00	1
